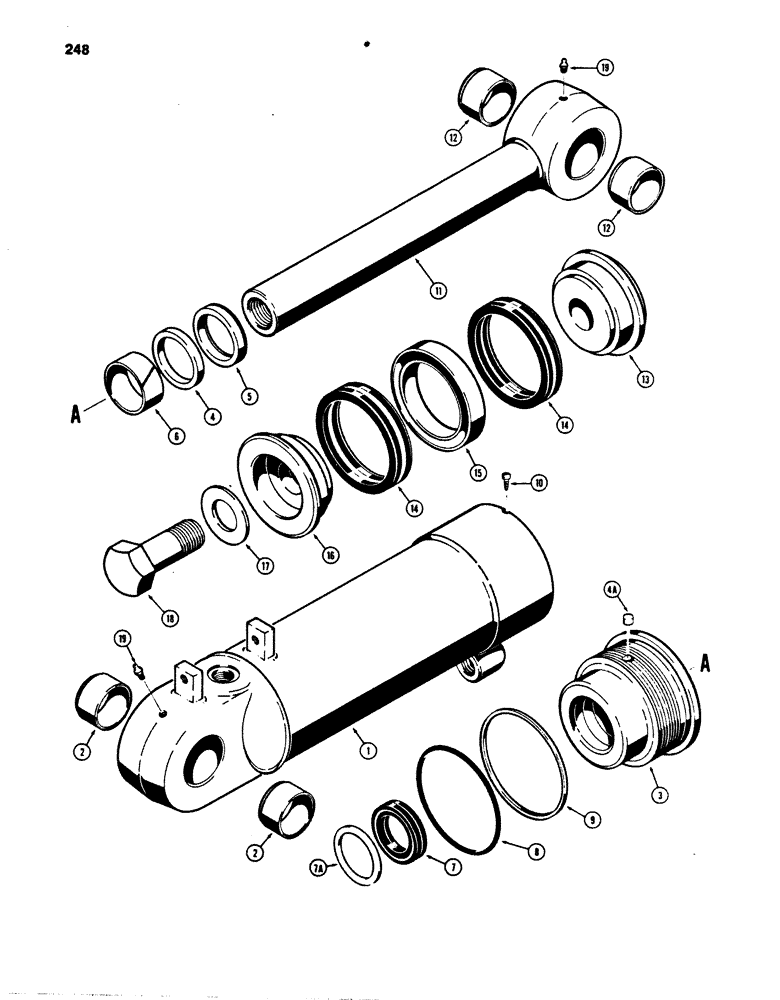

Запчасти Case 850B (248) - G35480 DOZER ANGLE CYLINDERS, USED ON MODELS W/R36794 LEVELING BEAM, SEE PAGE 339 FOR IDENTIFICATION (07) - HYDRAULIC SYSTEM

G35480

CYLINDER

ASSEMBLY - angle, 4-1/2" (114 mm) ID x 8-19/32" (218mm) stroke, Includes: Ref.#1 - 19

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G35481

TUBE

- cylinder, Includes: Ref.#2

1шт.

2

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube

2шт.

G34397

GLAND

ASSEMBLY - cylinder, Includes: Ref.#3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of Seal Kit P/N G105525

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G105525

1шт.

7

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105525

1шт.

Seal - rod, service option - severe heat or cold

1шт.

7a

G102647

SEAL

- piston rod, narrow, used in addition to Ref.#7 in some glands

1шт.

Part of Seal Kit P/N G105525

1шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105525

1шт.

9

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105525

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

11

G35487

ROD

- piston, 2" (51mm) diameter, Includes: Ref.#12

1шт.

12

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

13

G33634

PISTON

- split, rod end

1шт.

14

D47205

PACKING

- cylinder

2шт.

Part of Seal Kit P/N G105525

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - wear

1шт.

16

D46931

PISTON

- split, bolt end

1шт.

17

G32351

WASHER

- hardened

1шт.

18

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105525

KIT

- seal, Includes: Ref. 5, 6, 7, 7A, 8, 9 and 14, same as G34644 kit plus Ref.#7A above

1шт.

G100778

SEAL

- rod, service option - severe heat or cold

1шт.
