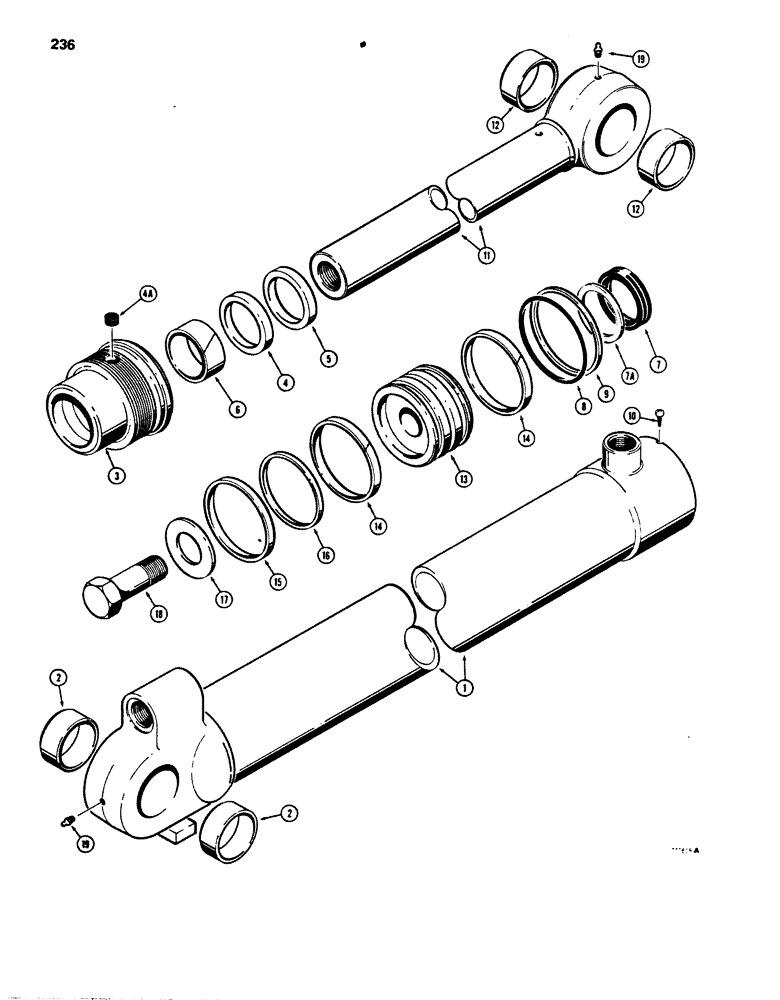

Запчасти Case 850B (236) - G101210 LOADER BUCKET CYLINDERS (07) - HYDRAULIC SYSTEM

G101210

CYLINDER

ASSEMBLY - bucket, 3-1/2" (89 mm) ID x 37-1/4" (946 mm) stroke, Includes: Ref.#1 - 19

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G101559

TUBE,45.69" L

- cylinder, Includes: Ref. #2

1шт.

2

CASD37723

BUSHING

- tube

2шт.

G34629

GLAND

ASSEMBLY - cylinder, Includes: Ref.#s3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G105546

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G105546

1шт.

7

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105546

1шт.

7a

G102647

SEAL

- piston rod, narrow, used in addition to Ref.# 7 in some glands

1шт.

Part of Seal Kit P/N G105546

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105546

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105546

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4", if used, not required when nylon plug is used

1шт.

11

G35453

ROD

- piston, 2" (51 mm) diameter, Includes: Ref. 12

1шт.

12

CASD37723

BUSHING

- rod

2шт.

13

G100692

PISTON

- cylinder

1шт.

14

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N G105546

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105546

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105546

1шт.

17

G32351

WASHER

- hardened

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4" - 14 NF x 2-1/2", G8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105546

SEAL

KIT - seal, Includes: Ref. 5, 6, 7, 7A, 8, 9, 14, 15 and 16, same as G102402 kit plus Ref.# 7A above

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.
