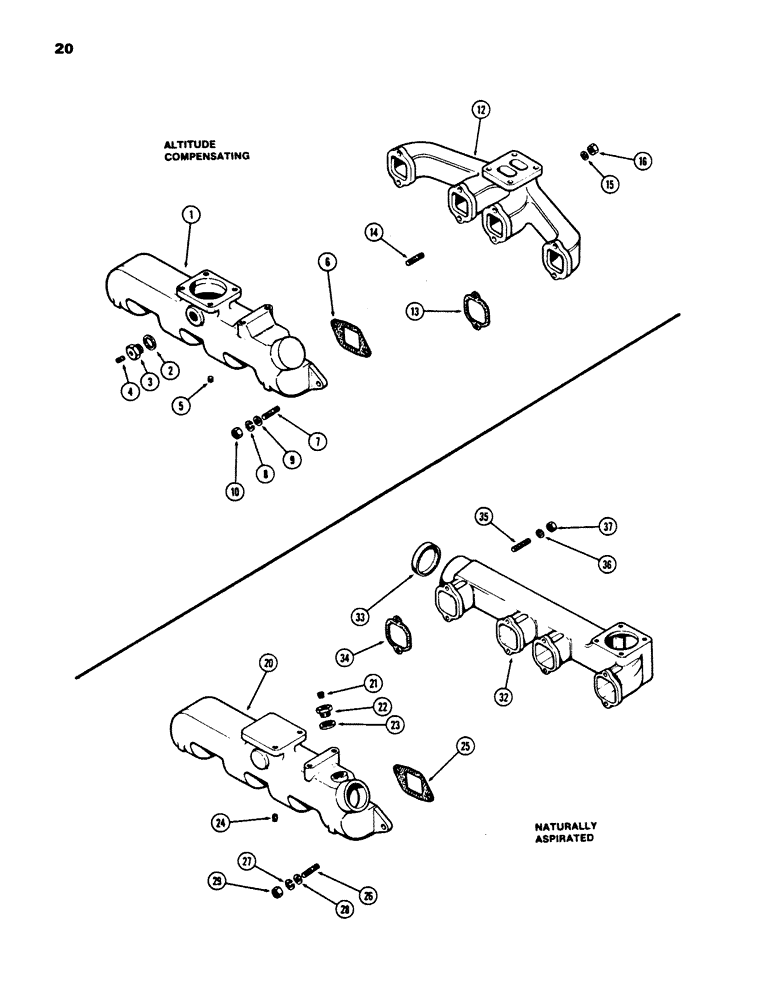

Запчасти Case 850B (020) - MANIFOLDS, 336BDT ALTITUDE COMPENSATING ENGINE (01) - ENGINE

1

A154149

MANIFOLD

ASSEMBLY - intake (replaces A140120), Includes: Ref.#2 - 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - heater hole plug

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

221-1849

PLUG

- 1/8" PT socket

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" PT, hex square head)

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A59077

STUD

- intake manifold (3/8" NC x 1-3/4")

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.5 x 20.6 x 1.6 mm)

8шт.

10

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex

8шт.

12

A61001

MANIFOLD

- exhaust

1шт.

13

A58895

GASKET

- exhaust manifold (metal faced)

4шт.

14

A59077

STUD

- exhaust manifold (3/8" NC x 1-3/4")

8шт.

15

92-6

LOCK WASHER,3/8"

8шт.

16

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf

8шт.

20

A154150

MANIFOLD

ASSEMBLY - intake (Replaces A66089), 336BD natural aspirated engine, Includes: Ref.#21 & 22

1шт.

21

221-1849

PLUG

- (1/8" PT socket), 336BD natural aspirated engine

1шт.

22

L10283

PLUG

- heater hole, 336BD natural aspirated engine

1шт.

23

A20916

MANIFOLD GASKET

GASKET - plug, 336BD natural aspirated engine

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, hex square head, 336BD natural aspirated engine

1шт.

25

A58662

MANIFOLD GASKET

- intake manifold, 336BD natural aspirated engine

4шт.

26

A59077

STUD

- intake manifold (3/8" NC x 1-3/4"), 336BD natural aspirated engine

8шт.

27

92-6

LOCK WASHER,3/8"

336BD natural aspirated engine 3/8"

8шт.

28

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.5 x 20.6 x 1.6 mm), 336BD natural aspirated engine

8шт.

29

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex, 336BD natural aspirated engine

8шт.

32

A58749

MANIFOLD

- exhaust, 336BD natural aspirated engine

1шт.

33

A58750

PLUG,Cup, 3 1/4", Stainless

- 3-1/4" (82.6 mm) cup type, 336BD natural aspirated engine

1шт.

34

A58666

MANIFOLD GASKET

- exhaust manifold (Asbestos faced), 336BD natural aspirated engine

4шт.

35

A59077

STUD

- exhaust manifold (3/8" NC x 1-3/4"), 336BD natural aspirated engine

8шт.

36

92-6

LOCK WASHER,3/8"

336BD natural aspirated engine 3/8"

8шт.

37

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf, 336BD natural aspirated engine

8шт.
