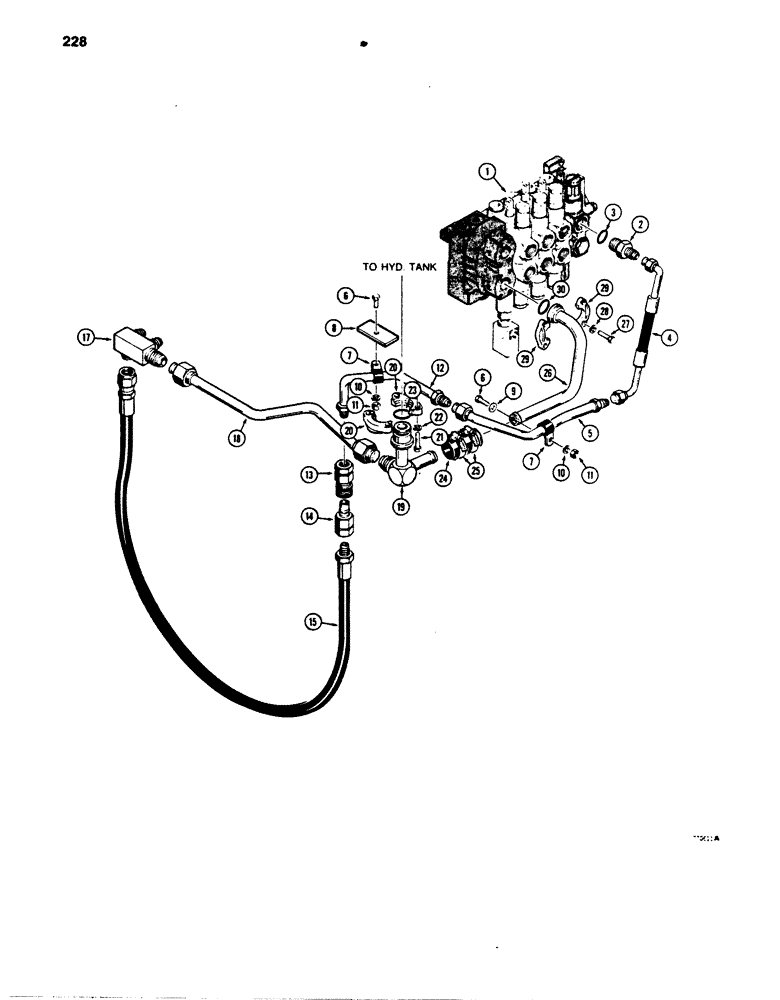

Запчасти Case 850B (228) - BACKHOE HYDRAULIC CIRCUIT, CONTROL VALVE TO BACKHOE AND RESERVOIR (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - equipment, see Figs. 268 - 274 and 280 - 286 for correct valve

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref.#3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

R36952

HOSE

- from control valve

1шт.

5

R37467

TUBE

- from control valve

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

R14668

CLAMP

- tube

2шт.

8

R35326

PLATE - clamp mounting

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

R35169

TUBE,1" OD

- to backhoe control valve

1шт.

13

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list Fig. 232

1шт.

14

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male, parts list Fig. 232

1шт.

15

L25634

FLEXIBLE HOSE

HOSE - 53" (1348 mm) long

1шт.

17

R35237

MANIFOLD

- fitting

1шт.

18

R35167

TUBE ASSY.

TUBE - from manifold

1шт.

19

R35286

TUBE,1.25" OD x 4.12, 3.99" L

TEE - to hydraulic reservoir and control valve

1шт.

20

R27612

CLAMP

- tee, to hydraulic reservoir

2шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- tee

1шт.

24

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

25

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

26

R35206

TUBE,1.25" OD

- to control valve

1шт.

27

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

28

92-7

LOCK WASHER,7/16"

4шт.

29

A12301

CLAMP,Half

CLAMP - tube, to control valve

2шт.

30

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube

1шт.
