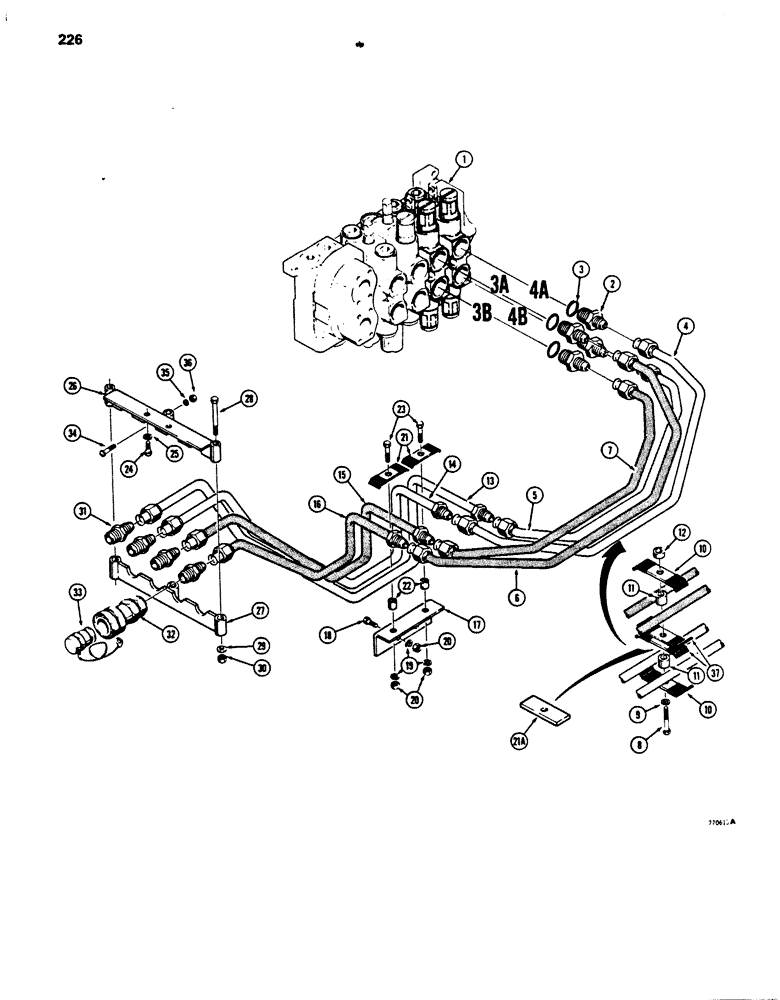

Запчасти Case 850B (226) - DUAL PULL BEHIND HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - see Figs. 268 - 274, 280, 282, or 288 for correct valve

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Includes: Ref.#3

4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

R35536

TUBE - port 4A

1шт.

5

R35540

TUBE - port 4B

1шт.

6

R35528

TUBE - port 3A

1шт.

7

R35532

TUBE - port 3B

1шт.

8

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2"

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

R25782

CLAMP

- tubes

2шт.

11

F41806

BUSHING

SPACER - long

2шт.

12

B18072

X,3/8" Pipe x 3/8"

SPACER - short

1шт.

13

R35542

TUBE - 4B port

1шт.

14

R35538

TUBE - 4A port

1шт.

15

R35534

TUBE - 3B port

1шт.

16

R35530

TUBE - 3A port

1шт.

17

R36378

RING, SNAP

BRACKET - clamp mounting

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

21

R25782

CLAMP

- tubes

2шт.

21a

R40279

PLATE - clamp mounting

1шт.

22

F41806

BUSHING

SPACER - clamp

2шт.

23

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

R26174

CLAMP

BRACKET - upper, tubes

1шт.

27

D39533

CLAMP

BRACKET - lower, tubes

1шт.

28

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex head, 5/16" - 18 NC x 3-3/4"

3шт.

29

195-21

WASHER,5/16"

- flat, 5/16"

3шт.

30

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

31

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight

4шт.

32

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list Fig. 232

4шт.

33

D39924

PLUG

- dust

1шт.

34

169-80

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

- slotted, no. 8-32 NC x 3/4"

1шт.

35

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

36

129-6

NUT,#8-32

1шт.

37

R25782

CLAMP

- tubes, no longer used, order one R40279 plate

2шт.
