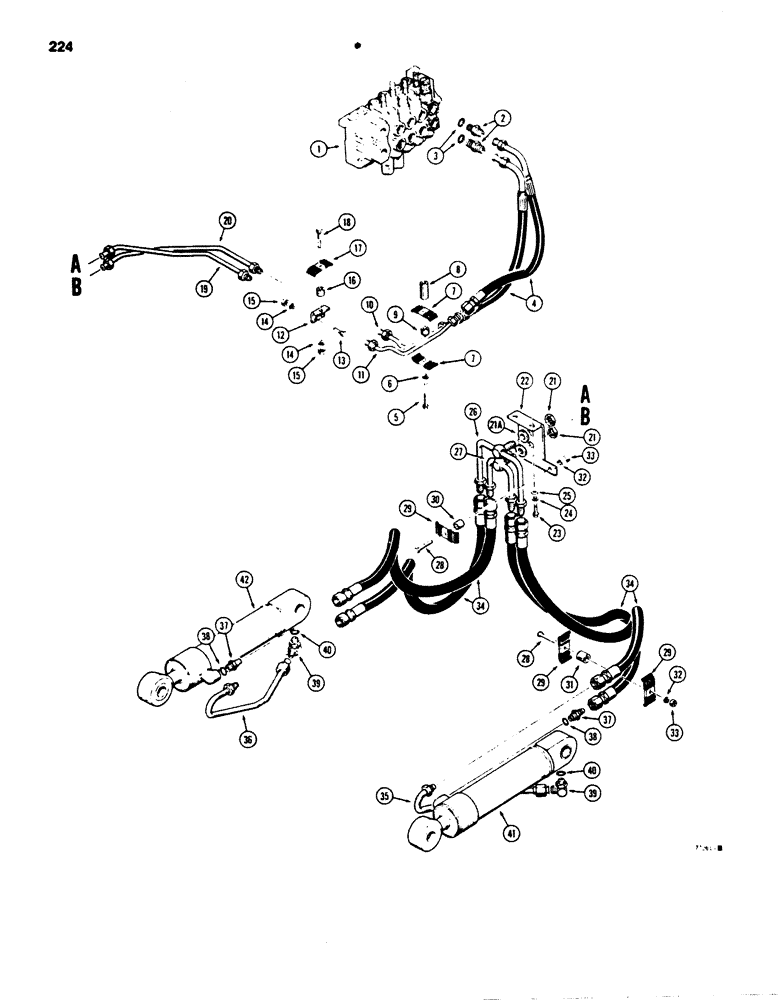

Запчасти Case 850B (224) - RIPPER HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - see Figs. 268-274, 280, 282, or 288 for correct valve

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Includes: Ref.#3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

R38890

HOSE

- at control valve

2шт.

5

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

R36022

CLAMP

- tubes

2шт.

8

R29848

BUSHING

SPACER - long, 15-16" (24 mm) long

1шт.

9

T25073

BUSHING

SPACER - short, 5/8" (16 mm) long

1шт.

10

R38888

TUBE,0.625" OD

- port B

1шт.

11

R38886

TUBE,0.625" OD

- port A

1шт.

12

R36023

BRACKET

- tube support

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

16

T25073

BUSHING

SPACER - clamp, 5/8" (16 mm) long

1шт.

17

R36022

CLAMP

- tubes

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

19

R35511

TUBE

- port A

1шт.

20

R35509

TUBE

- port B

1шт.

21

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

21a

195-549

WASHER,7/8", SAE

- flat, 7/8", plated

2шт.

22

R35545

BRACKET

- manifold tubes

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

26

R35549

TUBE,0.625" OD x 6.2, 3.75" L

- port A

1шт.

27

R35551

TUBE

- port B

1шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

4шт.

29

D40236

CLAMP

-, Serial Range: tubes-bracket

6шт.

30

T25073

BUSHING

SPACER - clamp, 5/8" (16 mm) long

2шт.

31

T38864

BUSHING

SPACER - clamp, 7/8" (22 mm) long

2шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

34

F93300

HOSE

- at cylinders, 29" (737 mm) long

4шт.

35

R38348

TUBE,0.625" OD

- right- hand, closed end of cylinder

1шт.

36

R38350

TUBE,0.625" OD

- left-hand, closed end of cylinder

1шт.

37

NLS

NO LONGER SERVICED

RESTRICTOR - straight, Includes: Ref.#38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- restrictor

1шт.

39

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref.#40

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

41

G101214

CYLINDER ASSY.

CYLINDER - right-hand, parts list Fig. 252

1шт.

42

G101215

CYLINDER ASSY.

CYLINDER - left-hand, parts list Fig. 252

1шт.
