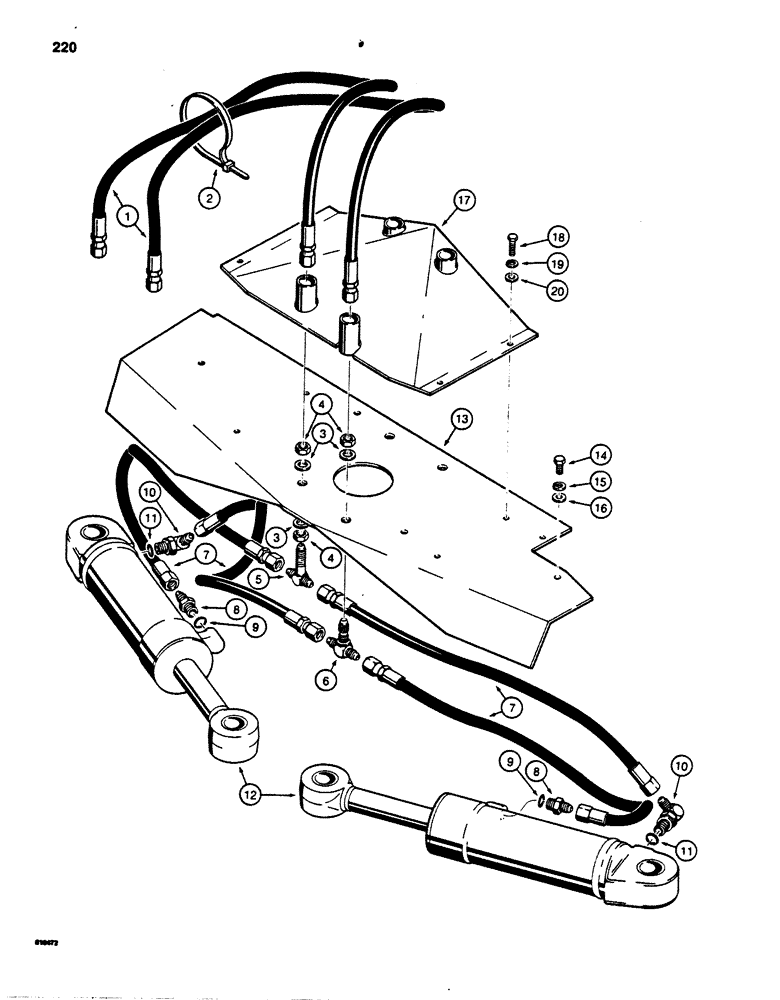

Запчасти Case 850B (220) - *DOZER ANGLE HYDRAULIC CIRCUIT, GRILLE TO CYLINDERS (07) - HYDRAULIC SYSTEM

1

R34010

HOSE

- to leveling beams, 50" (1270 mm) long

2шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - dozer angle and tilt hoses

1шт.

3

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

3шт.

4

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

3шт.

5

R28969

FITTING

TEE - bulkhead, 3/4" - 16 NF

1шт.

6

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, right-hand

1шт.

7

W11468

HOSE

- to cylinders, 29" (737 mm) long

4шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, Incl. Ref 9 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref.#11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

12

G103467

CYLINDER ASSY.

CYLINDER - angle, parts list Fig. 250

2шт.

13

R42460

GUARD

- cylinders

1шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

195-33

WASHER,1/2"

- flat 1/2"

4шт.

17

R44334

GUARD

- hoses

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

95-6

WASHER,3/8"

- flat, 3/8"

4шт.
