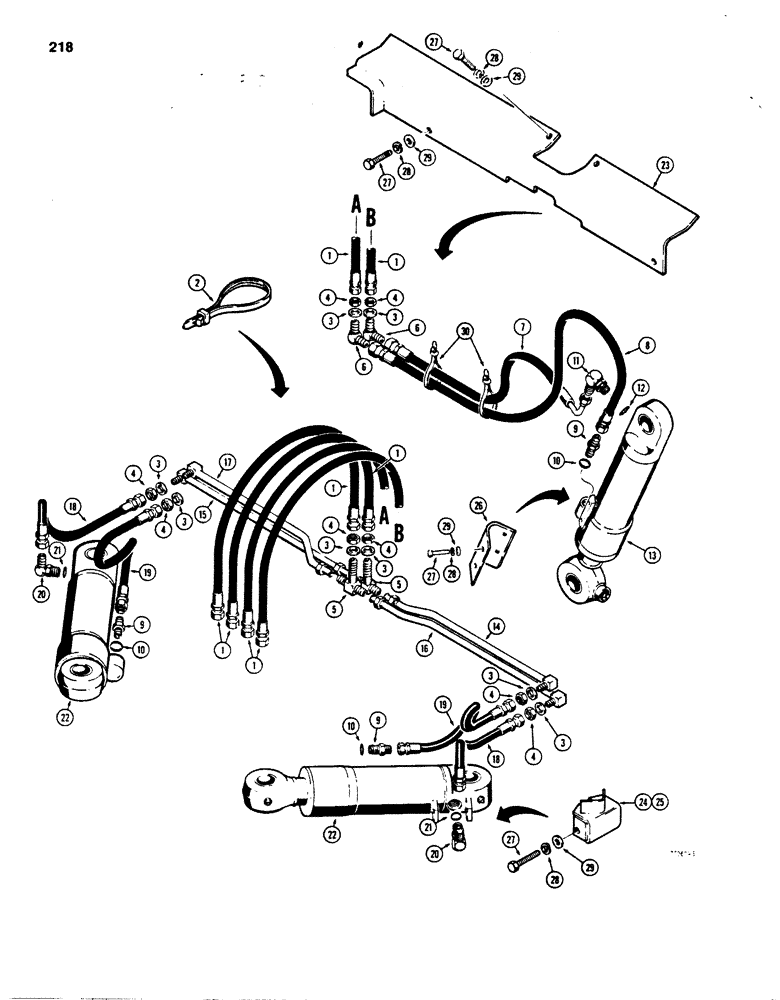

Запчасти Case 850B (218) - *ANGLE TILT DOZER HYDRAULIC CIRCUIT, GRILLE TO CYLINDERS (07) - HYDRAULIC SYSTEM

1

R34010

HOSE

- to blade, 50" (1270 mm) long

4шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hoses

1шт.

3

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

8шт.

4

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

8шт.

5

R28969

FITTING

TEE - bulkhead

2шт.

6

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

male 90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

2шт.

7

R38684

HOSE

- to closed end of tilt cylinder

1шт.

8

R38683

HOSE

- 44" (1118 mm), to rod end of tilt cylinder

1шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

3шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

11

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, Includes: Ref.#12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

13

G101216

CYLINDER

- tilt, parts list Fig. 246

1шт.

14

R32964

TUBE,0.5" OD x 23.8, 1.25" L

- right-hand, upper

1шт.

15

R32957

TUBE,0.5" OD x 24.38" L

- left- hand, lower

1шт.

16

R32962

TUBE,0.5" OD x 27, 1.25" L

- right-hand, lower

1шт.

17

R32955

TUBE,0.5" OD x 21.2, 1.77" L

- left-hand, upper

1шт.

18

R37537

HOSE

- 13" (330 mm) long, to closed end of tilt cylinder

2шт.

19

R32707

HOSE

- 22" (559 mm) long, to rod end of tilt cylinder

2шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref.#21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

22

G35480

CYLINDER

- angle, parts list Fig. 248

2шт.

23

R31937

GUARD ASSY.

GUARD - tubes

1шт.

24

R33313

GUARD - fittings, right-hand

1шт.

25

R33312

GUARD

- fittings, left-hand

1шт.

26

R31935

GUARD

- connectors, on cylinder

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

13шт.

28

92-6

LOCK WASHER,3/8"

13шт.

29

95-6

WASHER,3/8"

- flat, 3/8"

13шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hoses to tilt cylinder

2шт.
