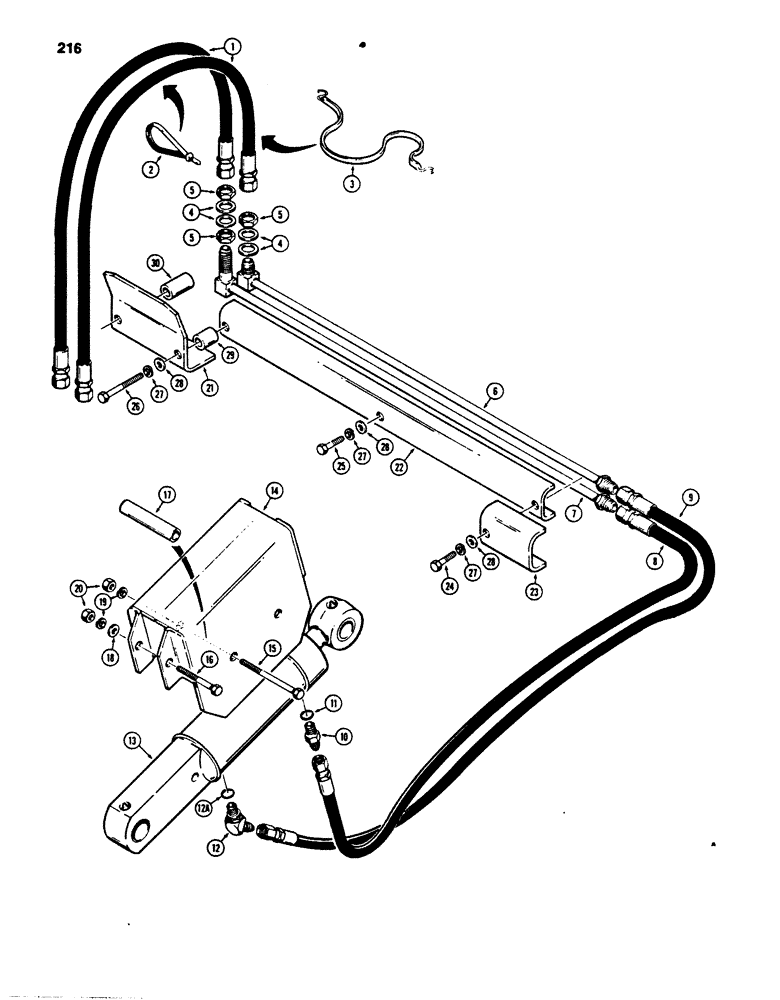

Запчасти Case 850B (216) - DOZER HYDRAULIC CIRCUIT, GRILLE TO CYLINDER, TILT DOZER MODELS (07) - HYDRAULIC SYSTEM

1

R34010

HOSE

- 50" (1270 mm) long, at grille

2шт.

2

R38237

STRAP

TIE STRAP - hoses

1шт.

3

R34737

STRAP

-, Serial Range: hoses-blade

1шт.

4

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

4шт.

5

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT - hex, bulkhead, 3/4" - 10 NC

3шт.

6

R34616

TUBE

- upper, to closed end of cylinder

1шт.

7

R34733

TUBE ASSY.

TUBE - lower, to rod end of cylinder

1шт.

8

NLS

NO LONGER SERVICED

- 19" (483 mm) long, to rod end of tilt cylinder

1шт.

9

36443

HOSE

- 25" (635 mm) long, to closed end of tilt cylinder

1шт.

10

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, Incl. Ref 11 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

12

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Includes: Ref.#12A

1шт.

12a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

13

G101219

CYLINDER

- tilt, parts list Fig. 244

1шт.

14

R35096

GUARD - cylinder

1шт.

15

13-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex head, 1/2" - 13 NC x 5-3/4"

2шт.

16

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

17

R35099

SPACER - guard mounting

2шт.

18

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

19

92-8

LOCK WASHER,1/2"

3шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

21

R34619

GUARD - fittings

1шт.

22

R34618

GUARD - tubes

1шт.

23

R38245

GUARD - extension

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

26

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

2шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

29

R34620

SPACER

- short

1шт.

30

R34621

SPACER - long

1шт.
