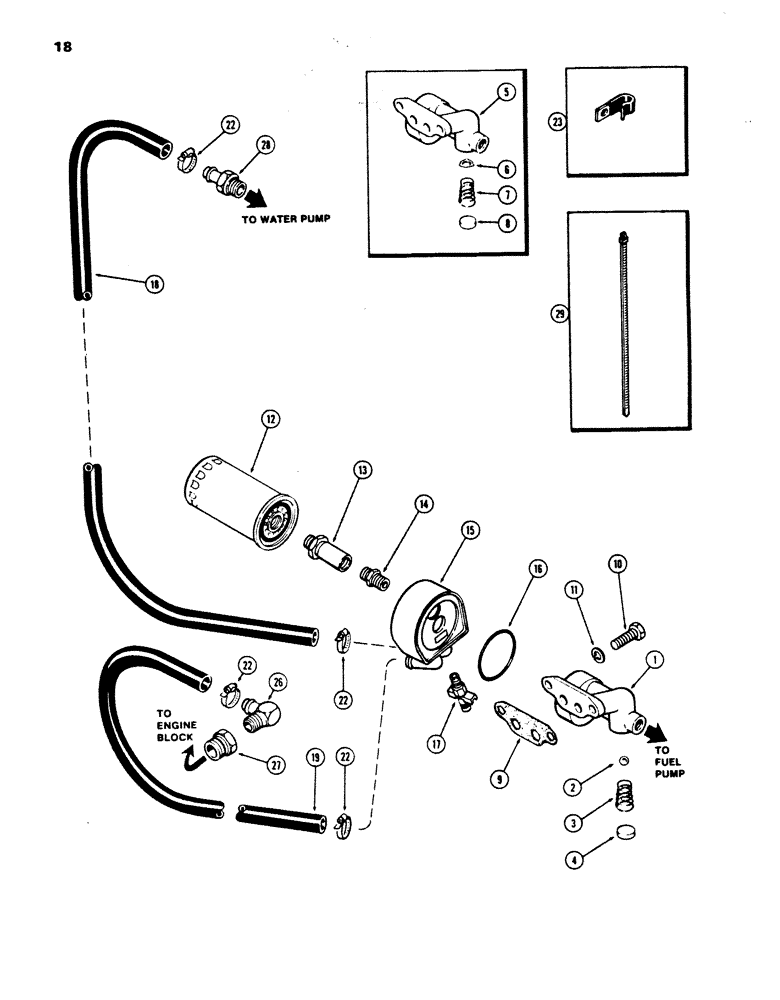

Запчасти Case 850B (018) - OIL FILTER AND COOLER, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

1

A155956

BASE

ASSEMBLY - oil filter and cooler, Includes: Ref.# 2 - 4

1шт.

2

211-15

BALL,5/8" Dia

- relief valve, 5/8" (15.9 mm) dia steel

1шт.

3

A155953

SPRING

- relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve, 1" (25.4 mm) cup type

1шт.

5

A58752

BASE

ASSEMBLY - oil filter and cooler (Order A155956), Includes: Ref.#6-8

1шт.

6

A58754

VALVE

- relief

1шт.

7

A58755

FILTER

SPRING - relief valve

1шт.

8

41-1016

PLUG,Cup, 1"

- relief valve, 1" (25.4 mm) cup type

1шт.

9

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Base to block Hex, 1/2"-13 x 1 3/4", G5

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

A44081

ENGINE OIL FILTER

FILTER - oil

1шт.

13

A66992

ADAPTER

- to filter (1-12 NF male end and 3/4-16 NF female end)

1шт.

14

A58757

ADAPTER

- to cooler (3/4 - 16 NF and 3/4" - 10 NC male ends)

1шт.

15

A66295

COOLER

- oil

1шт.

16

A153806

SEALING RING

- oil cooler to base (Replaces A66410)

1шт.

17

217-107

VALVE

DRAINCOCK - cooler (discard 1/8" pipe plug in cooler)

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 47" (1 193.8 mm) long (Order A42610)

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 25" (635 mm) long (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1" OD x 50 ft (15.9 mm ID x 25.4 mm OD x 15.2 m) (Cut to length required)

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.3 to 27 mm)

4шт.

23

A59718

CLAMP

- hose

2шт.

26

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (90 degree)

1шт.

27

221-60

TUBE

REDUCER - (in block), Serial Range: (3/4"-1/2")

1шт.

28

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (straight) (in water pump)

1шт.

29

A160890

STRAP

- nylon, hose harness

1шт.
