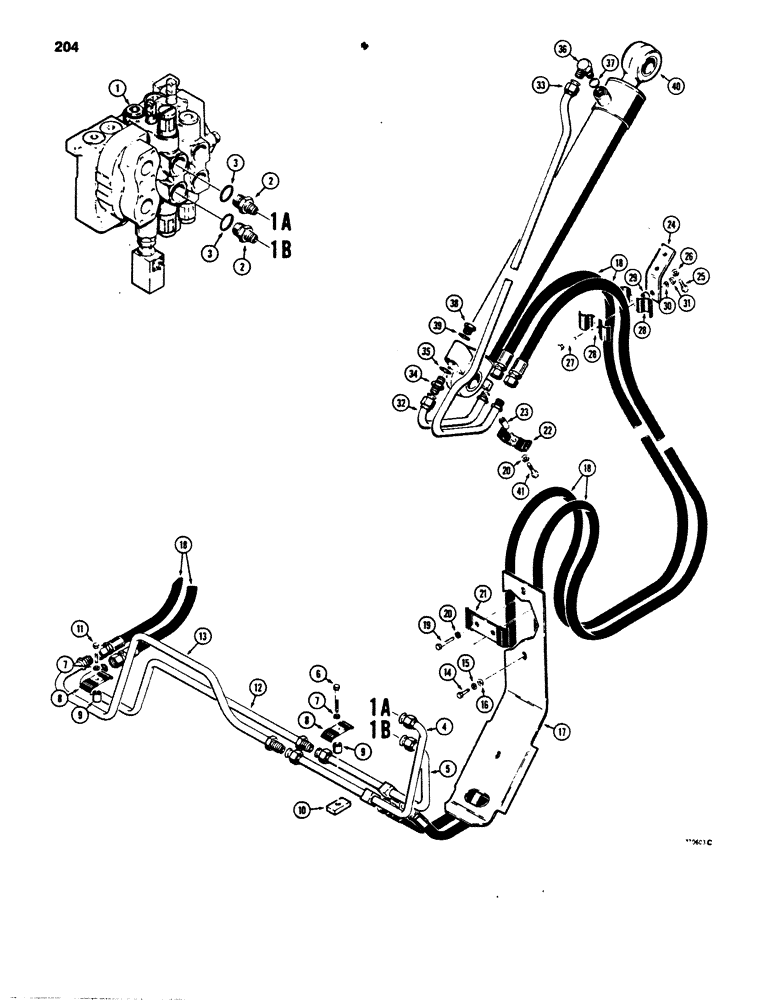

Запчасти Case 850B (204) - LOADER BUCKET HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - see Fig. 266 - 274 for correct valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref.#3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

R34912

TUBE,1" OD

- at valve, port 1A, upper

1шт.

5

R35884

TUBE,1" OD

- at valve, port 1B, lower

1шт.

6

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

R25782

CLAMP

- tubes

2шт.

9

R29844

SPACER,3/8" Pipe x 11/16"

- clamp

2шт.

10

D55170

NOZZLE HOLDER

SPACER - flat

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

12

R34920

TUBE,0.75" OD

- lower, to rod end of cylinder

1шт.

13

R34918

TUBE,0.75" OD

- upper, to closed end of cylinder

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

195-25

WASHER,3/8"

- flat, 3/8"

6шт.

17

R33364

GUARD

- bucket hoses

2шт.

18

R34917

HOSE

- 118" (2997 mm) long

4шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

4шт.

20

92-6

LOCK WASHER,3/8"

6шт.

21

R35059

CLAMP

- hoses, under guard

2шт.

22

R25782

CLAMP

- tubes, at cylinder

2шт.

23

R29844

SPACER,3/8" Pipe x 11/16"

- tube clamps

2шт.

24

R36479

BRACKET

- clamp mounting, hose

2шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

28

R36483

CLAMP

- hoses

4шт.

29

B18083

BUSHING

SPACER - clamp

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

32

R34475

TUBE,0.75" OD

- cylinder, closed end

2шт.

33

R38867

TUBE,0.75" OD

- cylinder, rod end

2шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight

2шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

36

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 37 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

38

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref.#39 Hex Hd, 1 1/16"-12 ORB

2шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

40

G101210

CYLINDER

- bucket, parts list Fig. 237

2шт.

41

13-662

BOLT - hex head, 3/8" - 16 NC x 1-3/8"

2шт.
