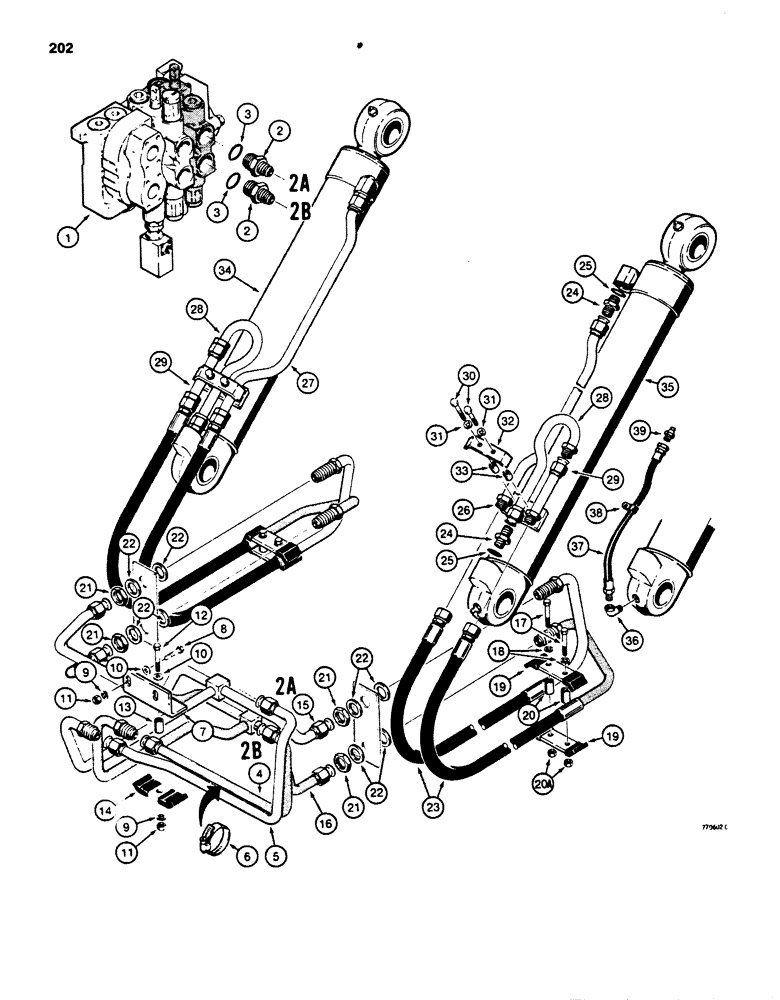

Запчасти Case 850B (202) - LOADER LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - see Fig. 266 - 274 for correct valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref.#3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

R34926

TUBE,1" OD

- port 2B, lower

1шт.

5

R41900

TUBE,1" OD

- port 2A, lower

1шт.

6

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - adjustable, tubes

1шт.

7

R34988

BRACKET

- tubes

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

13

R29845

BUSHING

SPACER - clamp

1шт.

14

R25782

CLAMP

- tubes

1шт.

15

R34922

TUBE

- upper

1шт.

16

R34923

TUBE

- lower

1шт.

17

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4", if used

4шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", If used

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

R37925

CLAMP

- tubes

4шт.

20

R29845

BUSHING

SPACER - clamps

4шт.

20a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

4шт.

21

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16" - 12 NF

4шт.

22

B18145

WASHER

- special

8шт.

23

R36589

HOSE

- to lift cylinders

4шт.

24

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref.#25

4шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

26

R37870

TUBE,0.75" OD x 30, 1.12" L

- right-hand, rod end

1шт.

27

R37872

TUBE,0.75" OD x 30, 1.12" L

- left-hand, rod end

1шт.

28

R33026

TUBE

- curved, closed end

2шт.

29

R33273

TUBE ASSY.,0.75" OD x 7.25" L

TUBE - straight, closed end

2шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

R27400

CLAMP

- cylinder tubes

2шт.

33

R29844

SPACER,3/8" Pipe x 11/16"

- clamp

4шт.

34

G101213

CYLINDER ASSY.

CYLINDER - left-hand, parts list Fig. 234

1шт.

35

G101212

CYLINDER ASSY.

CYLINDER - right-hand, parts list Fig. 234

1шт.

36

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, used with cab only 90º, 1/8"-27, NPT

2шт.

37

R44324

HOSE

- 15" (381 mm) long, used with cab only

2шт.

38

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, used with cab only

2шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used with cab only

2шт.
