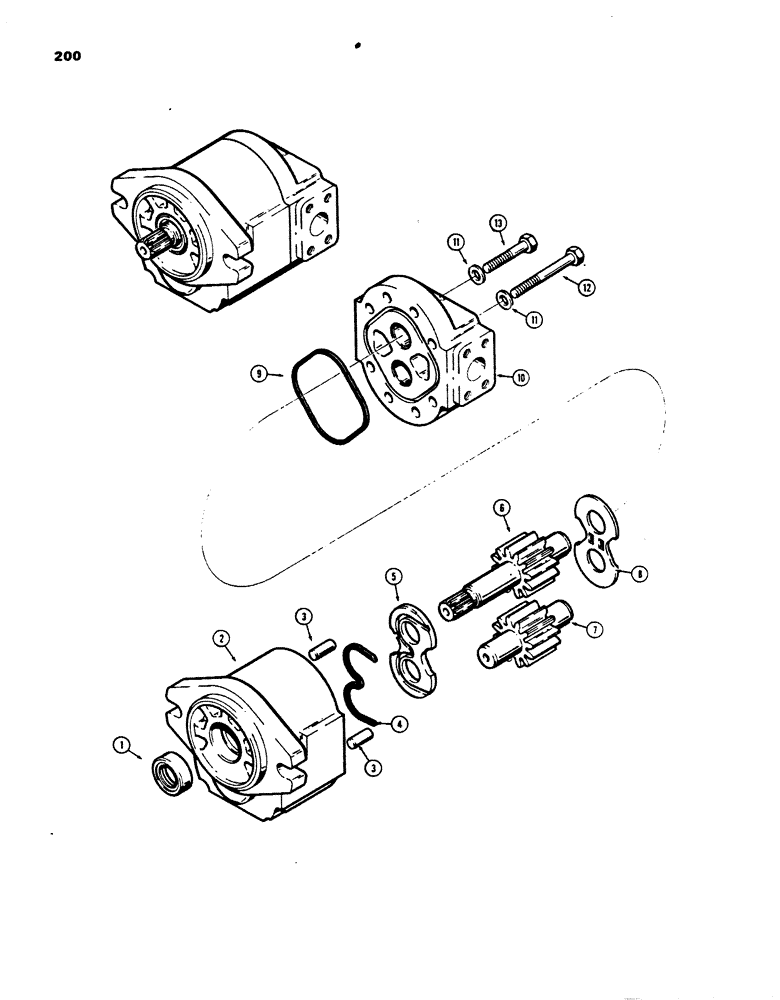

Запчасти Case 850B (200) - R37951 HYDRAULIC EQUIPMENT PUMP (07) - HYDRAULIC SYSTEM

R37951

PUMP

- hydraulic equipment, Warner Motive S305-33EJ53-R, Includes: Ref.#1 - 13

1шт.

1

D73624

SEAL

OIL SEAL - shaft

1шт.

2

D78412

HOUSING

BODY - shaft end

1шт.

3

D58188

PIN

DOWEL PIN - body and cover

2шт.

4

D73620

SEAL

OIL SEAL - wear plate

1шт.

5

D73619

PLATE

- wear

1шт.

6

D78413

GEAR

DRIVE GEAR - pump

1шт.

7

D78414

GEAR

DRIVEN GEAR - pump

1шт.

8

D73623

PLATE

- thrust

1шт.

9

D78415

SEAL

QUAD RING - pump cover

1шт.

10

D78411

COVER

- port end

1шт.

11

D74441

WASHER

- special

8шт.

12

26-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex head, 3/8" - 16 NC x 3", grade 8

4шт.

13

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex head, 3/8" - 16 NC x 1-3/4", grade 8

4шт.
