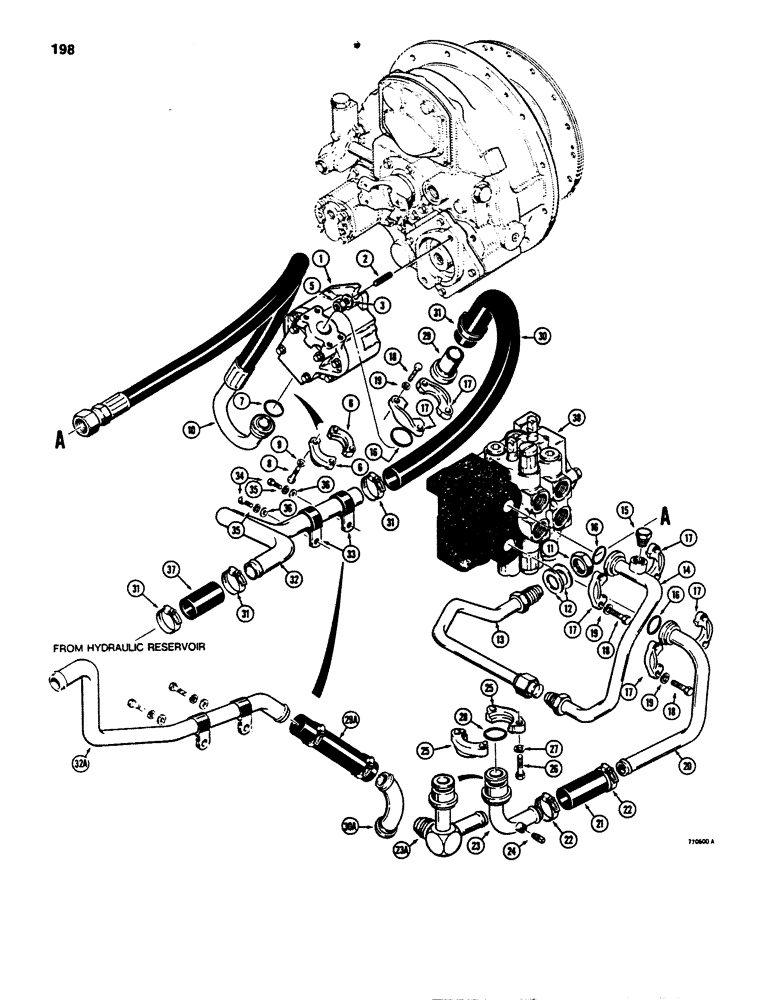

Запчасти Case 850B (198) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO RESERVOIR AND CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

R37951

PUMP

- equipment, parts list Fig. 200

1шт.

2

R24322

STUD

- 1/2" - 13 NC x 2-3/8"

2шт.

3

R24718

WASHER

- hardened

2шт.

5

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

6

A12306

FLANGE

CLAMP - split flange

2шт.

7

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hose

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

R38048

HOSE

- from pump

1шт.

11

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

1шт.

12

195-2131

WASHER,1 3/8" x 2" x .065"

- flat, 1-5/16"

2шт.

13

R34910

TUBE,1" OD

- to control valve, intermediate

1шт.

14

R35199

TUBE

- at control valve

1шт.

15

221-665

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

1шт.

16

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tubes at control valve and pump

3шт.

17

A12301

CLAMP,Half

CLAMP - split flange

6шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

12шт.

19

92-7

LOCK WASHER,7/16"

12шт.

20

R35206

TUBE,1.25" OD

- from control valve, lower port

1шт.

21

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- from control valve to hydraulic reservoir 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

22

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

23

R33400

TUBE,1.25" OD x 4.2, 3.64" L

- at reservoir, models without backhoe

1шт.

23a

R35286

TUBE,1.25" OD x 4.12, 3.99" L

- at reservoir, models with backhoe

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

25

A14157

FLANGE

CLAMP - split flange(Replaces R27612)

2шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- tube to hydraulic reservoir

1шт.

29

R38050

TUBE

- at pump, straight, if used

1шт.

29a

45926

PRESSURE GAUGE

TUBE - at pump, bent, if used

1шт.

30

R34905

HOSE

- 1-1/2" (38 mm) ID x 16" (396 mm) long, use with R38050 tube only

1шт.

30a

R45924

HOSE

- 1-1/2" (38 mm) ID x 9-1/2" (241 mm) long, use with R45926 tube only

1шт.

31

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable, hoses to pump 1.25/2.625 HD Worm

4шт.

32

R34901

TUBE

- from hydraulic reservoir, use with R38050 tube only

1шт.

32a

R56439

TUBE,1.5" OD

- from hydraulic reservoir, use with R45926 tube only

1шт.

33

49773

CLAMP

- tube from hydraulic reservoir

2шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

37

R43916

HOSE

- 1-1/2" (38 mm) x 3" (76 mm) long, from hydraulic reservoir

1шт.

38

REF

INSTRUCTION

CONTROL VALVE - equipment, see Fig. 266 - 288

1шт.
