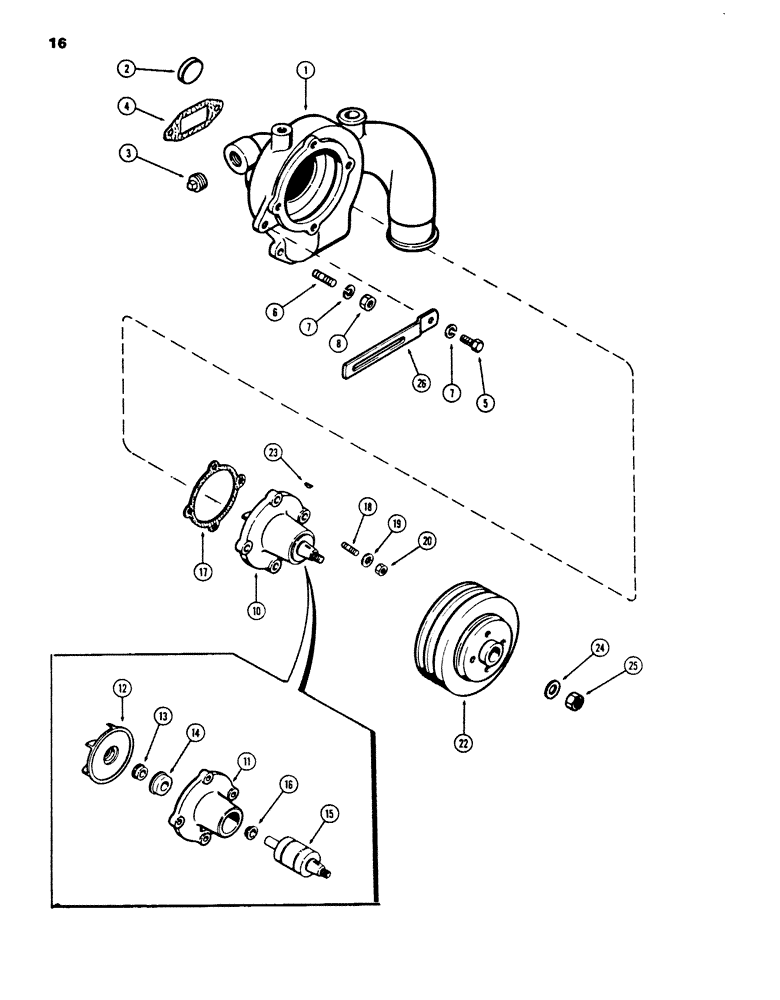

Запчасти Case 850B (016) - WATER PUMP, WITH KEYWAY SHAFT, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

1

A138498

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref.#2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" (34.9 mm) cup type

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" PT, square head

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, , Body Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

G102128

BOLT

STUD - body (3/8" NC x 1-7/16") (Replaces G11204)

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A152153

PUMP

PUMP ASSEMBLY - water, with cast iron impeller (Order A155180, A155047 and 14-820 Fig. 14)

1шт.

10

A62974

PUMP

PUMP ASSEMBLY - water, with plastic impeller (Order A155180, A155047 and 14-820 Fig. 14), Includes: Ref.# 11- 16

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

12

A152126

IMPELLER

IMPELLER - (cast iron) (Used with A152153 pump)

1шт.

12

A62975

IMPELLER

IMPELLER - (plastic) (Used with A62974 pump) (Order A152126)

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

SEAL - pump shaft

1шт.

15

A154521

SHAFT

SHAFT ASSEMBLY - with bearing (Order A155177, A155047, and 14-820 Fig. 14)

1шт.

16

CASA29440

SLINGER

- water

1шт.

17

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

18

A62234

STUD

STUD - pump to body (3/8" NC x 1-5/16")

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" NC hex

4шт.

22

A60504

PULLEY

PULLEY - fan drive

1шт.

23

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

WOODRUFF KEY, , Pulley to pump shaft #9, 3/16" x 3/4", HT

1шт.

24

A58651

WASHER

WASHER - pulley

1шт.

25

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, , Pulley 1/2"-20, GB

1шт.

26

A62429

STRAP

STRAP - alternator adjusting

1шт.
