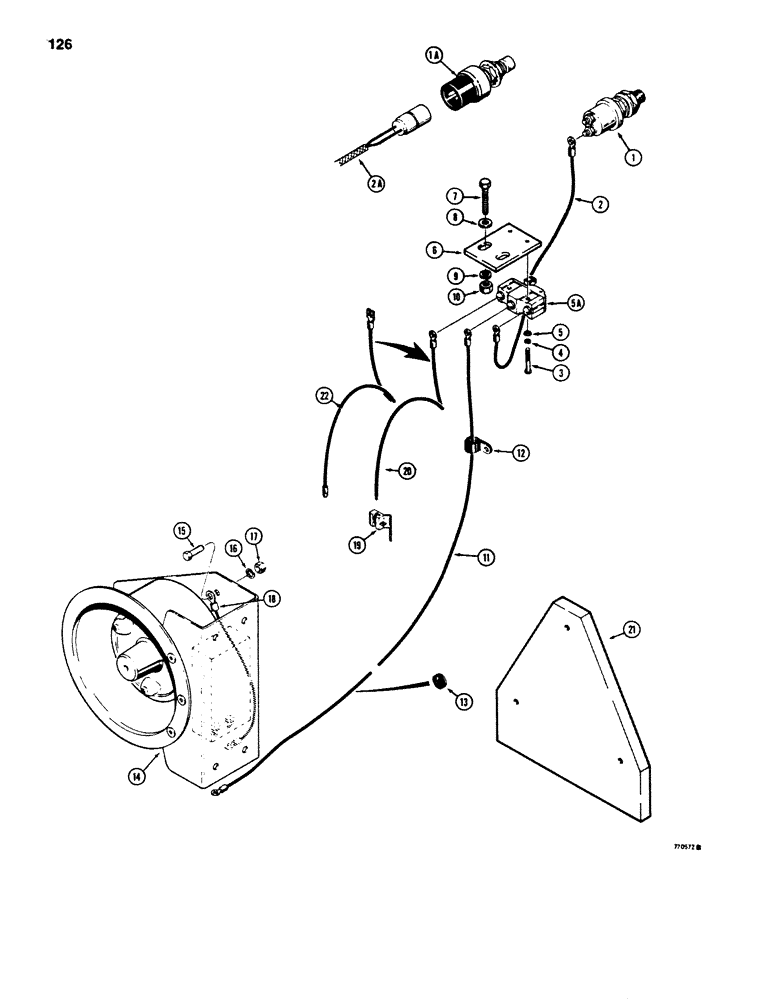

Запчасти Case 850B (126) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

PUSH BUTTON - uses spade connection, use R40998 kit

1шт.

1a

R40432

SWITCH

PUSH BUTTON - uses plug connection

1шт.

Part of Switch Kit P/N R40998

1шт.

2

R34964

ELECTRICAL WIRE

WIRE - D34924 push button

1шт.

2a

R40995

ELECTRICAL WIRE

WIRE - R40432 push button

1шт.

Part of Switch Kit P/N R40998

1шт.

3

182-50

SCREW,Sl Pan Hd, #6 - 32 x 1"

- pan head, slotted, no. 6-32 NC x 1"

2шт.

4

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

5

195-7

WASHER,#6

- flat, no. 6

2шт.

5a

L54683

SWITCH

- backup alarm

2шт.

6

R35733

PLATE

BRACKET - switch mounting

1шт.

7

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

2шт.

11

R35732

ELECTRICAL WIRE

WIRE - switch to backup alarm

1шт.

12

51200321

CLAMP

- wire, uses seat belt mounting hardware

1шт.

13

A23870

GROMMET

- wire

1шт.

14

S223033

BUZZER

BACKUP ALARM

1шт.

15

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

17

25-104

NUT,1/4"-20, G5

3шт.

18

R34956

ELECTRICAL WIRE

WIRE - ground

1шт.

19

R41086

CONNECTOR, ELEC

CONNECTOR - electrical, if used

1шт.

Part of Switch Kit P/N R40998

1шт.

20

R40987

WIRE - R40432 switch, to tractor wiring harness, no longer used, service with R43836 wire

1шт.

21

R31184

PLATE - mounting, backup alarm, used on backhoe models only

1шт.

22

R43836

ELECTRICAL WIRE

WIRE - backup alarm switch to tractor wiring harness

1шт.

R40998

KIT

- switch, Includes: Ref. 1A, 2A & 19

1шт.
