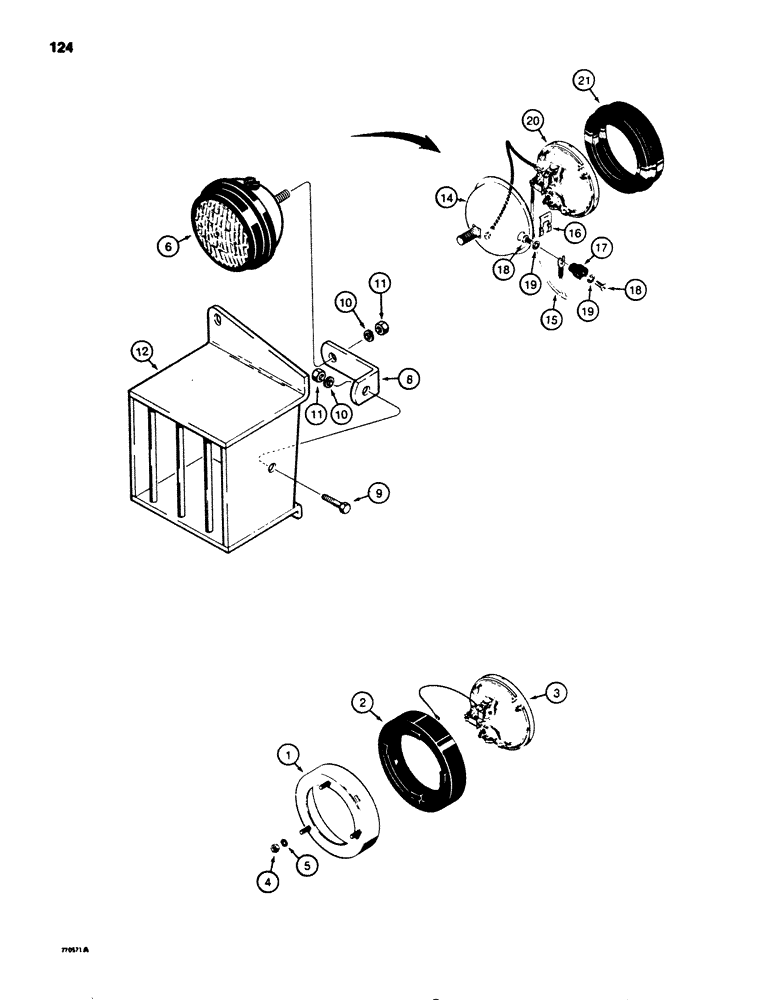

Запчасти Case 850B (124) - LAMPS, HEAD LAMP ASSEMBLY (06) - ELECTRICAL SYSTEMS

R31131

LAMP

HEAD LAMP ASSEMBLY - 24 volt, Includes: Ref.#s1 - 3

2шт.

1

L30510

FRAME

- lamp

1шт.

2

A25213

RETAINER

- lamp

1шт.

3

L10499

LAMP

BULB - sealed beam, 24 volt, no. 4589

1шт.

4

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10-24 NC, plated

6шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

6

L45149

HEADLIGHT

REAR LAMP ASSEMBLY - 24 volt, parts list below

1шт.

8

R30019

BRACKET

- lamp mounting, rear

1шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Rear lamp Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

10

92-8

LOCK WASHER,1/2"

rear lamp 1/2"

2шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, rear lamp

2шт.

12

R30018

GUARD

- rear lamp

1шт.

L45149

HEADLIGHT

LAMP ASSEMBLY - 24 volt, Includes: Ref.#s14 - 21

1шт.

14

NSS

NOT SOLD SEPARAT

BODY AND WIRE - lamp, L45149 assembly

1шт.

15

A40033

ELECTRICAL WIRE

WIRE - lamp to insulator, L45149 assembly

1шт.

16

10927

SPRING

CLIP - retainer, insulator, L45149 lamp assembly

1шт.

17

B50293

TERMINAL CONNECTOR

- lamp connection, L45149 assembly

1шт.

18

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- round head, no. 8-32 NC x 1/4", L45149 lamp assembly

2шт.

19

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , L45149 lamp assembly Int Tooth, #8

2шт.

20

L10499

LAMP

BULB - sealed beam, 24 volt, no. 4589, L45149 lamp assembly

1шт.

21

D31441

RETAINER

- lamp to body, L45149 assembly

1шт.
