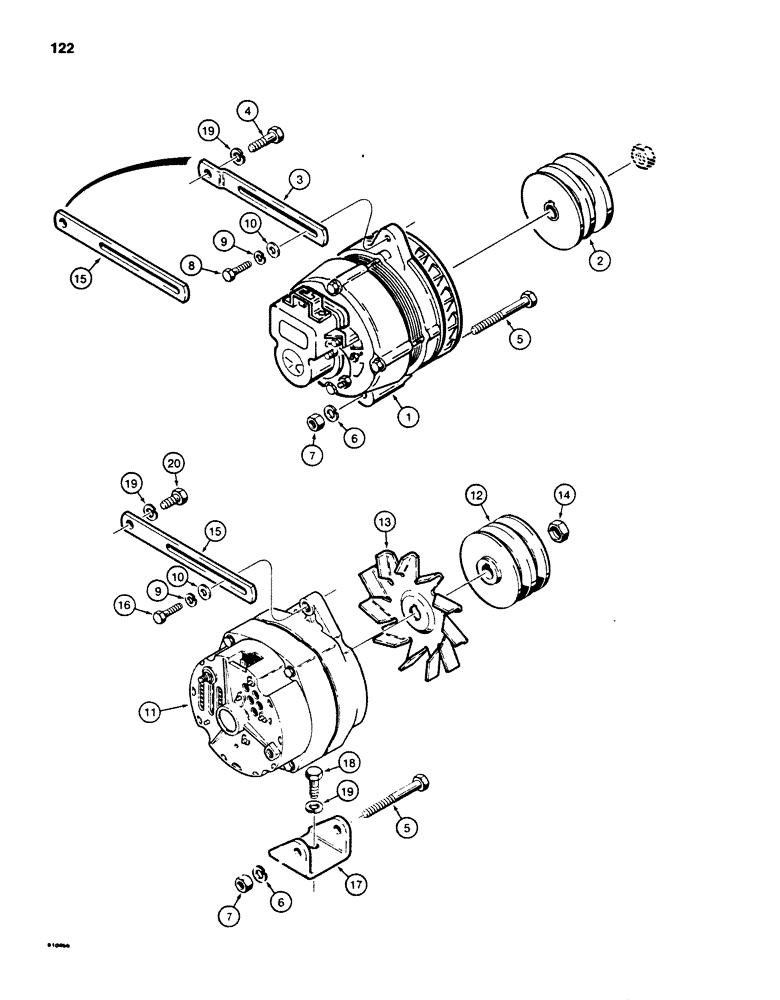

Запчасти Case 850B (122) - ALTERNATOR AND MOUNTING (06) - ELECTRICAL SYSTEMS

1

R36587

ALTERNATOR

- 24 volt, Motorola no. 8HC30176, parts list Fig.80 and 82

1шт.

2

A41361

PULLEY

- R36587 alternator only

1шт.

3

A62429

STRAP

- alternator adjusting, no longer used, order R40121 strap

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

R36587 alternator only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

5

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

R36587 alternator only Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

11

L101465

ALTERNATOR

- Delco no. 1103123, 40 amp, parts list Fig. 84

1шт.

12

L59716

PULLEY

- L101465 alternator only

1шт.

13

A43384

FAN

- L101465 alternator only

1шт.

14

825-1006

NUT,M6, Cl 8

- hex, 6mm -1, grade 8.8, output terminal, L101465 alternator only

1шт.

15

R40121

STRAP

- alternator adjusting

1шт.

16

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8mm - 1.25 x 25 mm, grade 8.8, L101465 alternator only

1шт.

17

A160391

BRACKET

- mounting, used with both alternators

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

L101465 alternator only Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.
