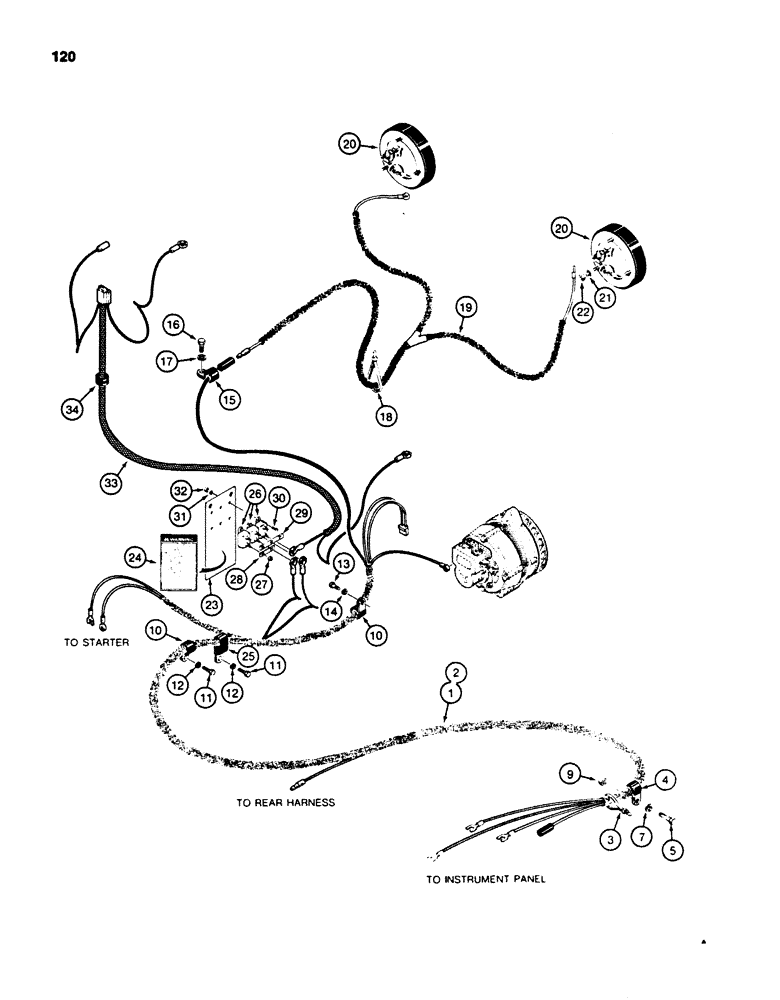

Запчасти Case 850B (120) - FRONT ELECTRICAL WIRING, INSTRUMENT PANEL TO CIRCUIT BREAKERS AND HEADLAMPS (06) - ELECTRICAL SYSTEMS

1

R34020

HARNESS

- front electrical, Serial Range: -7400001

1шт.

2

R45922

HARNESS

- front electrical, Start Serial: 7400001

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - harness, at instrument panel

1шт.

4

84183C1

CLAMP

- harness

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

10

49838

CLAMP

- front harness, above starter

2шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

51200330

CLAMP

- head lamp wire

1шт.

16

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

17

92-7

LOCK WASHER,7/16"

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - head lamp wire

2шт.

19

R29239

HARNESS

WIRE - head lamp

1шт.

20

R31131

LAMP

HEAD LAMP - parts list Fig. 124

2шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

22

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10-24 NC , plated

6шт.

23

R45469

PLATE

- mounting, circuit breakers and decal, Includes: Ref.#24, Start Serial: 7400001

1шт.

24

321-5974

DECAL

- booster battery at starter, Start Serial: 7400001

1шт.

25

S86530

CLAMP

- positive battery cable and circuit breaker mounting plate, Start Serial: 7400001

1шт.

26

R45475

BREAKER

CIRCUIT BREAKER - 40 amperes; 2 used without cab, 3 used with cab, Start Serial: 7400001

2-3шт.

27

129-37

NUT,#10-32

, Start Serial: 7400001

4-6шт.

28

R45468

PLATE ASSY.

PLATE - circuit breaker mounting, with 2 slots, lower, Start Serial: 7400001

1шт.

29

R45467

PLATE ASSY.

PLATE - circuit breaker mounting, with 3 slots, upper, Start Serial: 7400001

1шт.

30

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

- Phillips head, no. 8-32 Nc x 3/8", plated, Start Serial: 7400001

4-6шт.

31

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8, Start Serial: 7400001

4-6шт.

32

129-16

NUT,#8-32

, Start Serial: 7400001

4-6шт.

33

R44262

HARNESS

circuit breaker to cab wiring harness

1шт.

For cab wiring harness, see Fig. 414

1шт.

34

353-703

GROMMET

BUSHING - harness, at instrument panel, used with cab models only

1шт.
