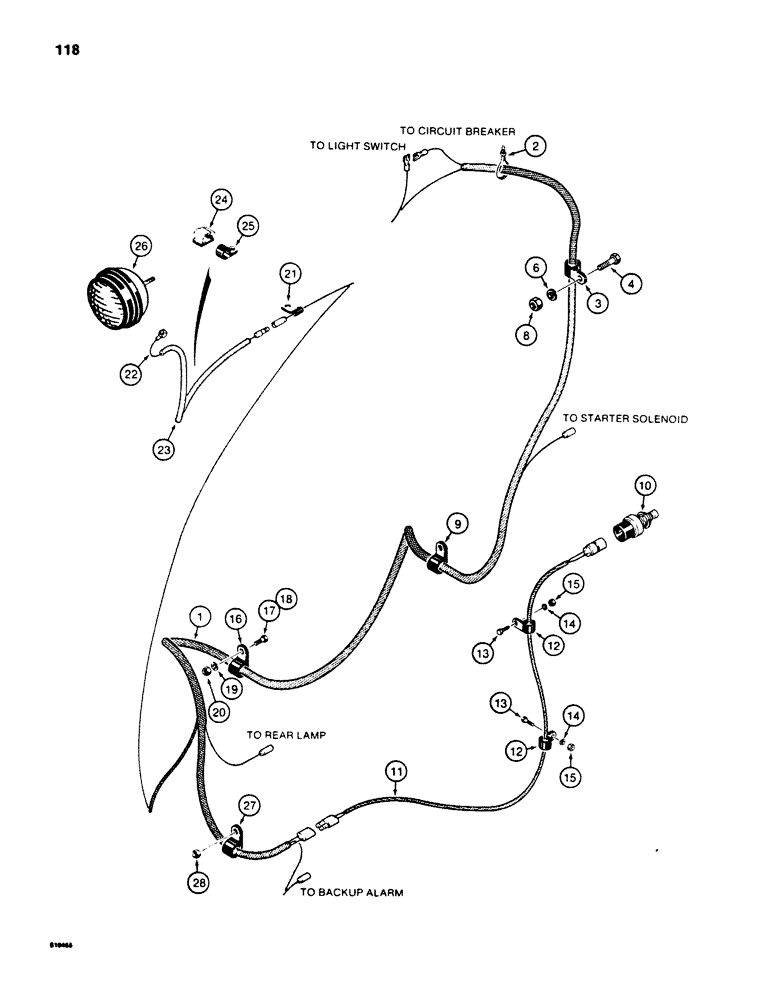

Запчасти Case 850B (118) - REAR ELEC. WIRING, REAR WIRING HARNESS TO INSTR. PANEL & REAR LAMP, USED ON TRAC. SN 7400001 & AFTER (06) - ELECTRICAL SYSTEMS

1

R45921

HARNESS

- rear electrical

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - harness, at instrument panel

1шт.

3

D41564

- harness, holds all wires, cables, and hoses from instrument panel

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

6

92-8

LOCK WASHER,1/2"

1шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

9

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness, uses brake master cylinder mounting hardware

1шт.

10

R40432

SWITCH

PUSH BUTTON - starter switch

1шт.

11

R40995

ELECTRICAL WIRE

WIRE - starter switch

1шт.

12

R49852

CLAMP - starter switch wire

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- rear wiring harness

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Loader models only Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Dozer and drawbar models only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- rear wiring harness, uses battery support plate hardware

1шт.

22

A14733

ELECTRICAL WIRE

WIRE - rear lamp

1шт.

23

D42919

LOOM

COVER - rear lamp wire

1шт.

24

F43611

CLIP

- adhesive, rear lamp wire, used with backhoe, no longer used, service with 49852 clamp

3шт.

25

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- rear lamp wire, used with backhoe

3шт.

26

L45149

HEADLIGHT

LAMP - rear, parts list Fig. 124

1шт.

27

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- rear electrical harness, attaches to transmission filter

1шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
