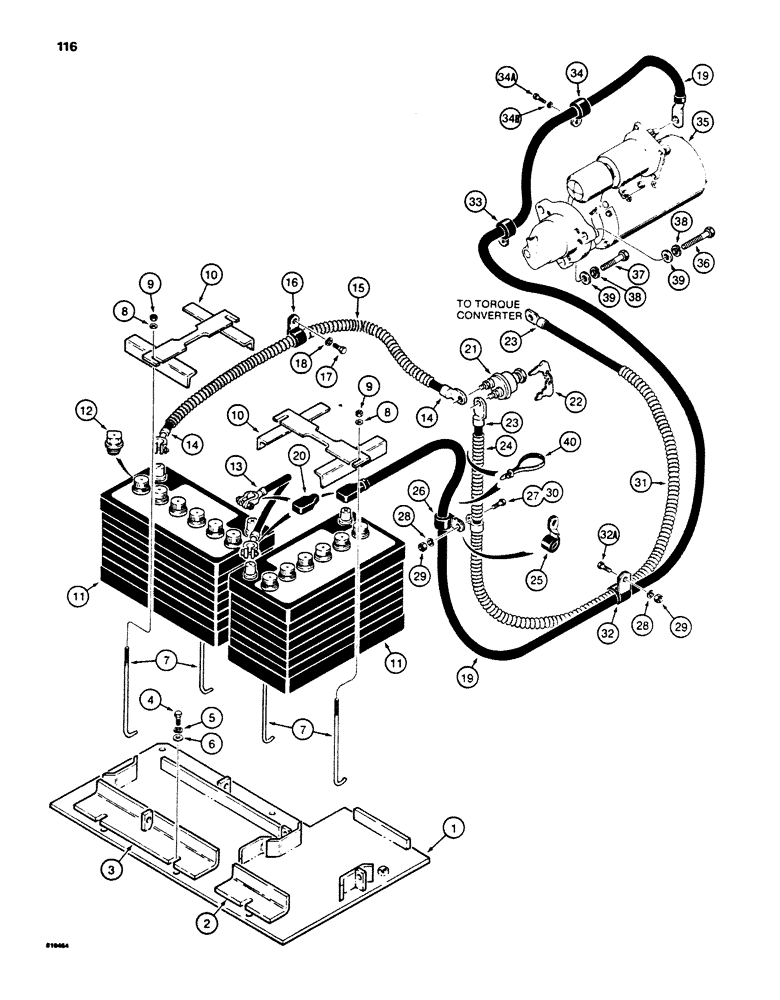

Запчасти Case 850B (116) - REAR ELECTRICAL WIRING, BATTERY CABLES TO STARTER, USED ON TRAC. SN. 7400001 & AFTER (06) - ELECTRICAL SYSTEMS

1

R32772

SUPPORT

PLATE - battery support

1шт.

2

R32767

ANGLE

BRACKET - battery retaining, rear, narrow

1шт.

3

R32718

ANGLE

BRACKET - battery retaining, rear wide

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

5

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

6

195-25

WASHER,3/8"

WASHER - flat, 3/8"

6шт.

7

R27652

ROD

ROD - threaded, battery retaining

4шт.

8

195-21

WASHER,5/16"

WASHER - flat, 5/16"

4шт.

9

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

10

R32723

BRACKET

BRACKET - battery retaining, top

2шт.

11

A38411

DRY BATTERY

BATTERY - 12 volt, service replacement

2шт.

12

A60553

CAP

CAP - battery, nonspill

12шт.

13

A7440

CABLE

CABLE - jumper, battery

1шт.

14

R45989

CABLE

CABLE - battery, negative

1шт.

15

R45990

SPARE PART CONDUIT - negative battery cable, 30" (762 mm) long

1шт.

16

D20302

CLAMP,7/8", Insul, 3/8" Bolt

CLAMP - negative battery cable

1шт.

17

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

19

R45988

CABLE PULLING GRIP

CABLE - battery, positive

1шт.

20

A27072

COVER

BOOT - battery cable terminal

3шт.

21

R25784

SWITCH

SWITCH AND KEY - master disconnect, Includes: Ref.#22

1шт.

22

D36822

KEY

KEY - set of two

1шт.

23

R40381

CABLE

CABLE - battery ground

1шт.

24

R40777

CONDUIT

CONDUIT - battery ground cable, 8" (203 mm) long

1шт.

25

R40419

CLAMP

CLAMP - P-style, twisted, positive battery cable, used on loader models only, no longer used, order two L18331 tie straps (Ref. 40)

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP - P-style, battery ground cable

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Loader models only Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC

2шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Dozer and drawbar models only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

31

R40778

CONDUIT

CONDUIT - battery ground cable, 22" (559 mm) long

1шт.

32

S86530

CLAMP

CLAMP - positive battery cable and ground cable

1шт.

32a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

33

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

CLAMP - P-style, twisted, positive battery cable, uses engine to flywheel housing hardware

1шт.

34

S86530

CLAMP

CLAMP - positive battery cable to circuit breaker mounting plate

1шт.

34a

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

34b

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

35

R46156

STARTING MOTOR

STARTER - production only, Delco Remy no. 1113535, parts list Fig. 96 & 98, for service use L106562 starter

1шт.

35

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

35

RC46156

CORE-STARTER

Return Number

1шт.

35

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

35

104213A1C

CORE-STARTER

Return Number

1шт.

35

L106562

STARTER MOTOR

STARTER - Delco Remy no. 1113534, parts list Figures 100 and 102

1шт.

35

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

35

104213A1C

CORE-STARTER

Return Number

1шт.

36

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

BOLT - hex head, 1/2" - 13 NC x 3"

1шт.

37

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, Hex, 1/2"-13 x 2", G5

2шт.

38

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

39

R24323

WASHER

WASHER - hardened, 1/2"

3шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP TIE STRAP - positive battery cable to battery ground cable, below master switch

2шт.
