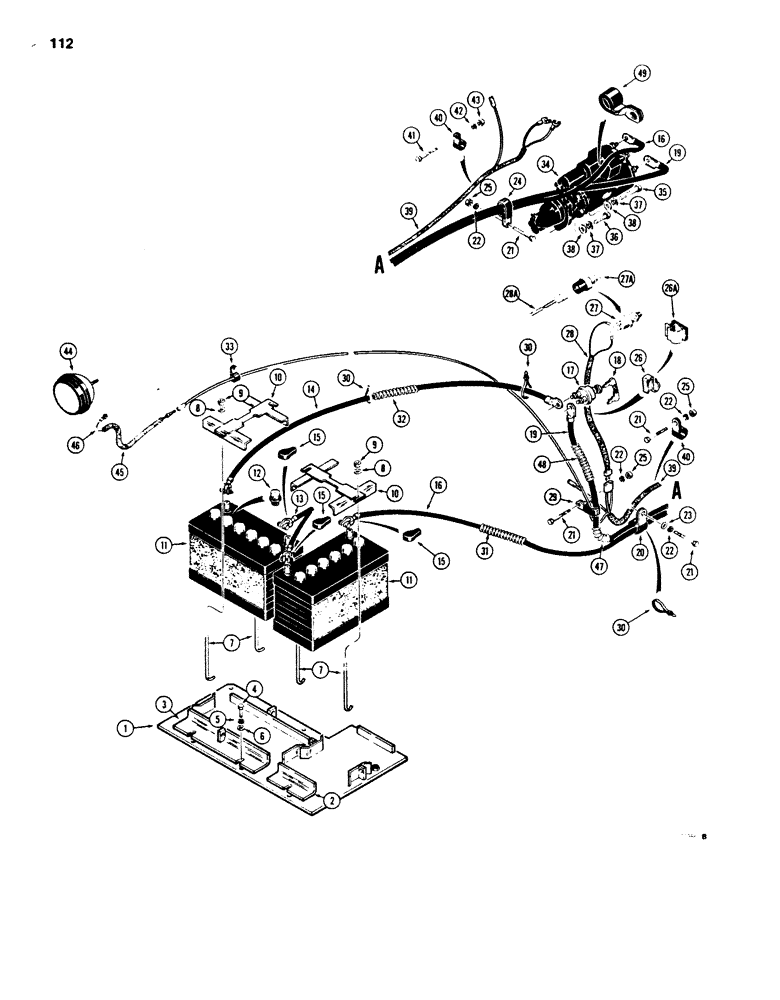

Запчасти Case 850B (112) - REAR ELEC. WIRING, INSTR. PANEL TO STARTER, BATTERY, & REAR LAMP USED BEFORE TRAC. SN. 7400001 (06) - ELECTRICAL SYSTEMS

1

R32772

SUPPORT

PLATE - battery support

1шт.

2

R32767

ANGLE

- short, battery retaining

1шт.

3

R32718

ANGLE

- long, battery retaining

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

195-25

WASHER,3/8"

- flat, 3/8"

6шт.

7

R27652

ROD

- battery retaining

4шт.

8

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

9

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

10

R32723

BRACKET

RETAINER - battery

2шт.

11

A38411

DRY BATTERY

- 12V

2шт.

12

A60553

CAP

- battery, nonspill

12шт.

13

A7440

CABLE

- battery, jumper

1шт.

14

F21064

ELECTRICAL WIRE

CABLE - battery, negative

3шт.

15

A27072

COVER

BOOT - rubber

3шт.

16

R34021

CABLE

- battery, positive

1шт.

17

R25784

SWITCH

AND KEY - master disconnect, Includes: Ref.#18

1шт.

18

D36822

KEY

- set of two

1шт.

19

R40381

CABLE

- ground

1шт.

20

D49498

CLAMP

- double, no longer used

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3"

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

24

D47783

CLAMP

1шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

26

NLS

NO LONGER SERVICED

- wire, if used

1шт.

26a

F43611

CLIP

- wire, adhesive, if used

1шт.

27

D34924

SWITCH

- uses spade connection, use R40998 kit see Fig. 126

1шт.

27a

R40432

SWITCH

- uses plug connections

1шт.

28

D39130

ELECTRICAL WIRE

WIRE - D34924 switch

1шт.

28a

R40995

ELECTRICAL WIRE

WIRE - R40432 switch

1шт.

29

49838

CLAMP

- negative battery cable, no longer used, service with L18331 tie strap

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - positive battery cable

1шт.

31

R40779

CONDUIT - guard, 45" (1143 mm) long

1шт.

32

R40572

CONDUIT

- guard, 25" (631 mm) long

1шт.

33

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- rear lamp wire

1шт.

34

REF

INSTRUCTION

STARTER - see Fig. 86 thru 102 for correct starter and parts lists

1шт.

35

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

1шт.

36

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

37

92-8

LOCK WASHER,1/2"

3шт.

38

R24323

WASHER

- hardened

3шт.

39

R34022

HARNESS

- rear

1шт.

40

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

44

L45149

HEADLIGHT

LAMP - rear and side, parts list Fig. 124

1шт.

45

D42919

LOOM

1шт.

46

A14733

ELECTRICAL WIRE

WIRE - rear lamp

1шт.

47

R40778

CONDUIT

- guard, 22" (559 mm) long

1шт.

48

R40777

CONDUIT

- guard, 8" (203 mm) long

1шт.

49

R40419

CLAMP

- positive battery cable, uses hardware that mounts engine to flywheel housing

1шт.
