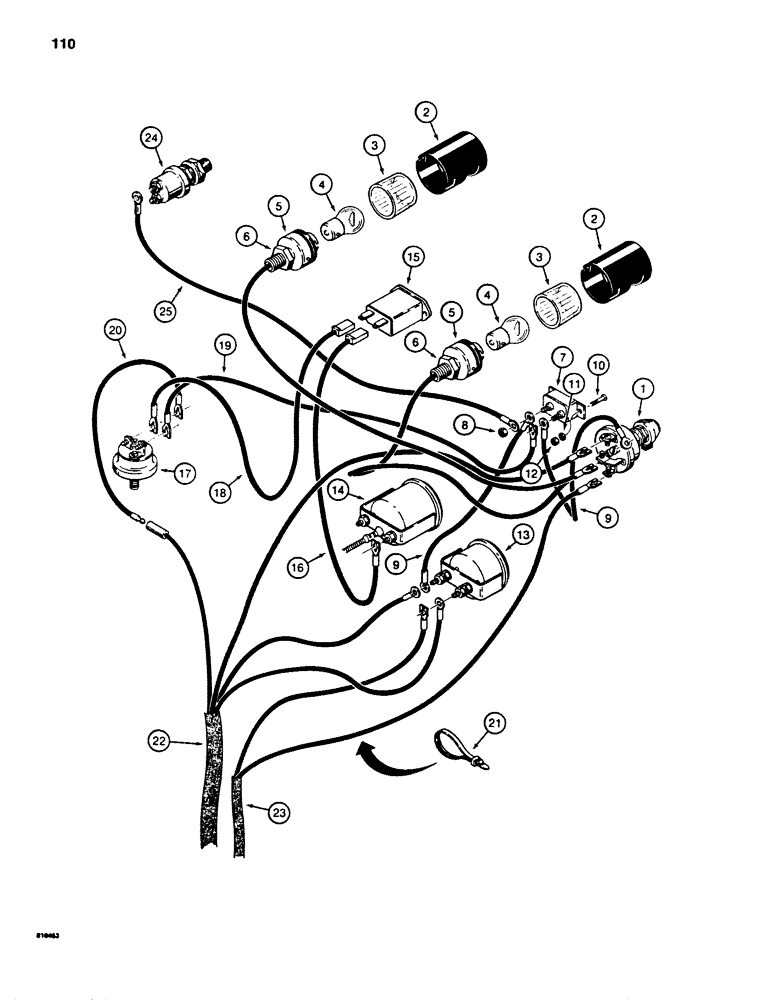

Запчасти Case 850B (110) - INSTRUMENT PANEL WIRING, USED ON TRACTOR SN 7400001 AND AFTER (06) - ELECTRICAL SYSTEMS

1

R27539

SWITCH

- lamp, instrument panel

1шт.

D38515

TURNBUCKLE

LAMP ASSEMBLY - instrument panel, Includes: Ref.#s2 - 6

2шт.

2

D37918

COVER

- lamp

1шт.

3

D37919

LENS

- lamp

1шт.

4

R19897

BULB

- no. 623

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - includes wire

1шт.

6

D39095

NUT

- special

1шт.

7

L104328

BREAKER

CIRCUIT BREAKER - 25 amperes, on instrument panel, Includes: Ref.#8

1шт.

8

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, no. 10-32 NF, plated

2шт.

9

51200220

ELECTRICAL WIRE

WIRE - jumper, from circuit breaker

2шт.

10

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW - no. 8-32 NC x 3/8", plated

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

12

129-16

NUT,#8-32

2шт.

13

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

14

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

15

L49907

GAUGE

HOURMETER - engine

1шт.

16

D36099

ELECTRICAL WIRE

WIRE - hourmeter to engine temperature gauge

1шт.

17

D28798

SWITCH

PRESSURE SWITCH - engine oil, includes wire, wire not used

1шт.

18

R29353

ELECTRICAL WIRE

WIRE - hourmeter to pressure switch

1шт.

19

R33638

ELECTRICAL WIRE

WIRE - pressure switch to circuit breaker

1шт.

20

R37114

ELECTRICAL WIRE

WIRE - with diode, pressure switch to main writing harness

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wires, at instrument panel

1шт.

22

R45922

HARNESS

- wiring, main

1шт.

23

R45921

HARNESS

- tail lamp and starter button

1шт.

24

D34924

SWITCH

PUSH BUTTON - cold start

1шт.

25

F21342

ELECTRICAL WIRE

WIRE - push button to circuit breaker

1шт.
