(108) - INSTRUMENT PANEL WIRING, USED BEFORE TRACTOR SN 7400001

Запчасти Case 850B (108) - INSTRUMENT PANEL WIRING, USED BEFORE TRACTOR SN 7400001 (06) - ELECTRICAL SYSTEMS

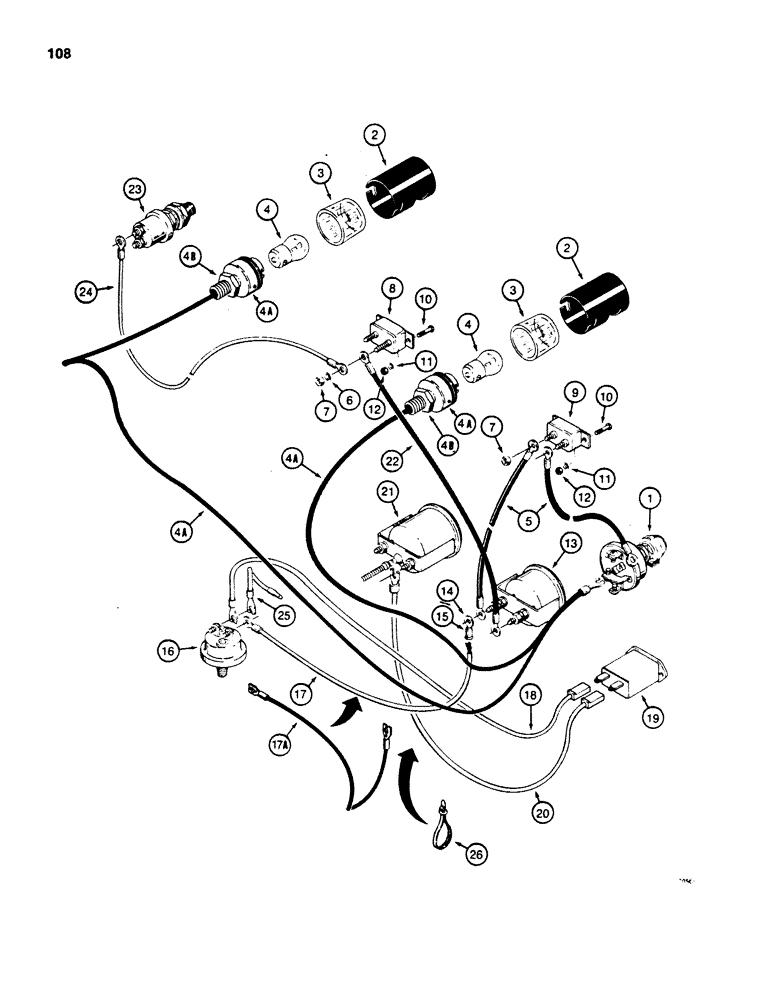

Схема запчастей Case 850B - (108) - INSTRUMENT PANEL WIRING, USED BEFORE TRACTOR SN 7400001 (06) - ELECTRICAL SYSTEMS
15
12
23
17a
25
8
4a
20
11
19
24
3
4b
4
5
16
4a
7
13
4a
4b
2
4a
6
26
3
10
1
7
12
14
2
10
17
9
18
4
22
21
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R27539

SWITCH

- lamp, instrument panel

1шт.

D35815

LAMP

ASSEMBLY - instrument panel, Includes: Ref.#s2 - 4B

2шт.

2

D37918

COVER

- lamp

1шт.

3

D37919

LENS

- lamp

1шт.

4

R19897

BULB

- no. 623

1шт.

4a

NSS

NOT SOLD SEPARAT

BODY - includes wire

1шт.

4b

D39095

NUT

- special

1шт.

5

51200220

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to lamp switch and ammeter

2шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

7

129-37

NUT,#10-32

4шт.

8

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amperes, at instrument panel

1шт.

9

L104328

BREAKER

CIRCUIT BREAKER - 25 amperes

1шт.

10

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

- round head, slotted, no. 8-32 NC x 3/8", plated

4шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

12

129-16

NUT,#8-32

4шт.

13

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

14

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - electrical

1шт.

15

223-83

SLEEVE

- insulating

1шт.

16

D28798

SWITCH

PRESSURE SWITCH - engine oil, Includes: Ref.#17

1шт.

17

D28797

ELECTRICAL WIRE

WIRE - switch, may be serviced with R33638 wire

1шт.

17a

R33638

ELECTRICAL WIRE

WIRE - pressure switch, includes both terminals (spade type), may be used to service D28797 wire

1шт.

18

R29353

ELECTRICAL WIRE

WIRE - jumper, pressure, Serial Range: switch-hourmeter

1шт.

19

L49907

GAUGE

HOURMETER

1шт.

20

D39285

ELECTRICAL WIRE

WIRE - jumper, hourmeter to engine temperature gauge

1шт.

21

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

22

F18726

CABLE

WIRE - jumper, circuit, Serial Range: breaker-ammeter

1шт.

23

D34924

SWITCH

PUSH BUTTON - either injection

1шт.

24

F21342

ELECTRICAL WIRE

WIRE - jumper, push button to circuit breaker

1шт.

25

R37114

ELECTRICAL WIRE

WIRE AND DIODE - pressure switch to main wiring harness

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wires, at instrument panel

1шт.
