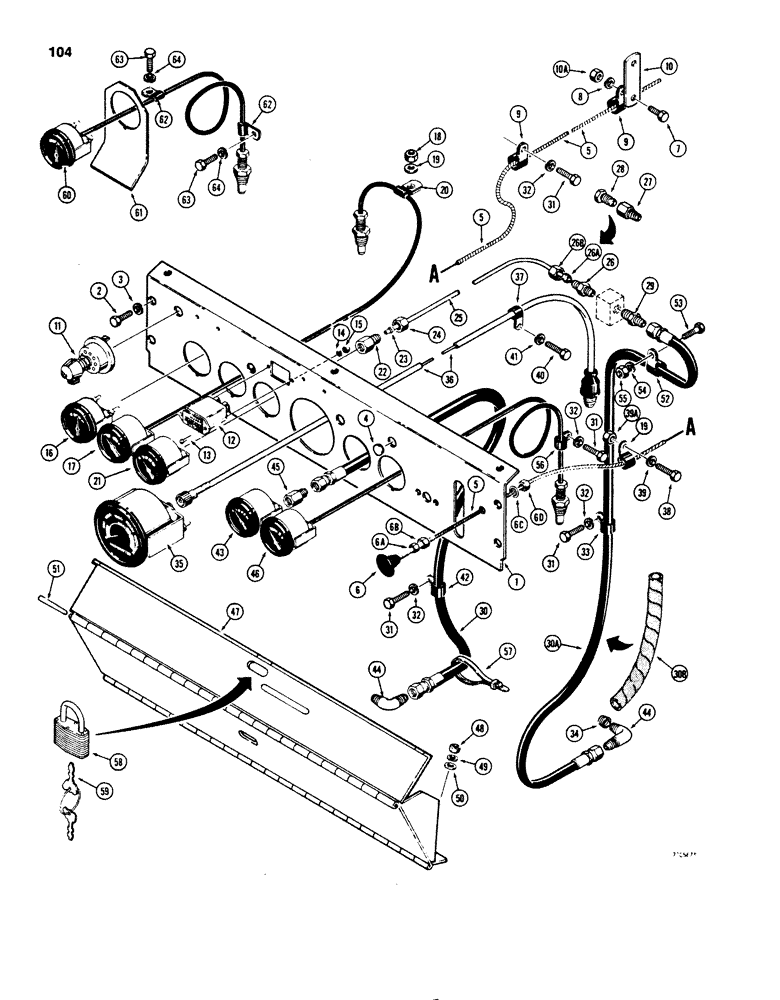

Запчасти Case 850B (104) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

R35262

PANEL ASSY.

INSTRUMENT PANEL - tractor

1шт.

2

113-279

BOLT

- hex head, 3/8" - 16 NC x 3/4", plated

4шт.

3

192-43

WASHER,3/8"

LOCK, 3/8"

4шт.

4

353-407

PLUG,Dome, .687" hole, Nylon

- button, if used

4шт.

Between ref #'s 4 & 5, (439307) should read R39307.

1шт.

R39307

CONTROL

- Fuel Shutoff, Includes: Ref.#s5 - 6D

1шт.

5

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

6

L33717

KNOB

- fuel shutoff

1шт.

6a

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

6b

L32866

SEAL

NUT - hex, special, 3/8" -24 NF, plated

1шт.

6c

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

6d

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, lock, 3/8" -24 NF, plated

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

49859

CLAMP

- fuel shutoff cable

3шт.

10

R39308

PLATE

- clamp, fuel shutoff cable

1шт.

10a

25-106

NUT,3/8"-16, G5

- hex, 3/8" -16 NC

1шт.

11

R27539

SWITCH

- lamp, instrument panel

1шт.

12

L49907

GAUGE

HOURMETER

1шт.

13

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- fillister head, slotted, no. 5-40 NC x 1/2"

2шт.

14

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

15

129-44

SQUARE NUT,Sq, #5-40

- hex, no. 5-40 NC, plated

2шт.

16

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

17

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

18

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

1шт.

19

195-29

WASHER,7/16"

- flat, 7/16"

1шт.

20

51200330

CLAMP

- hose, engine temperature gauge

1шт.

21

R46054

OIL PRESSURE GAUGE

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

FITTING - straight, compression, Includes: Ref.#22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

23

D37176

SLEEVE

- fitting

1шт.

24

D37362

TUBE NUT

- compression

1шт.

25

R40211

PLASTIC-RUBBER TUBE,0.125" OD x 10" L

TUBE - nylon, engine oil pressure

1шт.

D35816

CONNECTOR, ELEC

FITTING - straight, production part, for service order 222-400, Includes: Ref.#s26 - 26B.

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

26a

D37176

SLEEVE

- fitting

1шт.

26b

D37362

TUBE NUT

- compression

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

FITTING - straight, compression, service part for D35816 fitting, Includes: Ref.#s27 & 28

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

28

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - fitting

1шт.

29

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, male

1шт.

30

R40333

HOSE

- transmission oil pressure, 50" (1270 mm) long

1шт.

30a

D95117

HOSE

- engine oil pressure, 57" (1448 mm) long

1шт.

30b

R12568

COVER - hose, engine oil pressure

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

32

92-6

LOCK WASHER,3/8"

3шт.

33

49838

CLAMP

- hose, engine oil pressure

1шт.

34

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" NPT x 1/8" NPT

1шт.

35

R27126

TACHOMETER

- engine RPM

1шт.

36

R27130

CABLE

- tachometer

1шт.

37

49838

CLAMP

- tachometer cable

1шт.

38

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

1шт.

39

92-5

LOCK WASHER,5/16"

1шт.

39a

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

41

92-5

LOCK WASHER,5/16"

1шт.

42

49838

CLAMP

- hose, transmission oil pressure

1шт.

43

R38646

GAUGE

- transmission oil pressure

1шт.

44

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

2шт.

45

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

CONNECTOR - straight, female - male

1шт.

46

R38645

GAUGE

- torque converter temperature

1шт.

47

R35266

COVER ASSY

COVER - instrument panel

1шт.

48

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

3шт.

49

92-5

LOCK WASHER,5/16"

3шт.

50

195-21

WASHER,5/16"

- flat, 5/16"

3шт.

51

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN - tapered, no. 9 x 2"

1шт.

52

49836

CLAMP

- hose, engine oil pressure

1шт.

53

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

54

92-8

LOCK WASHER,1/2"

1шт.

55

25-106

NUT,3/8"-16, G5

- hex, 1/2" - 13 NC

1шт.

56

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- hose, converter temperature gauge

1шт.

57

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - converter temperature hose to equipment hoses

1шт.

58

D93753

PADLOCK

- instrument panel cover, if used, Includes: Ref.#59

1шт.

59

R29555

KEY

- for Master padlock only

2шт.

59

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

60

R38934

ELECTRICAL GAUGE

GAUGE - hydraulic oil temperature, backhoe models only

1шт.

61

R38711

PANEL

BRACKET- gauge, backhoe models only

1шт.

62

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- cable, hydraulic oil temperature, backhoe models only

2шт.

63

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Backhoe models only Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

64

92-6

LOCK WASHER,3/8"

backhoe models only 3/8"

2шт.
