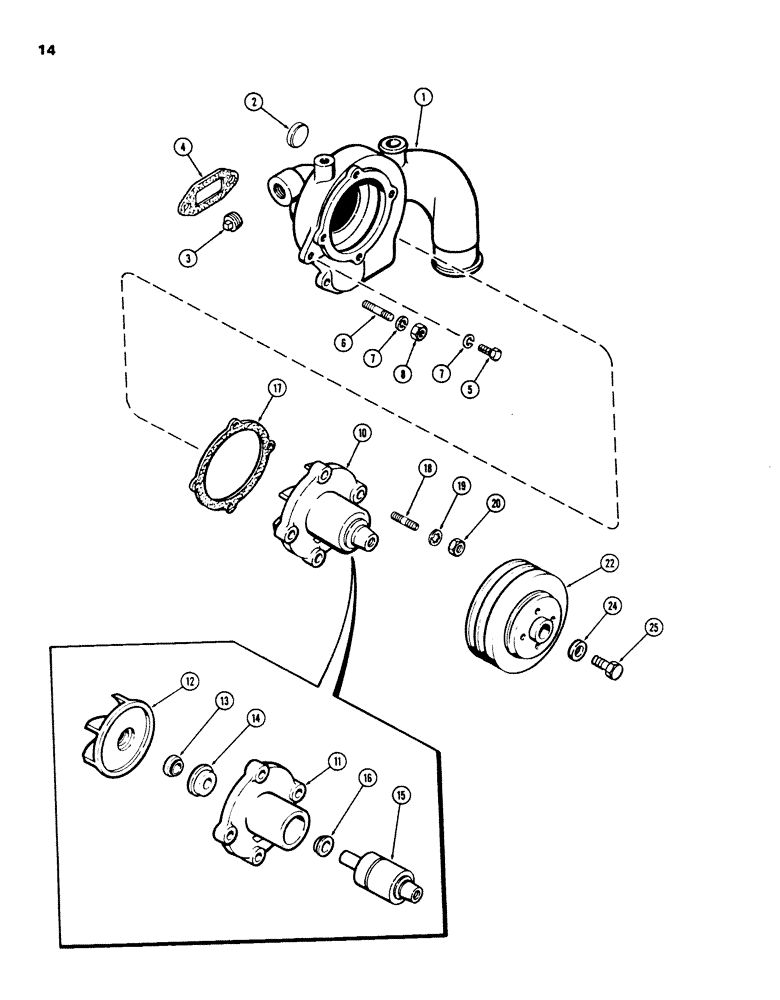

Запчасти Case 850B (014) - WATER PUMP, WITH TAPPED SHAFT, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

1

A138498

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref.#2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" (34.9 mm) cup type

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" PT, square head

1шт.

4

A58649

GASKET

-, Serial Range: body-block

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Body Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

102128

PIPE CLAMP

STUD - body (3/8" NC x 1-7/16") (Replaces G11204)

2шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A155180

PUMP

ASSEMBLY - water, Includes: Ref.#11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

12

A152126

IMPELLER

- pump (cast iron)

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

- pump shaft

1шт.

15

A155177

SHAFT

ASSEMBLY - with bearing, Includes: Ref.#16

1шт.

16

CASA29440

SLINGER

- water

1шт.

17

A58646

GASKET

-, Serial Range: pump-body

1шт.

18

A62234

STUD

- pump to body (3/8" NC x 1-5/16")

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex jam

4шт.

22

A60504

PULLEY

- fan drive

1шт.

24

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - pulley

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/4" NF hex (Grade 5)

1шт.
