Запчасти Case 850B (100) - L106562 STARTER (06) - ELECTRICAL SYSTEMS

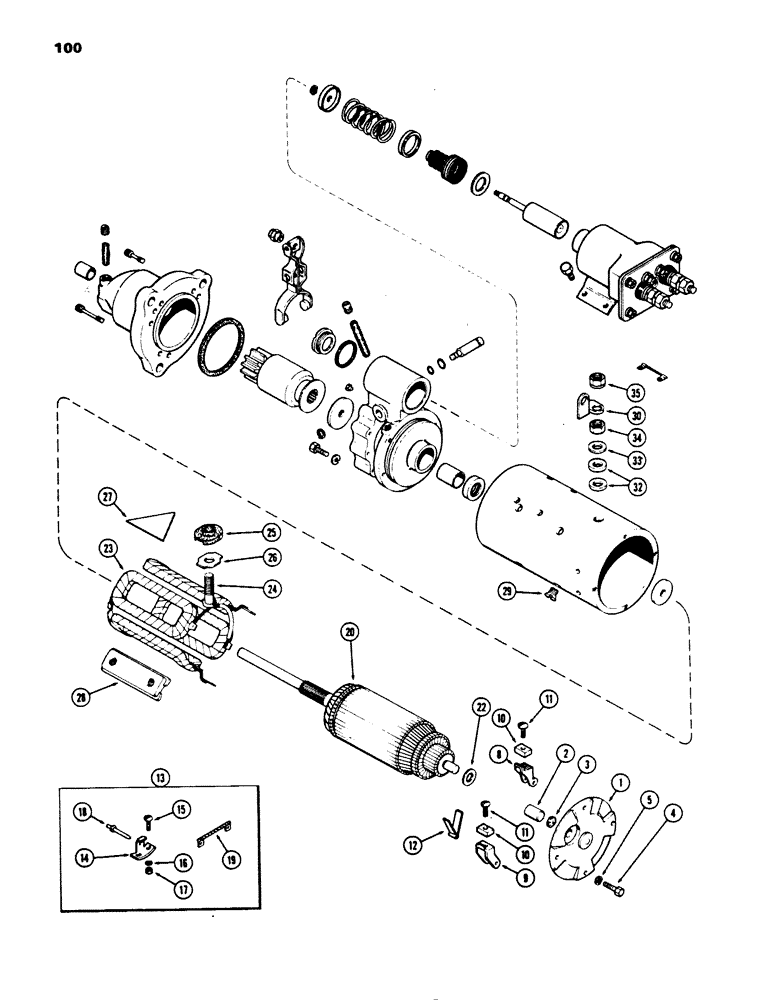

Схема запчастей Case 850B - (100) - L106562 STARTER (06) - ELECTRICAL SYSTEMS
1
10
30
13
22
15
12
23
29
18
9
16
14
28
32
35
26
3
10
34
17
4
33
25
11
8
11
19
5
2
27
20
24

Артикул

Название

Примечание

Количество

L106562

STARTER MOTOR

STARTER ASSEMBLY - engine (New) (Delco-Remy #1113534), Includes: Ref.#s1 - 77

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

1

A45003

FRAME

FRAME ASSEMBLY - commutator end, Included: Ref.#2 & 3

1шт.

2

A45152

BUSHING

BUSHING - 9/16 x 11/16 x 3/4" (14.29 x 17.46 x 19.05 MM)

1шт.

3

A47133

WICK

WICK - oil (felt pad)

1шт.

4

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Frame to body Hex, 1/4"-28 x 1", G5

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

R21590

HOLDER

HOLDER - brush, insulated

2шт.

9

A40217

HOLDER

HOLDER - brush, grounded

2шт.

10

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush, #8-32 x 13/16" self-tapping

4шт.

12

R15025

SPRING

SPRING - brush tension

4шт.

13

A47072

BRUSH, COMMUTATOR

BRUSH BRUSH SUPPORT KIT - starter, Includes: Ref.#s14 - 19

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

15

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW -support to body, #10 x 3/4" NF truss head

4шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

17

129-17

NUT,Hex, #10 - 24

NUT - #10 NF hex

4шт.

18

A47260

PIN

PIN - brush holder

1шт.

19

R15030

ELECTRICAL WIRE

WIRE LEAD - brush

1шт.

20

A40909

ARMATURE

ARMATURE - starter

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, commutator end, 9/16 x 1 x 1/16" (14.29 x 25.4 x .59 mm)

1шт.

23

A43860

COIL

COIL ASSEMBLY - field, Includes: Ref.#24

1шт.

24

A40896

STUD

STUD - field terminal

1шт.

A41925

BUSHING

BUSHING ASSEMBLY - inner, field terminal stud insulating, Includes: Ref.#s25 & 26

1шт.

25

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

26

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

27

A41977

RUBBER INSULATOR

INSULATOR - field ocil

1шт.

28

R15115

SHOE

SHOE - pole

4шт.

29

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoes, 3/8 x 5/8" NF. flat slotted head

8шт.

30

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field terminal to solenoid

1шт.

32

D30005

INSULATOR

INSULATOR - field stud, outer, 1.2 x 1 x 3.32" (12.7 x 25.4 x 2.38 mm)

2шт.

33

D30006

WASHER

WASHER - terminal stud, 1/2 x 7/8 x 1/32" (12.7 x 22.23 x 0.79 mm)

1шт.

34

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, , Terminal stud Jam, 1/2"-13, G5

1шт.

35

A47890

NUT

NUT - terminal stud, 1/2" NC special

1шт.

Выбрано товаров: 35
