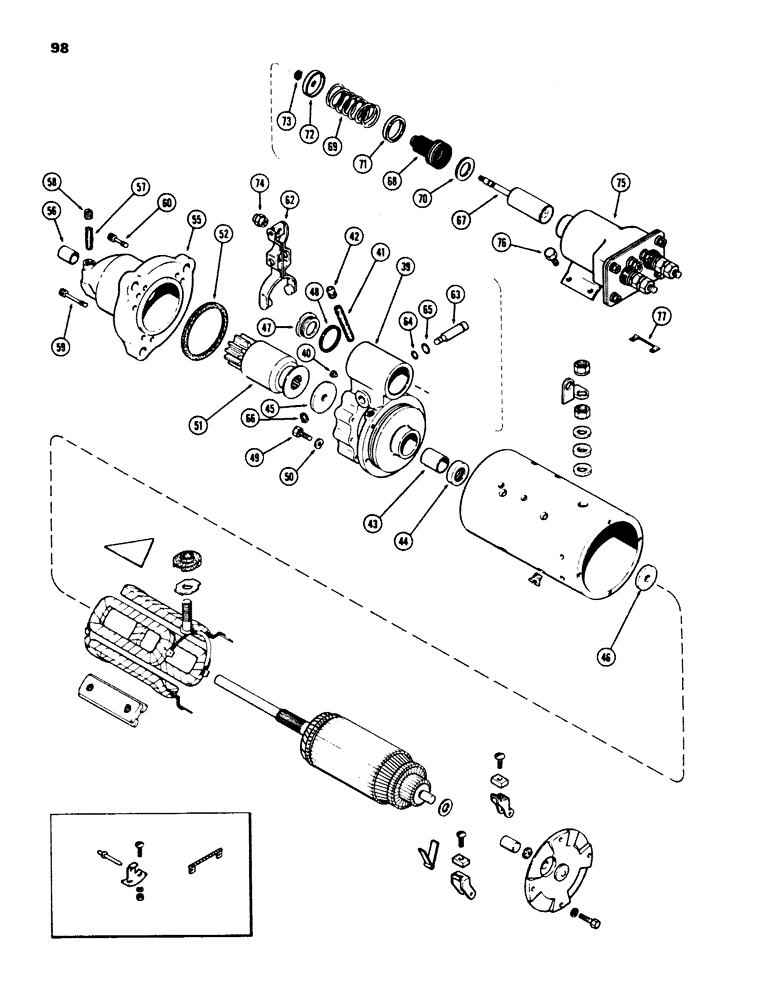

Запчасти Case 850B (098) - R46156 STARTER (06) - ELECTRICAL SYSTEMS

R46156

STARTING MOTOR

STARTER ASSEMBLY - (JI Case Installed) (Delco-Remy #1113535) (Order L106562, Fig. 100), Includes: Ref.#s1 - 77

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

39

A47896

HOUSING

HOUSING ASSEMBLY - shift lever, Includes: Ref.#s40 - 45

1шт.

40

A47897

PLUG

PLUG

1шт.

41

A47888

WICK

WICK - oil

1шт.

42

A47889

PLUG

PLUG - oil wick

1шт.

43

A47261

BUSHING

BUSHING - armature (Replaces A47842)

1шт.

44

R21582

OIL SEAL

SEAL - oil, 13/16 x 1-3/8 x 3/8" (20.64x 34.93 x 9.53 mm)

1шт.

45

R15145

DISC

WASHER - brake, 7/16 x 1-7/8 x 3/16" (11.11 x 47.63 x 4.76 mm)

1шт.

46

A40892

WASHER

WASHER - thrust, drive end

1шт.

47

R21587

PLUG

PLUG - housing

1шт.

48

A41924

GASKET

GASKET - plug

1шт.

49

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Housing to body Hex, 1/4"-28 x 1", G5

5шт.

50

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

51

47523

DRIVE ASSEMBLY - starter pinion (Replaces A47532)

1шт.

52

R21562

GASKET

GASKET - drive housing to drive end

1шт.

55

A44340

HOUSING

HOUSING ASSEMBLY - drive end, Includes: Ref.#s56 - 58

1шт.

56

A47257

BUSHING

BUSHING - 5/8 x 3/4 x 7/8" (15.88 x 19.05 x 22.23 mm)

1шт.

57

R15023

WICK

WICK - oil

1шт.

58

221-1041

PLUG

PLUG - 1/8" PT, slotted head

1шт.

59

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing, 5/16 x 1-1/2" NC socket head

5шт.

60

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing, 5/6 x 7/8" NC socket head

1шт.

62

D32547

LEVER

LEVER - shift control

1шт.

63

A42199

PIN

SHAFT - pivot, shift lever

1шт.

64

A47258

O-RING,0.369" ID x 0.515" OD

0-RING - shaft, 1/4 ID x 1/16" width (6.35 ID x 1.59 mm width)

1шт.

65

A47259

O-RING,0.244" ID x 0.391" OD

0-RING - shaft, 3/8 ID x 1/16" width (9.53 ID x 1.59 mm width)

1шт.

66

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft retaining #37, Ext

1шт.

67

A42309

PLUNGER

PLUNGER - solenoid

1шт.

68

A42308

BOOT

BOOT - plunger (rubber)

1шт.

69

A41242

SPRING

SPRING - plunger return

1шт.

70

A41922

WASHER

WASHER - spring seat, 13/16 x 1-3/8 x 1/32" (20.64 x 34.93 x 0 79 mm)

1шт.

71

A43380

BACK-UP RING

RETAINER - plunger spring, inner 1-3/16" hole (30.16 mm)

1шт.

72

A43419

SEAT

RETAINER - plunger spring, outer 3/8" hole (9.53 mm)

1шт.

73

G46146

SNAP RING,#37, Ext

RING, Snap, , retainer to plunger #37, Ext

1шт.

74

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to lever, 5/16" NF special

1шт.

75

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - starter

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid to body, 1/4 x 3/8" NF hex

4шт.

77

A42408

ELECTRICAL WIRE

WIRE LEAD - ground, solenoid

1шт.
