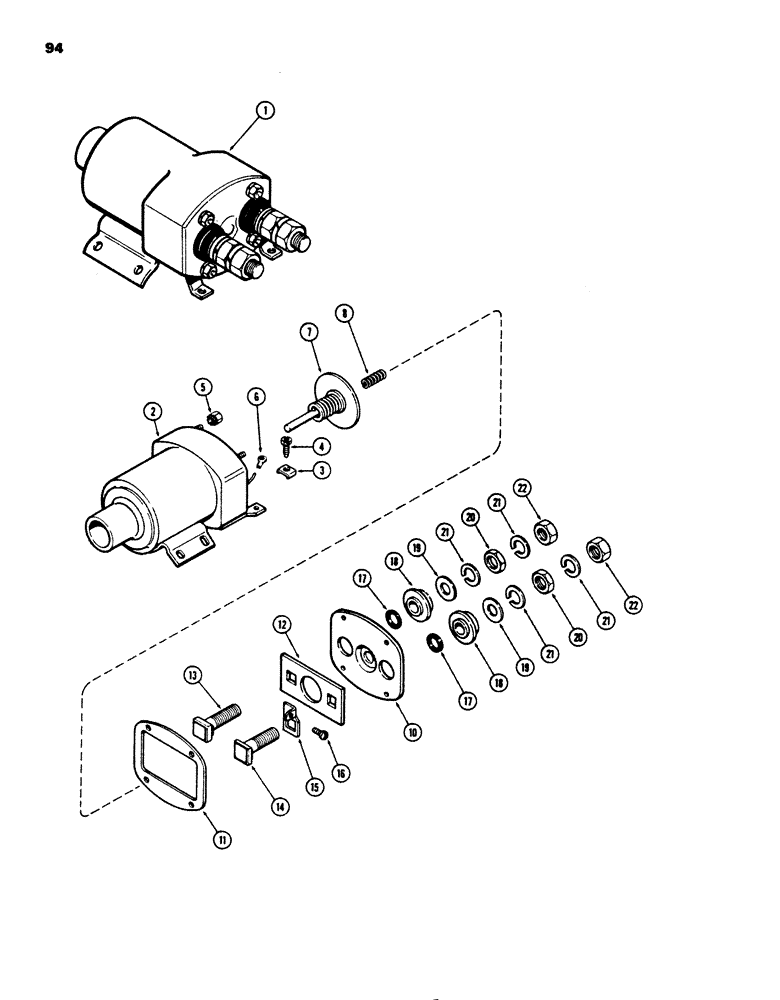

Запчасти Case 850B (094) - R42376 SOLENOID (06) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSEMBLY - starter (Delco #1119848), Includes: Ref.#s2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - solenoid

1шт.

3

A42407

CLAMP

CLIP - terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

-terminal clip

1шт.

5

D32500

NUT

- plate to case studs (with shakeproof washer)

4шт.

6

A42408

ELECTRICAL WIRE

WIRE - ground

1шт.

7

D32498

CONTACT

DISC ASSEMBLY - contact

1шт.

8

A42411

VALVE SPRING

SPRING - contact disc return

1шт.

A42412

PLATE

ASSEMBLY - terminal and case, Includes: Ref.#s10 - 22

1шт.

10

A42410

PLATE

- terminals and case cover

1шт.

11

A42260

GASKET

-, Serial Range: plate-case

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

13

A42413

STUD

- battery term (1/5/8" thread length)

1шт.

14

D32506

STUD

- starter term (1-7/8" thread length)

1шт.

15

D29910

SUPPORT

TERMINAL- coil lead

1шт.

16

175-56

SCREW - coil lead ( #6-32 x 3/16" truss head) Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- term plate insulators

2шт.

18

A43701

BUSHING

- term studs insulators (Replaces A42409)

2шт.

19

D30004

WASHER

- terminal studs (insulation)

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs Jam, 1/2"-13, G5

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - term. studs ( lock) 1/2"

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs 1/2"-13, G5

2шт.
