Запчасти Case 850B (088) - R40563 STARTER (06) - ELECTRICAL SYSTEMS

R26136

STARTER MOTOR

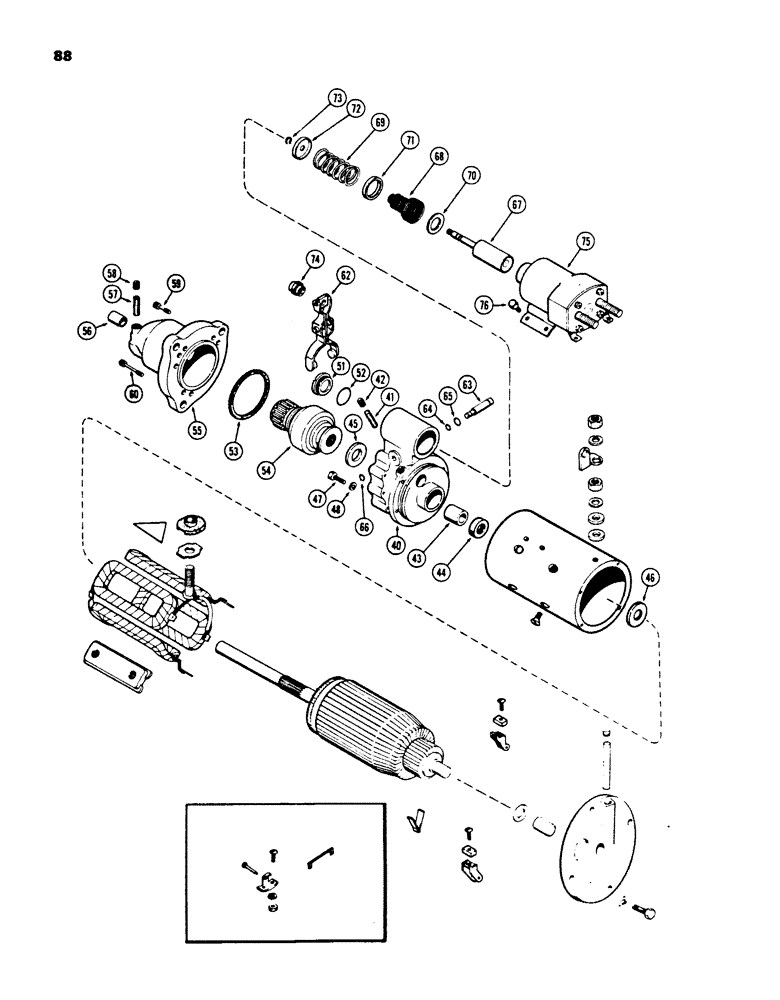

STARTER ASSEMBLY - (Continued from Fig. 86)

1шт.

40

R21579

HOUSING

ASSEMBLY - shift lever, Includes: Ref.#s41 - 45

1шт.

41

R15023

WICK

- oil

1шт.

42

221-1041

PLUG

- oil hole (1/8" PTslotted headless)

1шт.

43

A47848

BUSHING

- (13/16 x 1 x 1-1/4")

1шт.

44

R21582

OIL SEAL

- oil (13/16 x 1-3/8 x 3/8")

1шт.

45

R15145

DISC

WASHER - brake

1шт.

46

A40892

WASHER

- thrust

1шт.

47

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

48

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

51

R21587

PLUG

- lever housing

1шт.

52

A41924

GASKET

O-RING - plug

1шт.

53

R21562

GASKET

- drive housing

1шт.

54

A47073

DRIVE

ASSEMBLY - starter pinion (Replaces A42397)

1шт.

55

A44340

HOUSING

ASSEMBLY - drive end, Includes: Ref.#s56 - 58

1шт.

56

A47257

BUSHING

- drive end housing

1шт.

57

R15023

WICK

- oil

1шт.

58

221-1041

PLUG

- oil hole (1/8" PT, slotted headless)

1шт.

59

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing (5/16 x 7/8" NC socket head)

1шт.

60

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing (5/16 x 1-1/2" NC socket head)

1шт.

62

D32547

LEVER

- drive control

1шт.

63

A42199

PIN

SHAFT - pivot, shift lever

1шт.

64

A47259

O-RING,0.244" ID x 0.391" OD

- shaft

1шт.

65

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

0-RING - shaft

1шт.

66

G46146

SNAP RING,#37, Ext

RING, Snap, , pivot shaft retaining #37, Ext

1шт.

67

A42309

PLUNGER

- solenoid

1шт.

68

A42308

BOOT

- plunger (rubber)

1шт.

69

A41242

SPRING

- plunger

1шт.

70

A41922

WASHER

- plunger

1шт.

71

A43380

BACK-UP RING

RETAINER - spring, inner, 1-3/16" (30.2mm) hole

1шт.

72

A43419

SEAT

RETAINER - spring, outer, 3/8" (9.5 mm) hole

1шт.

73

G46146

SNAP RING,#37, Ext

RING, Snap, , plunger retaining #37, Ext

1шт.

74

A43856

NUT

- lock (5/16" NF)

1шт.

75

A42376

SWITCH

SOLENOID ASSEMBLY - starter (See Fig. 94)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting (1/4 x 3/8" NF hex)

4шт.
