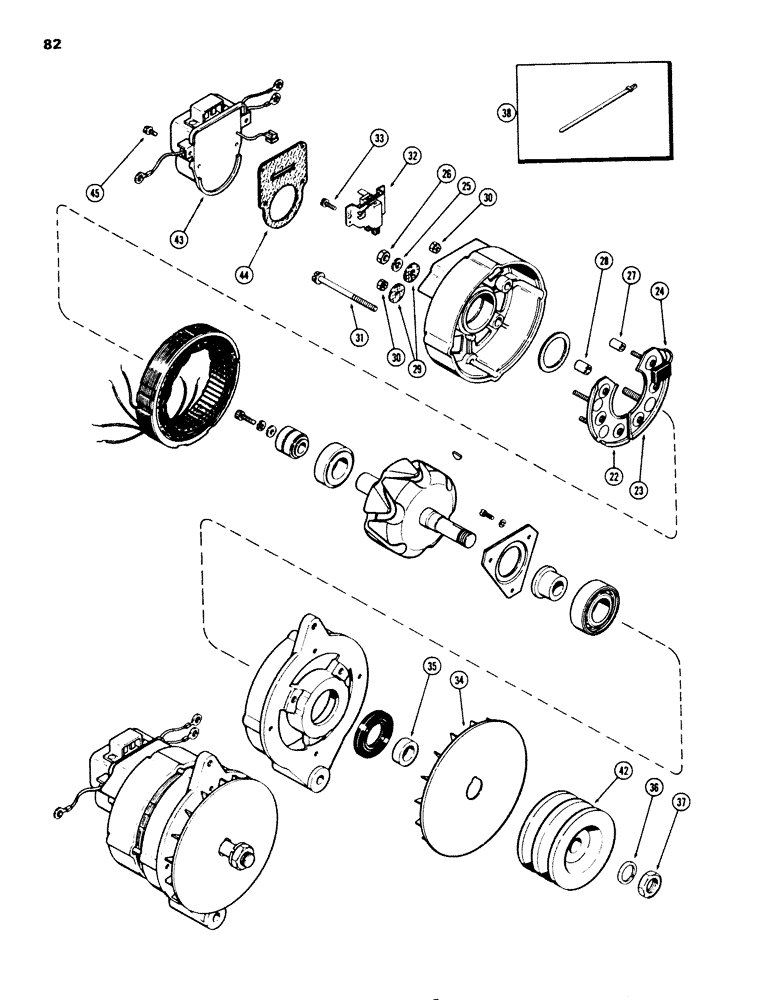

Запчасти Case 850B (082) - R36587 ALTERNATOR, 42 AMP-24 VOLT, U.S. STANDARD EXTERNAL EXTERNAL THREADS (06) - ELECTRICAL SYSTEMS

A47090

ALTERNATOR

ALTERNATOR ASSEMBLY - (Continued from Fig. 80), Includes: Ref.#s22 - 38

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

22

A47165

DIODE

RECTIFIER ASSEMBLY - negative, with diodes and studs, Serial Range: (cathode-plate)

1шт.

23

A47164

DIODE

RECTIFIER ASSEMBLY - positive, with diodes and studs, Serial Range: (cathode-plate)

1шт.

24

A45253

DIODE ELEMENT

DIODE ASSEMBLY - trio

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex

3шт.

26

129-141

JAM NUT,Jam, 1/4"-20, G5

NUT, Jam, 1/4"-20, G5

1шт.

27

A45254

SPACER

SPACER - trio diode

1шт.

28

A44771

SLEEVE CYLINDER

SLEEVE - insulator, 1/4 x 5/16 x 1/2" (6.4 x 7.9 x 127 mm)

1шт.

28

A47156

SLEEVE CYLINDER

SLEEVE - insulator, 3/16 x 1/4 x 3/8" (4.8 x 6/4 x 9.5 mm)

1шт.

29

A47613

WASHER

WASHER - insulating, 1/4 x 3/4 x 1/16" (6.4 x 19.1 x 1.6 mm)

2шт.

29

A47612

WASHER

WASHER - insulating, 3/16 x 3/4 x 1/16" (4.8 x 19.1 x 1.6 mm)

2шт.

30

A41060

LOCK NUT

NUT - #10-24 hex, with eternal lock shakeproof washer

3шт.

31

A45030

BOLT

BOLT - thru (#10 NF x 4")

4шт.

32

A41048

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY - with holder

1шт.

33

A44780

SCREW

SCREW - brush holder to rear housing

2шт.

34

A42431

FAN

FAN - ventilating

1шт.

35

A47162

SPACER

SPACER - fan

1шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Pulley 5/8"

1шт.

37

A41035

NUT

NUT - pulley retaining

1шт.

38

T54520

STRAP

WRAP - wire locking (nylon tie)

2шт.

42

A41361

PULLEY

PULLEY - alternator

1шт.

43

A47167

REGULATOR

REGULATOR ASSEMBLY - voltage

1шт.

THE RED WIRE WAS REMOVED

1шт.

44

A47159

GASKET

GASKET - regulator to rear housing

1шт.

45

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

SCREW - regulator mounting (#8-32 x 1/2" self-tapping)

2шт.

45

187-1089

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - regulator mounting (#8-32 x 3/4" slotted hex washer head)

2шт.
