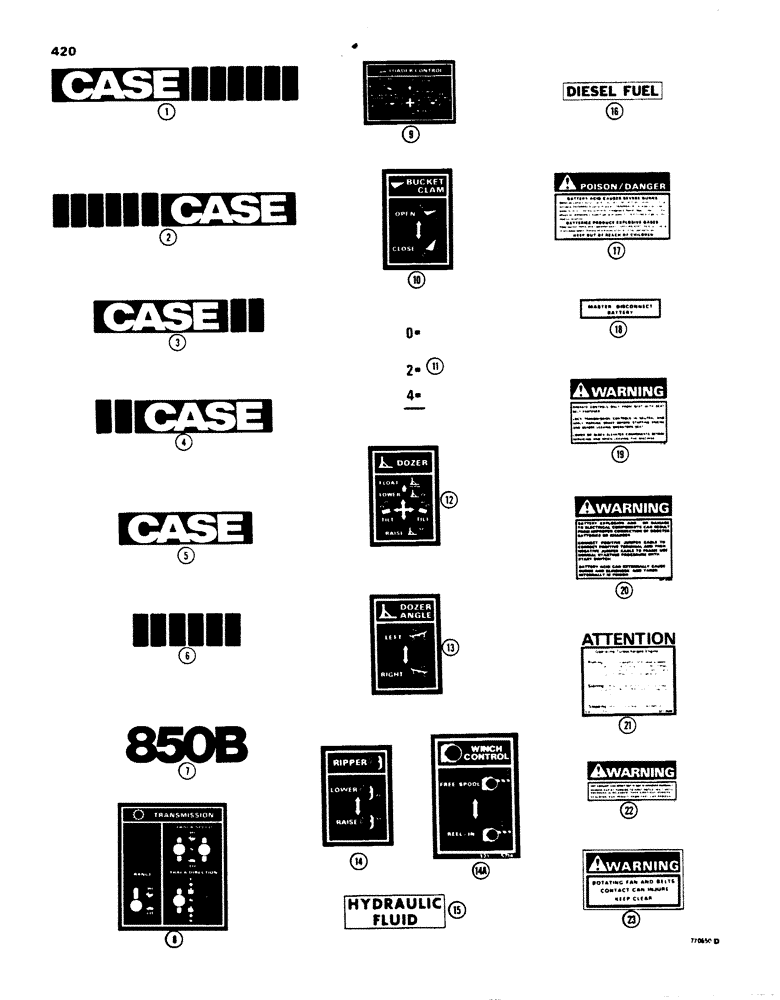

Запчасти Case 850B (420) - DECALS (05) - UPPERSTRUCTURE CHASSIS

R42951

DECAL

KIT - decal, Includes: Ref.#1 - 33

1шт.

1

321-5293

DECAL

- Case, left-hand, 6" (152 mm), dozer models

1шт.

2

321-5292

DECAL

- Case, right-hand, 6" (152 mm), dozer models

1шт.

3

321-5295

DECAL

- Case, left-hand, 5" (127 mm), loader models

1шт.

4

321-5296

DECAL

- Case, right-hand, 5" (127 mm), loader models

1шт.

5

321-5031

DECAL

- Case, rear of seat frame, 6" (152 mm)

1шт.

6

321-3116

DECAL

- treadmark, 6" (152 mm), used with Ref.# 5

2шт.

7

321-3282

DECAL

- 850B

2шт.

8

321-4177

DECAL

- Transmission, shift pattern

1шт.

9

321-4396

DECAL

- Loader Control pattern

1шт.

10

321-4184

DECAL

- Bucket Clam control pattern

1шт.

11

321-1706

DECAL

- clam bucket position indicator

1шт.

12

321-4181

DECAL

- dozer control pattern

1шт.

13

321-4182

DECAL

- dozer Angle control pattern

1шт.

14

321-4185

DECAL

- Ripper control pattern

1шт.

14a

321-5714

DECAL

- winch control

1шт.

15

321-229

DECAL

- Hydraulic Fluid

1шт.

16

321-230

DECAL

- Diesel Fuel

1шт.

17

321-2996

DECAL

- Poison/Danger, battery

1шт.

18

321-2392

DECAL

- Master Disconnect

1шт.

19

321-4188

DECAL

- Warning, operate from seat

1шт.

20

321-4190

DECAL

- Warning, battery

1шт.

21

321-2605

DECAL

- Attention, Operating Turbocharged Engine

1шт.

22

321-37

DECAL - radiator pressure

1шт.

23

321-3596

DECAL

- Warning, fan

2шт.

R42951

DECAL

KIT - decal, continued

1шт.

24

321-3294

DECAL

- Horn

1шт.

25

321-4227

DECAL

- Warning, safety strut usage

2шт.

26

321-4289

DECAL

- safety strut storage

1шт.

27

321-3705

DECAL

- Warning, Before Starting Engine

1шт.

28

321-4398

DECAL

- Master Maintenance Schedule

1шт.

29

321-4192

DECAL

- Warning, ROPS modification

1шт.

30

321-1841

DECAL

- Ether Starting Aid

1шт.

31

321-2435

DECAL

- Ether Starting Aid

1шт.

32

321-4189

DECAL

- Warning, jump start procedure, if used

1шт.

32a

321-5974

DECAL

- Warning, jump start procedure, used with R45469 circuit breaker mounting plate, see Fig. 120 for identification

1шт.

33

321-4614

TAG

- Do Not Operate

1шт.

34

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Used with 321-4189 decal only Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

35

195-21

WASHER,5/16"

- flat, , Used with 321-4189 decal only 5/16"

1шт.

36

321-3134

DECAL

- Case, RH, 6" (152 mm), dozer models, if used, see Ref.# 2

1шт.

37

321-3135

DECAL

- Case, LH, 6" (152 mm), dozer models, no longer available, see Ref.# 1

1шт.

38

321-3089

DECAL

- Case, 6" (152 mm), if used, see Ref.#5

1шт.

39

321-2427

EMBLEM

DECAL - Case, 6" (152 mm), loader models, if used, see Ref.#s3 and 4

2шт.

40

321-2101

DECAL

- replace oil filter

1шт.

41

321-4739

EMBLEM

- Case

1шт.

42

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, 1/4", emblem

2шт.

43

R38893

CASE

MANUAL BOX - operators

1шт.

44

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16"

3шт.

45

R40745

STRAP

TIE STRAP - operators manual

1шт.
