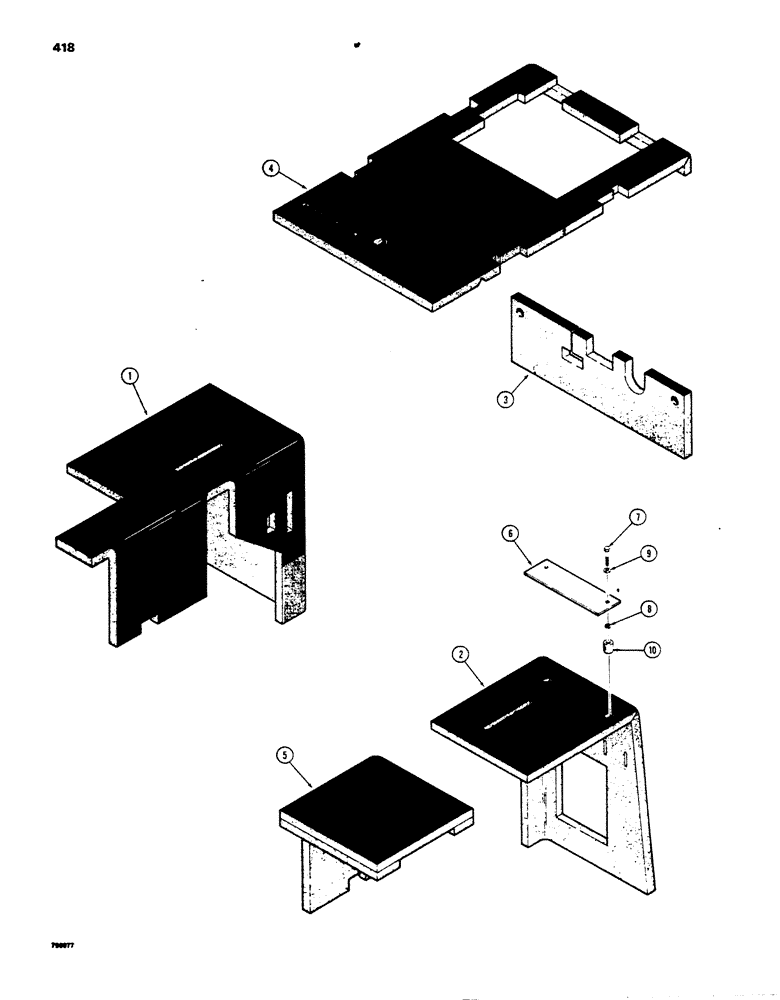

Запчасти Case 850B (418) - CAB, NOISE REDUCTION PADS (05) - UPPERSTRUCTURE CHASSIS

1

R43792

PAD - fuel tank

1шт.

2

R43793

PAD - hydraulic reservoir, front

1шт.

3

R43795

PAD - heel plate

1шт.

4

R43796

PAD - tool box cover and seat mounting plate

1шт.

5

R43794

PAD - hydraulic reservoir, rear

1шт.

6

R43844

PLATE - mounting, control valve decals

1шт.

7

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

10

F21028

BUSHING

SPACER - mounting plate

2шт.
