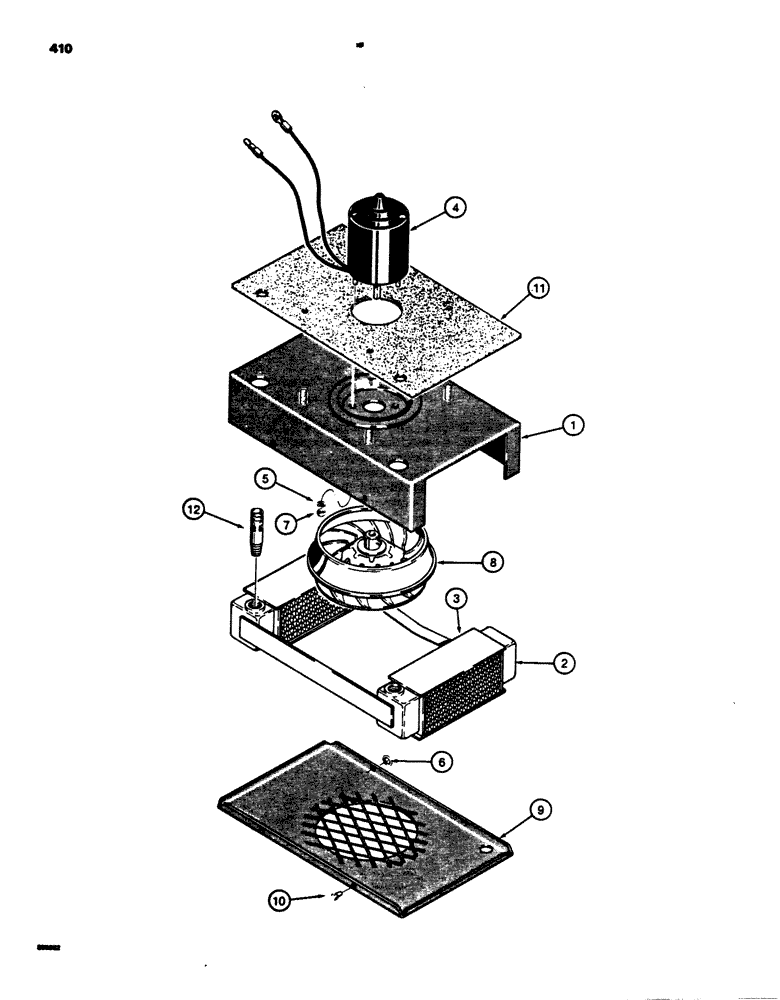

Запчасти Case 850B (410) - CAB - NON - PRESSURIZED, HEATER ASSEMBLY (05) - UPPERSTRUCTURE CHASSIS

R40468

HEATER

ASSEMBLY - cab, Includes: Ref. #1 - 12

1шт.

1

D63391

COVER - top, heater

1шт.

2

D63393

CORE

- heater

1шт.

3

D83180

SPACER

- heater core

4шт.

4

D83181

MOTOR, ELECTRIC

MOTOR - heater

1шт.

5

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

6

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

7

129-37

NUT,#10-32

2шт.

8

NSS

NOT SOLD SEPARAT

FAN - heater (Replaces D63396)

1шт.

9

D63392

COVER

- lower

1шт.

10

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

- hex, self-tapping, no. 8 - 32 NC x 1/2"

4шт.

11

D63394

GASKET

- top cover

1шт.

12

D65132

FITTING

NIPPLE - special

2шт.
