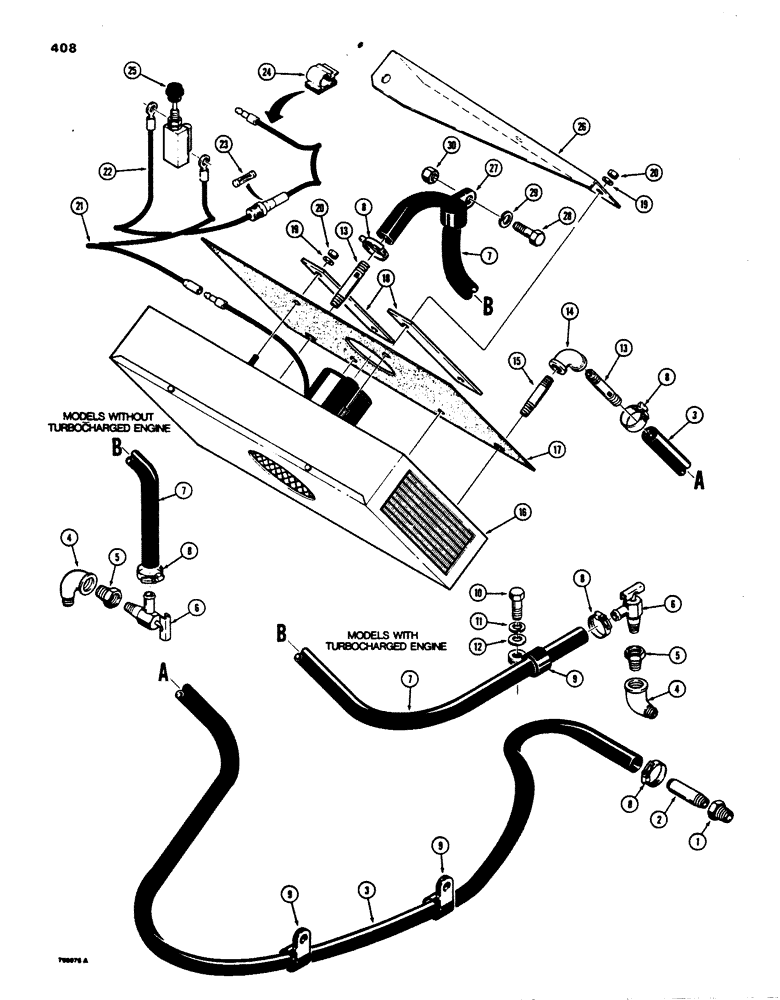

Запчасти Case 850B (408) - CAB - NON - PRESSURIZED, HEATER SYSTEM (05) - UPPERSTRUCTURE CHASSIS

1

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.

2

A19940

PIPE

NIPPLE - straight, 3/8" NPT

1шт.

3

R40427

HOSE - water pump to heater, 66" (1676 mm) long, cut from A42610, see below

1шт.

4

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

STREET ELBOW - 90 degree

1шт.

5

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2" NPT x 3/8" NPT

1шт.

6

A16764

VALVE

SHUTOFF VALVE - manifold

1шт.

7

R40428

HOSE - water manifold to heater, 51" (1295 mm) long, cut from A42610, see below

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

4шт.

9

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose, one used on models with turbocharger; two used on models without turbochargers

1-2шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

13

D65132

FITTING

NIPPLE - special, supplied with heater assembly, see Fig. 410

2шт.

14

221-1376

ELBOW,90 Degree, 3/8" NPT

- 90 degree

1шт.

15

221-1164

HYD CONNECTOR

NIPPLE - pipe, 3/8" x 2"

1шт.

16

REF

INSTRUCTION

HEATER - cab, parts list Fig. 410

1шт.

17

D63394

GASKET

- heater, supplied with heater assembly, see Fig. 410

1шт.

18

R43127

SPACER - heater mounting

2шт.

19

195-102

WASHER,1/4"

- flat, , plated, 4 used on models without turbocharger; 16 used on models with turbocharger 1/4"

16шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

21

R40429

CABLE

- heater

1шт.

22

R40435

CABLE

- with fuse, Includes: Ref#23

1шт.

23

223-10

FUSE,10 Amp, Type 3AG

- AGC-10

1шт.

24

F43611

CLIP

CLAMP - adhesive, wire

1шт.

25

L33827

SWITCH

- heater

1шт.

26

R43128

BRACKET

- heater switch

1шт.

27

R21385

CLAMP

- hose, attaches to hood bracket, used on models without turbocharger only

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

A42610

LARGE HOSE

HOSE - 50' (15.2 m) roll, not shown

1шт.
