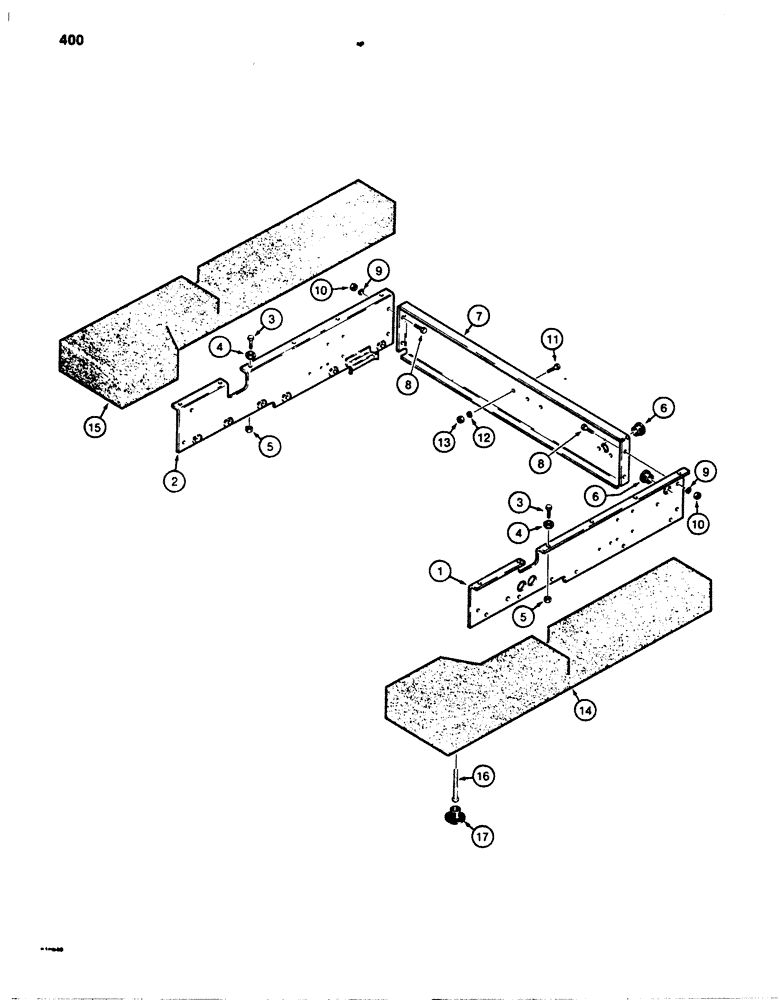

Запчасти Case 850B (400) - CAB - PRESSURIZED, ROOF AND MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

R44065

BRACKET - mounting, right-hand

1шт.

2

R44067

BRACKET - mounting, left-hand

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

4

F42778

WASHER

- special

12шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

12шт.

6

353-478

PLUG

GROMMET - 1" (25 mm) diameter hole; 1 used on loader models, 2 used on dozer models

1-2шт.

7

R44077

D PANEL

BRACKET - windshield wiper mounting, front

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

14

R44200

PAD - vinyl covered, right-hand

1шт.

15

R44201

PAD - vinyl covered, left-hand

1шт.

16

173-233

MACHINE SCREW - no. 10 - 24 NC x 3-1/2", plated

6шт.

17

R37161

RETAINER

- headliner pads

6шт.
