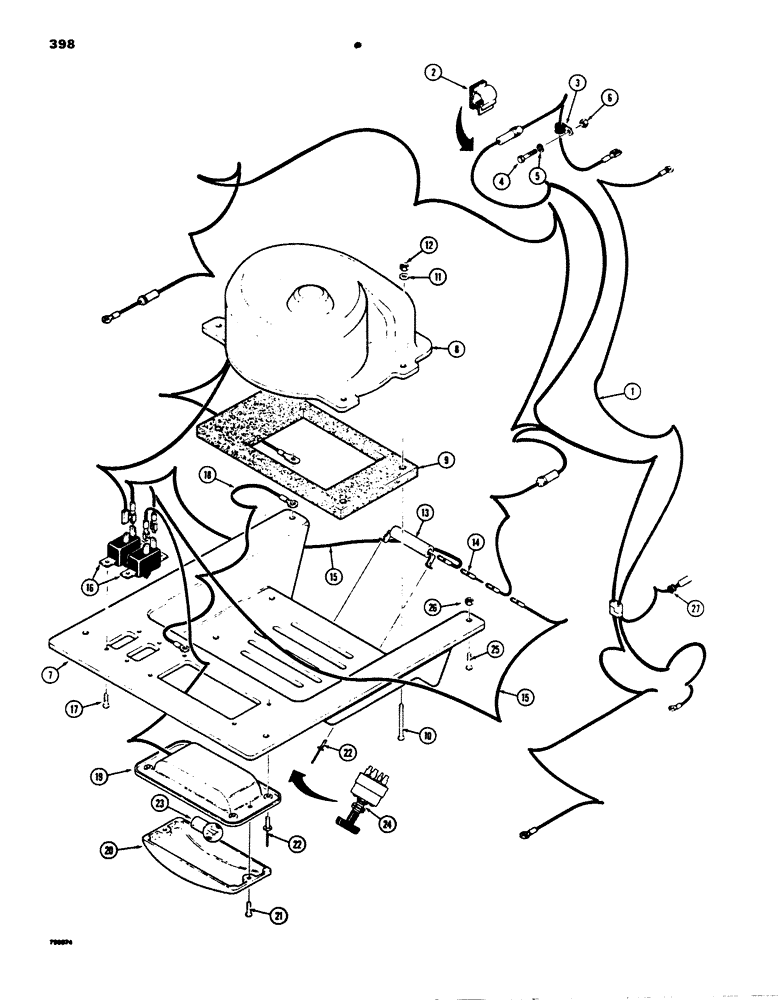

Запчасти Case 850B (398) - CAB - NON - PRESSURIZED, WIRING, DEFROSTER, AND DOME LAMP (05) - UPPERSTRUCTURE CHASSIS

1

D88800

HARNESS - wire, cab

1шт.

2

D86567

CLAMP - adhesive, wrie

2шт.

3

A38799

CLAMP

- wire

1шт.

4

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

- hex head, 1/4" - 20 NC x 3/4"

1шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

7

R43117

COVER

- defroster

1шт.

8

F43618

DIFFUSER

DEFROSTER - cab

1шт.

9

F43619

SEAL

- defroster

1шт.

10

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

- pan head, slotted, no. 10 - 24 NC x 1-1/2", plated

4шт.

11

195-516

WASHER,#12

- flat, no. 10

4шт.

12

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

13

F43625

RESISTOR

- defroster, 25W

1шт.

14

A34863

ADAPTER

CONNECTOR - electrical

1шт.

15

A34860

ELECTRICAL WIRE

CABLE -, Serial Range: resistor-switch

2шт.

16

D75876

IGNITION SWITCH

SWITCH - defroster and dome lamp control

2шт.

17

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- Phillips head, no. 6 - 32 NC x 1/2"

4шт.

18

R39545

CABLE

- dome lamp, ground

1шт.

F89772

LAMP

DOME LAMP ASSEMBLY - cab, replace 12 volt bulb with 24 volt bulb below, Includes: Ref.#19 - 21

1шт.

19

R41377

LAMP

BODY - dome lamp

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - dome lamp

1шт.

21

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

MACHINE SCREW - no. 8 - 32 NC x 1/4"

2шт.

22

151-527

POP RIVET - 5/32" x 1/2" Pop, 5/32" x .517"

6шт.

23

D71459

LAMP

BULB - 24V, no. 1591

1шт.

24

S225028

IGNITION SWITCH

SWITCH - front wiper

1шт.

25

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- Phillips head, no. 10 - 24 NC x 5/8"

4шт.

26

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

27

353-700

BUSHING

GROMMET - rubber, harness

1шт.
