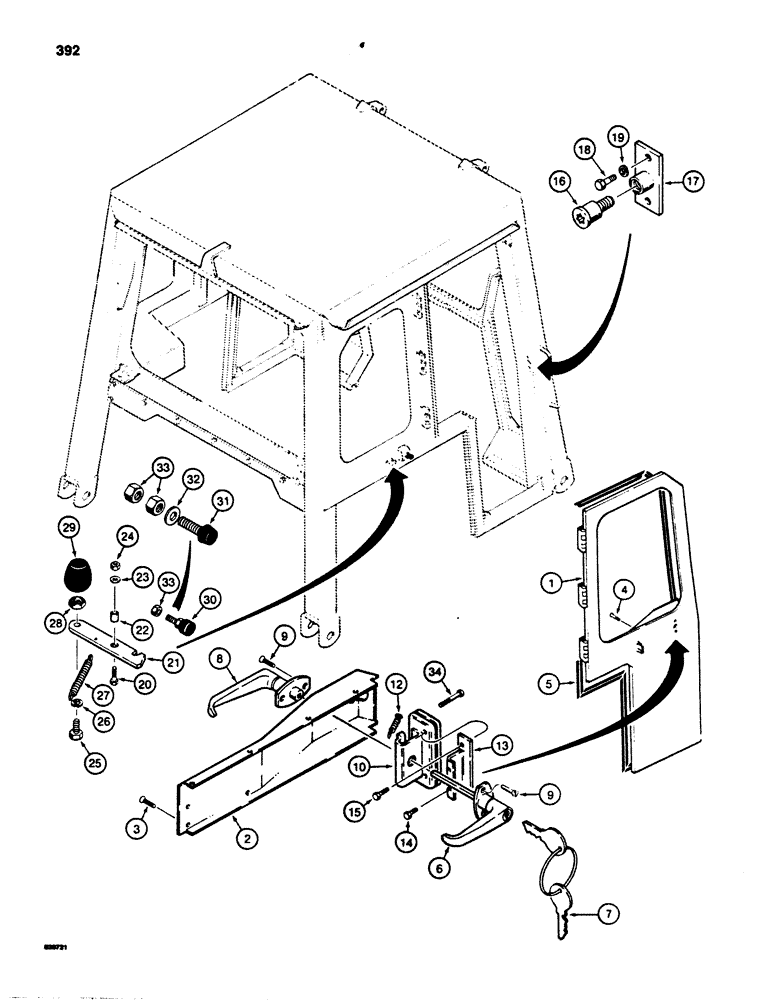

Запчасти Case 850B (392) - CAB, DOORS AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

D88785

DOOR ASSEMBLY - left-hand, not shown

1шт.

D88792

DOOR ASSEMBLY - right-hand, Includes: Ref.#1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab

1шт.

2

N6040

COVER - latch, right-hand door

1шт.

2

N6041

COVER - latch, left-hand door, not shown

1шт.

3

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

- sheet metal, No. 8 x 3/8" long, plated

7шт.

4

179-100

MACHINE SCREW - oval head slotted, No. 10 - 24 NC x 3/4", for door lining retainers

5шт.

5

D88780

SEAL - door, 162" (4115 mm) long

2шт.

6

D88771

LOCK

HANDLE - door, outside, includes keys, Includes: Ref.#7

2шт.

7

D88772

KEY

- door handle, set of two

1шт.

8

D88773

HANDLE

- door, inside

2шт.

9

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/4", plated

8шт.

10

D88776

LATCH ASSY.

LATCH - door, right-hand

1шт.

11

D88774

LATCH ASSY.

LATCH - door, left-hand, not shown, Includes: Ref.#12

1шт.

12

D88775

SPRING

- D88776 and D88774 door latches

1шт.

13

N6645

RETAINER - door latch, if used

2шт.

14

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

- hex head, 1/4" - 20 NC x 3/4", plated

4шт.

16

F64345

HARDWARE

STRIKER - door

2шт.

17

D88790

PLATE - mounting, door striker

2шт.

18

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

- hex head, 1/4" - 20 NC x 3/4"

2шт.

21

D88793

LATCH

- for open door

2шт.

22

D88794

BUSHING

- latch

2шт.

23

195-102

WASHER,1/4"

- flat, 1/4"

2шт.

24

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

25

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex head, 3/8" - 16 NC x 3/4", plated

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

D88775

SPRING

- latch

2шт.

28

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

NUT - hex, self-locking, 3/8"-16 NC

2шт.

29

D53845

KNOB

- for open door

2шт.

30

REF

INSTRUCTION

BUMPER - rubber, with welded nut, no longer available, order Ref.# 31 bumper and necessary hardware

2шт.

31

N7673

BUMPER

- rubber, without welded nut

2шт.

32

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

2-4шт.

34

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

- hex head, 1/4" - 20 NC x 3/4", plated

4шт.
