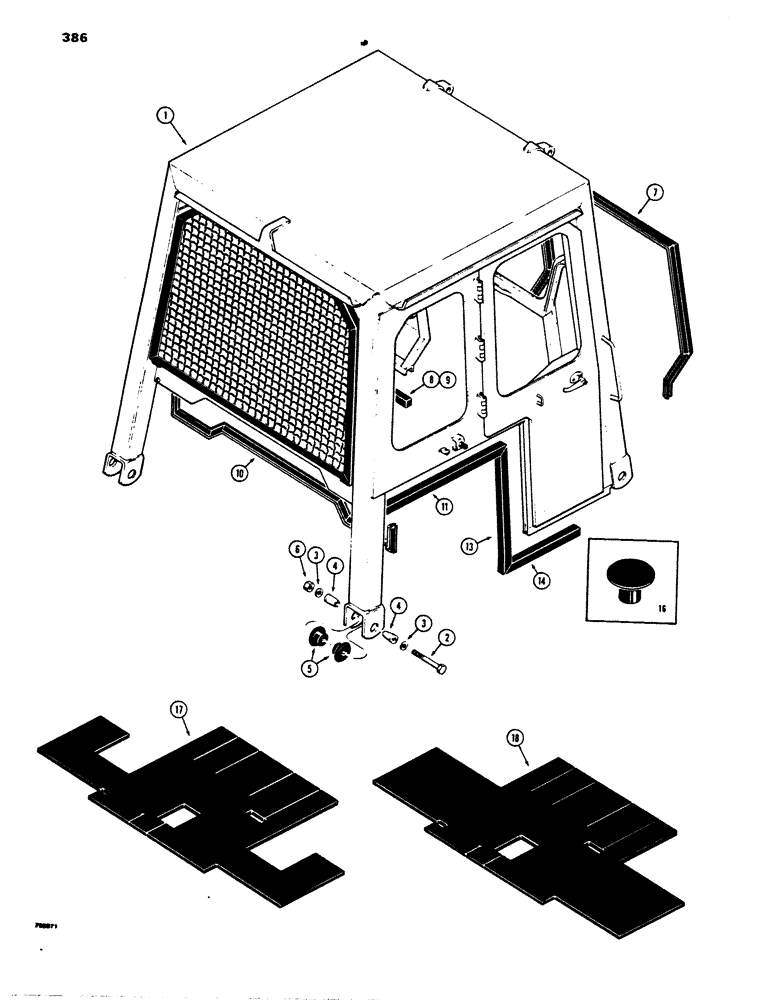

Запчасти Case 850B (386) - CAB-NON-PRESSURIZED, MOUNTING AND FLOOR MATS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

CAB - operators, machinery item, see Fig. 2 for ordering

1шт.

2

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened, 3/4"

8шт.

4

F44212

MOUNTING PARTS

BUSHING - rubber

8шт.

5

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

INSULATOR - rubber, mounting

8шт.

6

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC, plated

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - cab base, front; loader - 104" (2642 mm) long, dozer - 87" (2210 mm) long, cut from D88783

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - cab base, front, lower, 14-1/2" (368 mm) long, cut from D88781, dozer models only

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - cab base, front, loer, 7-1/2" (190.5 mm) long, cut from D88781, loader models only

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - cab base, rear, 53" (1346 mm) long, cut from D88783

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - below window, right side, 32" (813 mm) long, cut from D88781

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - below window, left side, 22-1/2" (571 mm) long, cut from D88781, not shown

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - behind door, 25" (635 mm) long, cut from D88781

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - below door, 17" (432 mm) long, cut from D88781

1шт.

15

NSS

NOT SOLD SEPARAT

PAD - interior insulating, not available for service, not shown

1шт.

16

R37161

RETAINER

- pad

21шт.

17

N6575

FLOORMAT - loader models only

1шт.

18

N6576

FLOOR MAT

FLOORMAT - dozer models only

1шт.

D88781

SEAL - strip, 50' (15.2 m) long

1шт.

D88783

RUBBER MOUNTING

SEAL - 50' (15.2 m) long

1шт.
