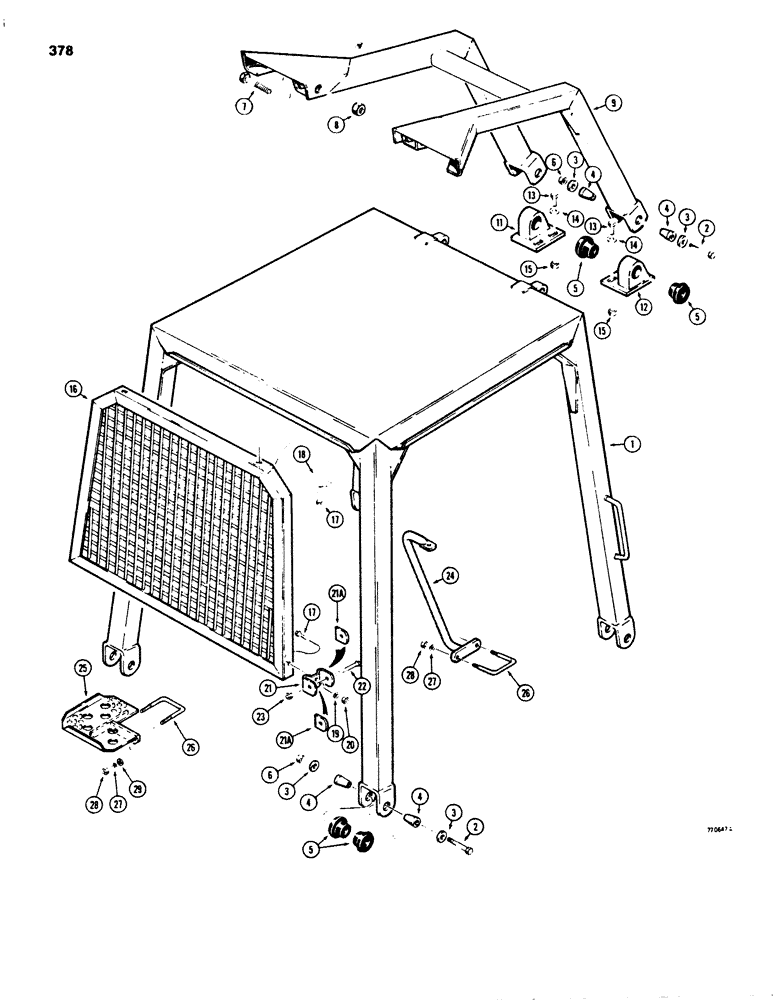

Запчасти Case 850B (378) - ROPS CANOPY AND BRUSH GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

CANOPY - ROP, machinery item, see Fig. 2 for ordering

1шт.

2

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

6шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

12шт.

4

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- mounting

12шт.

5

F44212

MOUNTING PARTS

INSULATOR - rubber, mounting

12шт.

6

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC, plated

6шт.

7

13-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

2шт.

8

230-41116

NUT,1"-8, GA

NUT - hex, self-locking, 1" - 8 NC

2шт.

9

R41125

PROTECTOR

GUARD - brush, also used on cab models

1шт.

11

F93983

BRACKET

- brush guard mounting, left-hand

1шт.

12

F93982

BRACKET

- brush guard mounting, right-hand

1шт.

13

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

15

25-1012

NUT,3/4"-10, G5

4шт.

16

F96608

SCREEN - rear

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

18

R38226

LOCK WASHER

RETAINER - screen

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

21

R40072

CLAMP

- screen mounting

2шт.

21a

R40074

CUSHION ASSY.

INSULATOR - rubber, screen mounting

4шт.

22

113-2428

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

2шт.

23

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

24

R38330

HANDLE

GRAB HANDLE - ROPS frame, used on backhoe models

2шт.

25

R43046

STEP

- backhoe models

1шт.

26

R37009

BOLT

U-BOLT - grab handle and step mounting, used on backhoe models

3шт.

27

92-6

LOCK WASHER,3/8"

used on backhoe models 3/8"

6шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on backhoe models

6шт.

29

D41740

WASHER

- hardened, 3/8", used on backhoe models

2шт.
