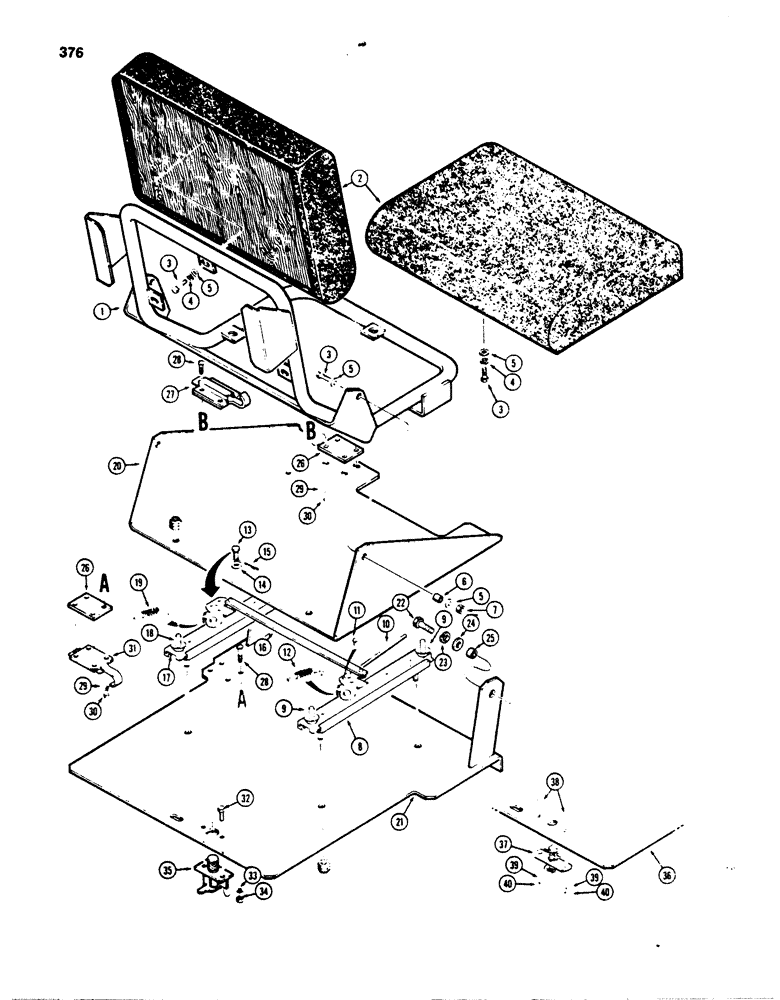

Запчасти Case 850B (376) - SEAT ASSEMBLY, USED ON MODELS WITH BACKHOE (05) - UPPERSTRUCTURE CHASSIS

1

R36830

FRAME

- seat

1шт.

2

R36769

CUSHION

- seat

2шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

195-25

WASHER,3/8"

- flat, 3/8"

10шт.

6

D33551

BUSHING

SPACER - seat mounting

2шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

R27894

RUNNER

SLIDE ASSEMBLY - right-hand, Includes: Ref.#s8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

10

R25577

LEVER

HANDLE - seat adjusting

1шт.

11

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8"

2шт.

12

A45060

SPRING

- seat adjusting

1шт.

13

141-1

CLEVIS PIN,3/16" x .580"

- 3/16" x 9/16"

2шт.

14

195-13

WASHER,#10

- flat, no. 10

2шт.

15

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

16

R35977

BAR

- locking, seat adjustment

1шт.

R40039

SLIDE

ASSEMBLY - left-hand, Includes: Ref.#s17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

18

R27897

SCREW

- special (Replaced NSS)

2шт.

19

A45060

SPRING

- seat adjuster

1шт.

20

R36842

LARGE PLATE

PLATE - pivot, seat

1шт.

21

R36835

PLATE ASSY.

PLATE - seat mounting, uses R25164 fastener

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

25

R36182

SPACER

- seat mounting plate

2шт.

26

R36841

LARGE PLATE

PLATE - seat latch

2шт.

27

S63588

LATCH ASSY.

LATCH - seat position

2шт.

28

169-100

SCREW,Sl Fil Hd, #10 - 24 x 3/4"

- round head slotted, no. 10 - 24 NC x 3/4"

12шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

12шт.

30

129-7

NUT,Hex, #10 - 24

- hex, 3/16" - 24 NC

12шт.

31

R35970

LATCH

- seat position

1шт.

32

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

25-104

NUT,1/4"-20, G5

2шт.

35

R25164

FASTENER

- seat mounting plate, if used

1шт.

36

R45319

LARGE PLATE

PLATE - seat mounting, uses L102515 fastener

1шт.

37

L102515

LATCH

FASTENER - R45319 seat mounting plate, if used

1шт.

38

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - no. 10 - 24 NC x 1/2"

2шт.

39

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

40

129-7

NUT,Hex, #10 - 24

- hex, no. 10 - 24 NC

2шт.
