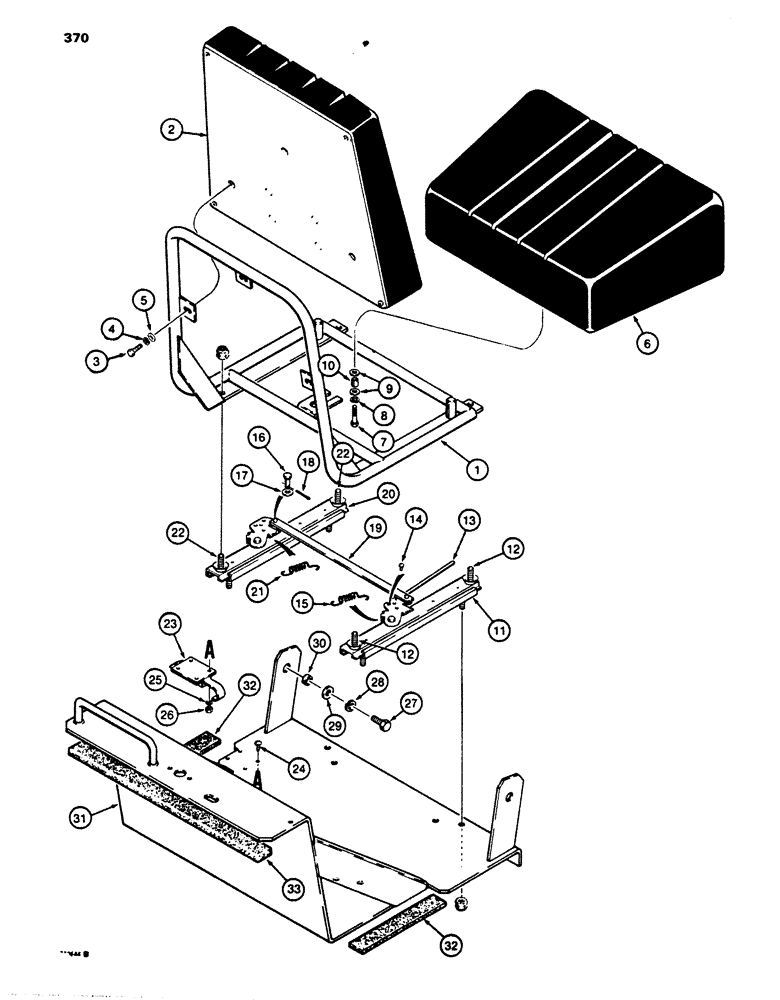

Запчасти Case 850B (370) - STANDARD SEAT ASSEMBLY, USED WITHOUT BACKHOE (05) - UPPERSTRUCTURE CHASSIS

1

R40835

SEAT SUPPORT

FRAME - seat

1шт.

2

R27596

CUSHION

- back

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

6

R39323

CUSHION

- seat

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

10

D35217

BUSHING

SPACER - seat cushion mounting

1шт.

R27894

RUNNER

SLIDE ASSEMBLY - right-hand, Includes: Ref.#s11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

13

R25577

LEVER

HANDLE - release, seat adjustment

1шт.

14

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8"

2шт.

15

A45060

SPRING

- seat adjuster

1шт.

16

141-1

CLEVIS PIN,3/16" x .580"

- 3/16" x 9/16"

2шт.

17

95-3

WASHER,#12

- flat, no. 10

2шт.

18

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

19

R35977

BAR

- locking, seat adjustment

1шт.

R40039

SLIDE

ASSEMBLY - left-hand, Includes: Ref.#s20 -22

1шт.

20

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

21

A45060

SPRING

- seat adjuster

1шт.

22

R27897

SCREW

- special (Replaces NSS)

2шт.

23

R35970

LATCH

- finger

1шт.

24

169-100

SCREW,Sl Fil Hd, #10 - 24 x 3/4"

- round head slotted, no. 10 - 24 NC x 3/4"

4шт.

25

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

26

129-7

NUT,Hex, #10 - 24

- hex, no. 10 - 24 NC

4шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

95-6

WASHER,3/8"

- flat , 3/8"

2шт.

30

R36182

SPACER

- seat mounting plate

2шт.

31

R34793

PLATE ASSY.

PLATE - seat mounting, uses R25164 fastener, see Fig. 376 for identification

1шт.

For noise reduction pad which mounts to seat mounting plate, see Fig. 382.

1шт.

31

R45330

PLATE ASSY.

PLATE - seat mounting, uses L102515 fastener, see Fig. 376 for identification

1шт.

For noise reduction pad which mounts to seat mounting plate, see Fig. 382.

1шт.

32

R37107

STRIP - foam seal

2шт.

33

R37149

STRIP - foam seal, seat support, rear

1шт.
