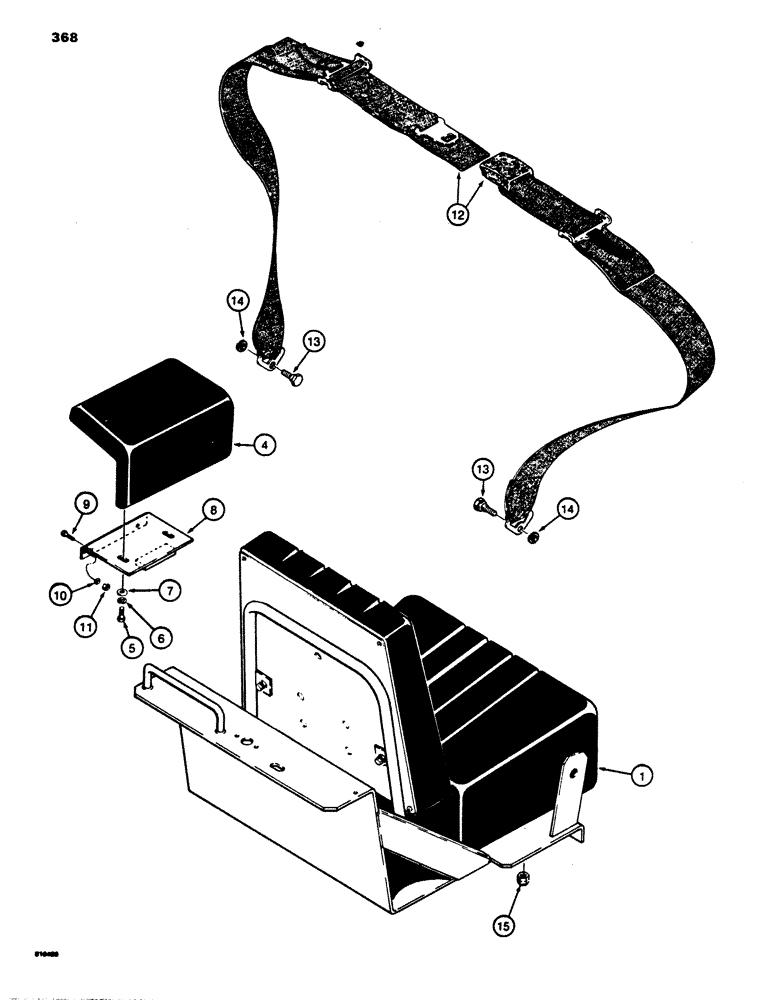

Запчасти Case 850B (368) - SEATS, ARMREST, AND SEAT BELTS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

SEAT ASSEMBLY - standard, not used on backhoe models, see parts list on Fig.370

1шт.

2

R36082

SEAT

SUSPENSION SEAT ASSEMBLY - parts list Fig. 372 , not shown

1шт.

3

REF

INSTRUCTION

SEAT ASSEMBLY - used on backhoe models, see parts list on Fig. 376, not shown

1шт.

4

R39322

CUSHION

ARMREST - seat

2шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

8

R34710

SUPPORT

PLATE - armrest mounting

2шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

25-104

NUT,1/4"-20, G5

4шт.

12

D85816

SAFETY BELT

SEAT BELT - 3" (76 mm) wide

1шт.

12

D75997

SAFETY BELT ,1.80" W

1.80" W

1шт.

13

F42236

STEP BOLT

SHOULDER BOLT - special

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC; 4 used to mount suspension seat, 8 used mount standard seat and backhoe seat

4-8шт.
