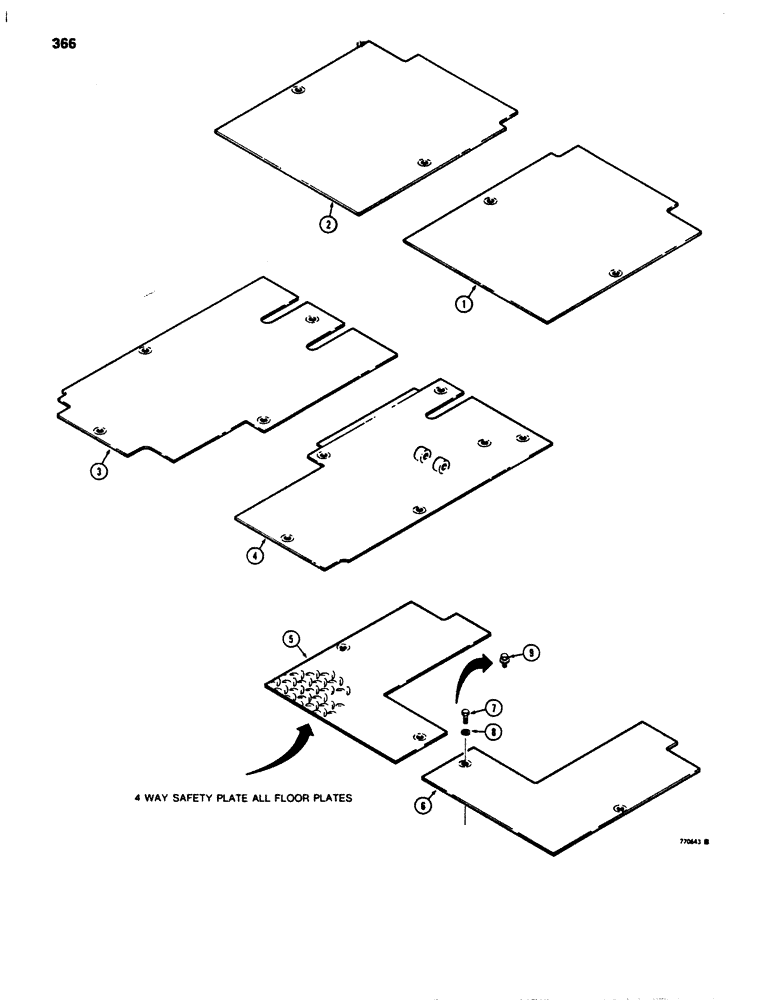

Запчасти Case 850B (366) - FLOOR PLATES (05) - UPPERSTRUCTURE CHASSIS

1

R32608

PLATE

- step, left-hand, dozer models

1шт.

2

R32609

PLATE

- step, right-hand, dozer models

1шт.

3

R32605

PLATE

- floor, left-hand

1шт.

4

R32610

PLATE ASSY.

PLATE - floor, right-hand

1шт.

5

R32607

LARGE PLATE

PLATE - step, left-hand, loader models

1шт.

6

R32606

LARGE PLATE

PLATE - step, right-hand, loader models

1шт.

7

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

No longer used, service with 121-428 flange head bolts Hex, 1/2"-13 x 1", G5, Full Thd

13шт.

8

92-8

LOCK WASHER,1/2"

hardened, no longer used 1/2"

13шт.

9

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

13шт.
