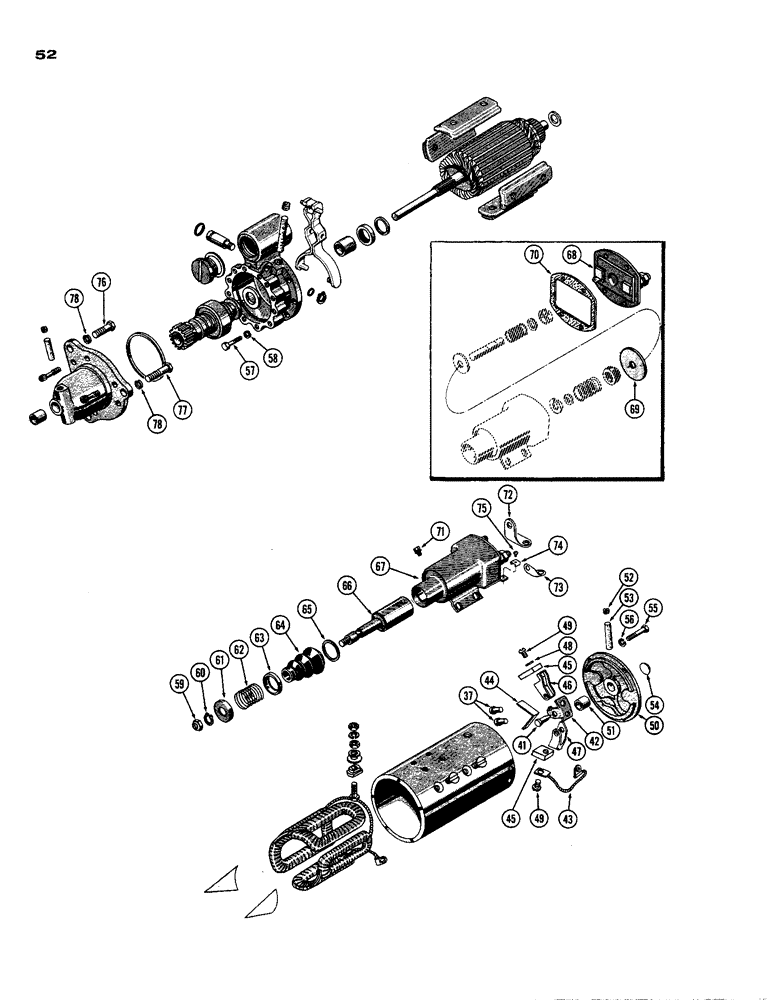

Запчасти Case 850 (052) - R20745 STARTER (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
R20745
STARTER - cont'd from Figure 50
1шт.
R15029
BRUSH
KIT - brush support (not illust.)
2шт.
37
NSS
NOT SOLD SEPARAT
RIVET - support mounting
2шт.
NSS
NOT SOLD SEPARAT
SCREW - optional to rivet (not illust.)
2шт.
NSS
NOT SOLD SEPARAT
WASHER - lock, optional to rivet (not illust.)
2шт.
NSS
NOT SOLD SEPARAT
NUT - optional to rivet (not illust.)
2шт.
41
NSS
NOT SOLD SEPARAT
PIN - brush
1шт.
42
NSS
NOT SOLD SEPARAT
SUPPORT - brush
1шт.
43
R15030
ELECTRICAL WIRE
LEAD - ground
1шт.
44
R15025
SPRING
- brush
2шт.
R4285
BRUSH, COMMUTATOR
KIT - brush (not illust.)
1шт.
45
R15024
BRUSH, COMMUTATOR
BRUSH
4шт.
46
R21590
HOLDER
- brush (Insulated)
2шт.
47
A40217
HOLDER
- brush (Ground)
2шт.
48
D32481
SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW
WASHER - internal Shakeproof
2шт.
49
187-323
SCREW
- brush attaching
4шт.
50
R21559
FRAME
- commutator end
1шт.
51
R15020
BUSHING
BRUSHING - frame
1шт.
52
221-1041
PLUG
- 1/8" P.T. sltd., hdless.
1шт.
53
R15023
WICK
- oil, frame
1шт.
54
R15021
PLUG
- expansion
1шт.
55
R21578
SCREW
- mounting, frame
4шт.
56
R15033
X
WASHER - lock
4шт.
57
R21584
BOLT - 1/4 x 1" N.F. hex.
5шт.
58
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
59
131-31
LOCK NUT,5/16"-24, G8
NUT - jam
1шт.
60
G46146
SNAP RING,#37, Ext
Ring, Snap, #37, Ext
1шт.
61
R21571
RETAINER
- spring
1шт.
62
A41242
SPRING
1шт.
63
R21572
RETAINER
- spring
1шт.
64
A42308
BOOT
1шт.
65
R21570
WASHER
- retainer
1шт.
66
A42309
PLUNGER
1шт.
67
R22915
SOLENOID SWITCH
SOLENOID
1шт.
68
D29577
PLATE - terminal
1шт.
69
D32498
CONTACT
DISC - contact
1шт.
70
A42260
GASKET
- terminal plate
1шт.
71
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
& LOCKWASHER ASSY.
4шт.
72
R21558
CONNECTOR -, Serial Range: terminal-switch
1шт.
73
R22994
CONECTOR
1шт.
74
R15182
CLIP
- terminal
4шт.
75
D32502
SCREW,Hex, #10 - 32 x 3/8"
- terminal clip, #10-32 sltd. rd. hd.
2шт.
76
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
- 1/2 x 1-3/4" N.C. hex.
2шт.
77
13-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
Hex, 1/2"-13 x 2 3/4", G5
1шт.
78
92-8
LOCK WASHER,1/2"
3шт.
