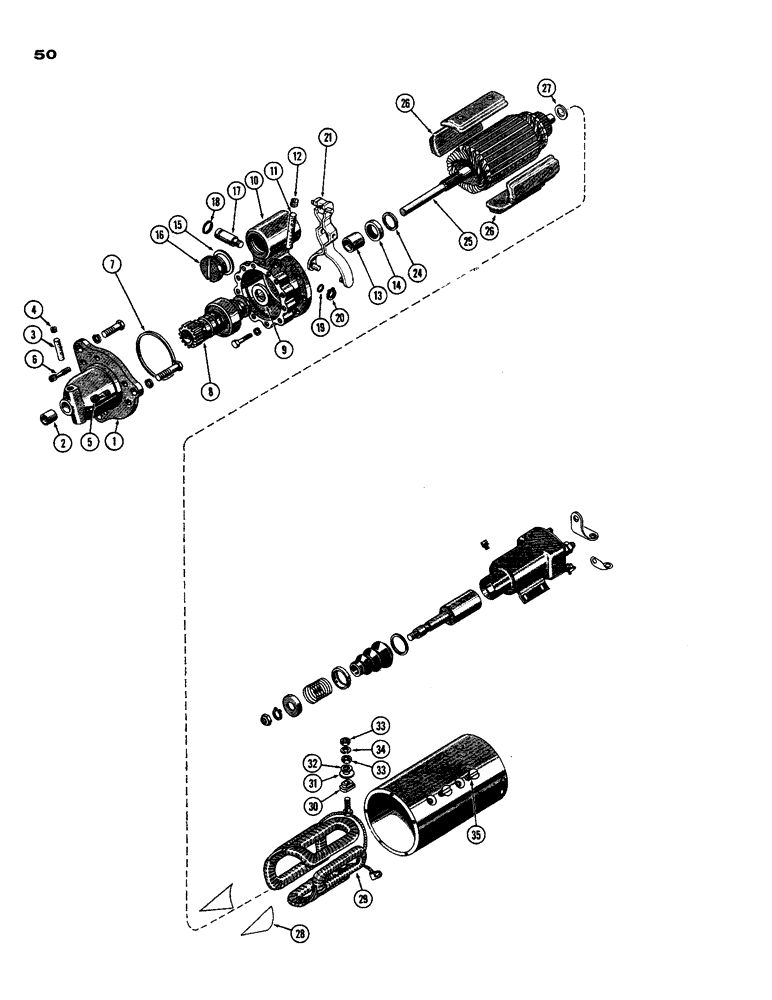

Запчасти Case 850 (050) - R20745 STARTER, (301) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

R20745

STARTER - (Delco Remy #113371) (Production Only) (Order A15485) (See Figure 54)

1шт.

1

A40283

HOUSING

- drive

1шт.

2

A40893

BUSHING

- drive housing

1шт.

3

R15023

WICK

- oil

1шт.

4

221-1041

PLUG

- 1/8" P.T. sltd., hdless.

1шт.

5

R21565

X

SCREW - 5/16 x 1-1/2" N.C. special

5шт.

6

R21566

SCREW - 5/16 x 7/8" N.C. special

1шт.

7

R21562

GASKET

- drive housing

1шт.

8

A42397

DRIVE

CLUTCH - drive, starter (Replaced R21589)

1шт.

9

R15145

DISC

WASHER - brake

1шт.

10

R21579

HOUSING

- lever

1шт.

11

R21581

X

WICK - oil

1шт.

12

221-1041

PLUG

- 1/8" P.T., sltd., hdless.

1шт.

13

R21580

BUSHING

1шт.

14

R21582

OIL SEAL

- oil

1шт.

15

R21588

GASKET - plug

1шт.

16

R21587

PLUG

- lever housing

1шт.

17

A42199

PIN

SHAFT - lever pivot

1шт.

18

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O"RING - seal

1шт.

19

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O"RING - seal

1шт.

20

G46146

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

21

D32547

LEVER

& GUIDE ASSY. - shift

1шт.

24

R21583

WASHER

- spacer

1шт.

25

A40909

ARMATURE

1шт.

26

R15115

SHOE

- pole

4шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- spacer, commutator end

1шт.

28

R15018

X

INSULATOR - field coil

2шт.

29

R21557

COIL ASSY.

- field

1шт.

30

R15010

BUSHING

- insulating, terminal stud

1шт.

31

A42010

WASHER

- insulating, terminal stud

1шт.

32

R15013

WASHER

- terminal stud

1шт.

33

R15014

NUT

- terminal stud

2шт.

34

192-111

WASHER,3/8"

- lock, 3/8"

1шт.

35

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoe, 3/8 x 5/8" N.F. flat hd.

8шт.
