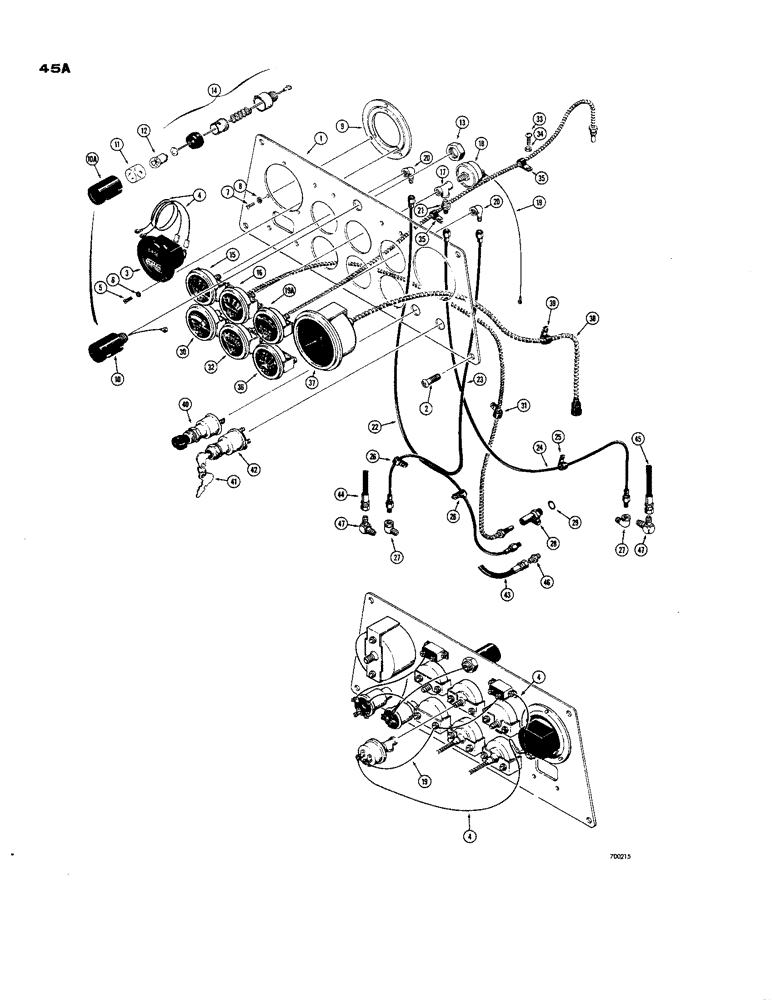

Запчасти Case 850 (045A) - OIL PRESSURE GAUGES WITH HOSES, INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

D41010

PANEL

- instrument

1шт.

2

174-205

SCREW,Phil Rnd Hd, 5/16" - 24 x 7/8"

RHMS - 5/16" - 24 NF x 7/8"

4шт.

R24646

ELECTRICAL GAUGE

KIT - meter (Replaced D39287)

1шт.

3

NSS

NOT SOLD SEPARAT

METER - engine hour

1шт.

4

D39285

ELECTRICAL WIRE

WIRE - hour meter (36" long)

2шт.

D39284

KIT

PACKAGE - mounting hardware

1шт.

5

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 23 NC x 1/2"

3шт.

6

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

7

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/3" (Zinc plated)

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

9

D35079

DAMPER

DAMPENER - vibration

1шт.

10

D35815

LAMP

- dash

1шт.

10a

D37918

COVER

- lamp

1шт.

11

D37919

LENS

- lamp

1шт.

12

R19897

BULB

- lamp

1шт.

13

D39095

NUT

- hex., special

1шт.

14

NSS

NOT SOLD SEPARAT

BODY AND WIRE - lamp

1шт.

15

R15953

GAUGE

- torque converter oil pressure

1шт.

16

D22853

GAUGE

- engine oil pressure

1шт.

17

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, female (1/8" NPT)

1шт.

18

D28798

SWITCH

- pressure

1шт.

19

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

19a

D29570

GAUGE

- transmission oil pressure

1шт.

20

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

- female, 90 deg. (D95003 and D95004 hoses)

2шт.

21

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, female (D95006 hose)

1шт.

22

D95003

HOSE

- oil pressure, torque coverter (When stock is exhausted, use D95113 hose and 218-441 connector)

1шт.

23

D95004

HOSE

- oil pressure, transmission (When stock is exhausted, use D95114 hose and 218-441 connector)

1шт.

24

D95006

HOSE

- oil pressure, engine (When stock is exhausted, use D95116 hose and 218-441 connector)

1шт.

25

49836

CLAMP

- engine oil pressure hose

1шт.

26

49838

CLAMP

- converter and transmission oil pressure hoses

2шт.

27

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, male (D95004 and D95006 hoses) 90º, 1/8"-27, NPT

2шт.

28

D44004

FITTING

TEE - special (D95003 hose)

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

30

D44005

ELECTRICAL GAUGE

GAUGE - torque converter temperature

1шт.

31

49859

CLAMP

- torque converter temperature cable

1шт.

32

D22768

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

33

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

RHMS - 1/4" - 20 NC x 2-1/4"

2шт.

34

195-29

WASHER,7/16"

- plain () 7/16"

2шт.

35

49832

CLAMP

- water temperature cable

2шт.

36

R18748

AMMETER

GAUGE - ammeter

1шт.

37

D38122

TACHOMETER

- engine R.P.M.

1шт.

38

D48095

CABLE

- tachometer

1шт.

39

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tachometer cable

1шт.

40

D35065

SWITCH

- light

1шт.

D35092

SWITCH

AND KEY - electrical

1шт.

41

D36822

KEY

- set of two

1шт.

42

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

43

D95113

HOSE

- oil pressure, torque converter, on tractor 7073431 & after

1шт.

44

D95114

HOSE

- oil pressure, transmission, on tractor 7073431 & after

1шт.

45

D95116

HOSE

- oil pressure, engine, on tractor 7073431 & after

1шт.

46

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, male (D95113 hose), on tractor 7073431 & after

1шт.

47

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 deg., male (D95114 and D95116 hose), on tractor 7073431 & after

2шт.

R30305

CABLE

hose on tractor 7073431 & after

1шт.
