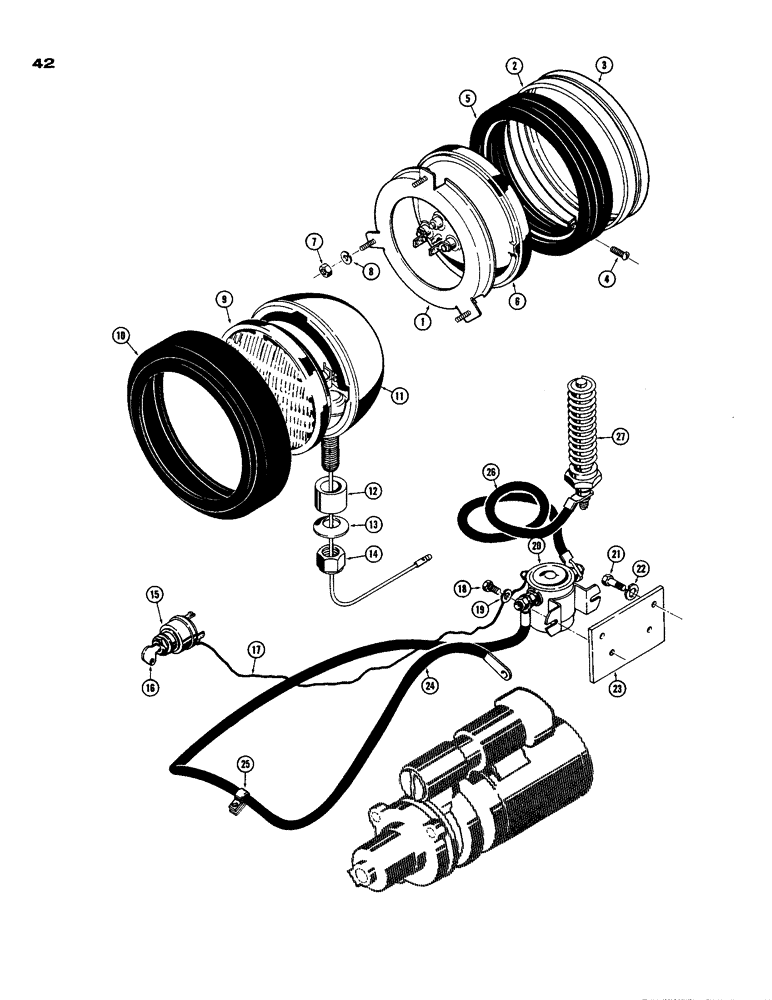

Запчасти Case 850 (042) - D41701 HEADLIGHT ASSEMBLY (06) - ELECTRICAL SYSTEMS

D41701

LAMP

HEADLIGHT ASSEMBLY - 24 volt

2шт.

1

NSS

NOT SOLD SEPARAT

FRAME - light

1шт.

2

A40693

HUB CAP

RETAINING RING - light, rear

1шт.

3

A40694

RETAINER

RETAINING RING - light, front

1шт.

4

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS - #10 - 24 NC X 3/4" (Zinc plated)

2шт.

5

A40695

RING

RETAINER - light, rubber

1шт.

6

D37920

LAMP

LIGHT - sealed beam, 24 volt

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

6шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

D35913

LAMP

TAILLIGHT ASSEMBLY - 24 volt

1шт.

9

D37920

LAMP

LIGHT - sealed beam, 24 volt, D35913 taillight assembly

1шт.

10

A25210

MOUNTING PARTS

RETAINER - light, rubber, D35913 taillight assembly

1шт.

11

NSS

NOT SOLD SEPARAT

SHELL - light, D35913 taillight assembly

1шт.

12

D37048

BUSHING

D35913 taillight assembly

1шт.

13

D37049

WASHER

- special, D35913 taillight assembly

1шт.

14

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), D35913 taillight assembly

1шт.

D35092

SWITCH

AND KEY - electrical, engine pre heater

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH - electrical, engine pre heater

1шт.

16

D36822

KEY

- switch, set, engine pre heater

1шт.

17

F12860

WIRE - electrical switch to solenoid (32" long), engine pre heater

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Engine pre heater Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine pre heater 1/4"

2шт.

20

D31479

SOLENOID SWITCH

SWITCH - solenoid, pre-heater, engine

1шт.

20a

D31548

ELECTRICAL WIRE

WIRE - ground, solenoid (Not shown), engine pre heater

1шт.

21

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 HC x 1/2", engine pre heater

2шт.

22

92-6

LOCK WASHER,3/8"

engine pre heater 3/8"

2шт.

23

A304047

BRACKET - solenoid mounting, engine pre heater

1шт.

24

D32643

CABLE

- starter to solenoid (36" long), engine pre heater

1шт.

25

49836

CLAMP

- cable, engine pre heater

1шт.

26

A21483

CABLE

- solenoid to pre-heater element (23-1/2" long), engine

1шт.

27

A34278

HEATER

ELEMENT - manifold pre-heater, 24 volt, engine

1шт.
