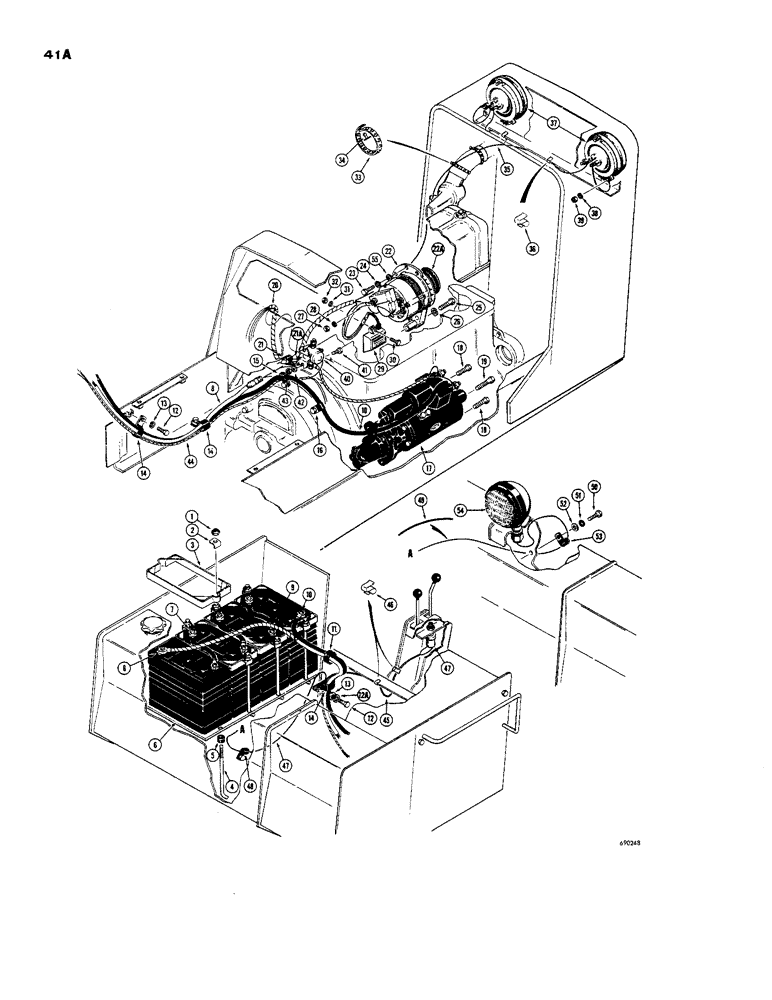

Запчасти Case 850 (041A) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

47

D34924

SWITCH

- push button starter

1шт.

48

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at seat and tank

1шт.

49

NLS

NO LONGER SERVICED

LOOM - taillight wire

1шт.

50

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

51

92-8

LOCK WASHER,1/2"

1шт.

52

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

53

49832

CLAMP

- wire, at seat and tank

1шт.

54

D35913

LAMP

TAILLIGHT - 24 volt (Parts list page 43)

1шт.

55

A27343

BUSHING

WASHER - special (5/16")

1шт.
