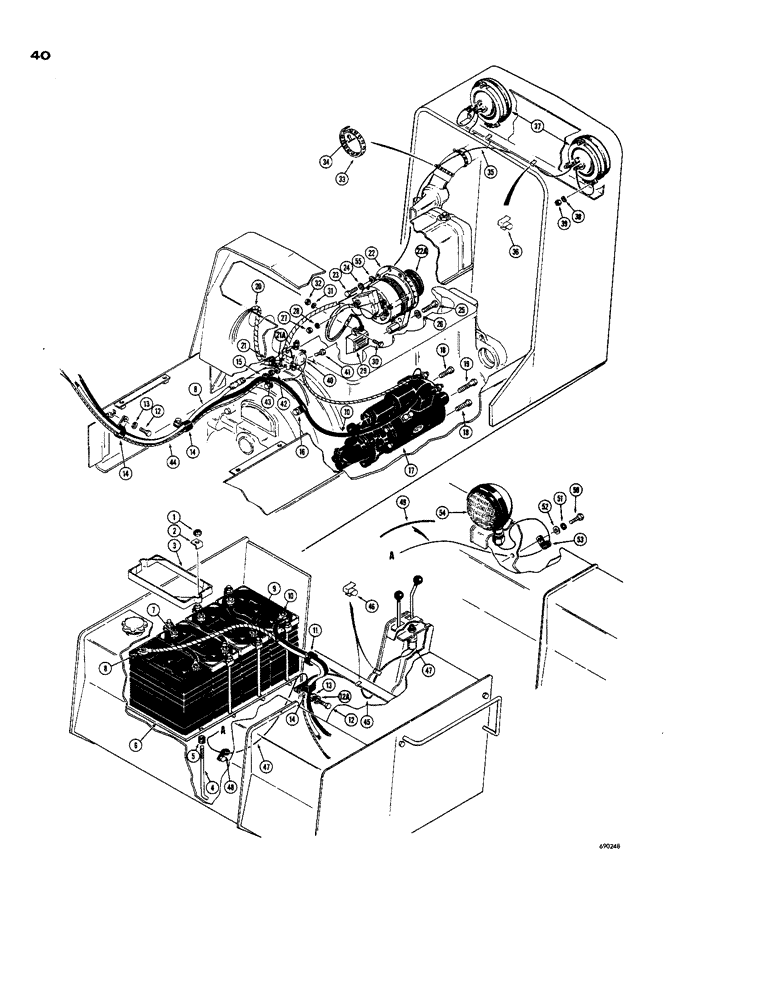

Запчасти Case 850 (040) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

8шт.

2

D29453

CLIP

- hold down

8шт.

3

D41571

NO LONGER SERVICED

FRAME - battery hold down

4шт.

4

D39624

STUD

- battery hold down

8шт.

5

G46096

RETAINER

- stud, rubber

8шт.

6

A37472

BATTERY - dry type, 6 volt (When stock is exhausted, order D44313 battery for service)

4шт.

D44313

BATTERY - dry type, 6 volt

4шт.

7

72176

CABLE

- battery, jumper

3шт.

8

32375

CABLE

- batery, ground (Negative)

1шт.

9

D39621

NO LONGER SERVICED

WRAP - ground cable

1шт.

10

D35910

CABLE

- battery, hot (Positive)

1шт.

11

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- battery cable

1шт.

12

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

12a

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

13

92-8

LOCK WASHER,1/2"

1шт.

14

51200320

CLAMP

- cable, at seat and tank and cowl side plate

3шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- cable, at torque converter housing

1шт.

16

49838

CLAMP

- cable, at torque converter housing

1шт.

17

R20745

STARTER - electrical, engine (Parts list Figure 50) Order A15485 starter for service (Delco Remy 1113371)

1шт.

A15485

STARTING MOTOR

STARTER - electrical, engine (Parts list Figure 54) Service repalcement (Delco Remy 1113370)

1шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

19

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

20

D39623

HARNESS

- wiring, main

1шт.

21

49854

CLAMP

- harness

1шт.

21a

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

22

A41360

ALTERNATOR

- electrical (Parts list Figure 48)

1шт.

22a

A41361

PULLEY

- alternator

1шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

3шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

29

D41431

REGULATOR

REGUALTOR - voltage

1шт.

30

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

32

25-104

NUT,1/4"-20, G5

3шт.

33

D41077

STRAP

- retainer, headlight wire

2шт.

34

D41075

STUD

- strap mounting

2шт.

35

D35912

ELECTRICAL WIRE

WIRE - headlight

1шт.

36

F43611

CLIP

CLAMP - wire

2шт.

37

D41701

LAMP

HEADLIGHT - 24 volt (Parts list Figure 42)

2шт.

38

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

39

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

6шт.

40

A18501

SOLENOID SWITCH

SWITCH - solenoid, electrical switch to starter (When stock is exhausted, order D31479 switch for service)

1шт.

D31479

SOLENOID SWITCH

SWITCH - solenoid, electrical

1шт.

41

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

25-104

NUT,1/4"-20, G5

2шт.

44

D39622

HARNESS - taillight and strter button

1шт.

45

D39130

ELECTRICAL WIRE

WIRE - starter switch

1шт.

46

F43611

CLIP

CLAMP - wire, at seat brace and control tower

2шт.
